Dell Inc. PowerEdge M710HD ssj_ops@100% = 947,508
ssj_ops@100% per JVM = 473,754
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Multi Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Aug 30, 2011
Hardware Availability: Feb-2011 Software Availability: Apr-2011 Publication: Sep 21, 2011
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     956,300
Calibration 2     964,082
Calibration 3     948,439
ssj_ops@calibrated=956,261
100% 99.1% 956,261 947,508
90% 90.0% 860,635 860,753
80% 80.0% 765,008 765,099
70% 70.0% 669,382 669,089
60% 59.9% 573,756 572,682
50% 50.0% 478,130 477,869
40% 40.3% 382,504 385,019
30% 30.1% 286,878 287,504
20% 20.0% 191,252 191,159
10% 10.0% 95,626 95,527
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: PowerEdge M710HD
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge M710HD
Form Factor: Blade
CPU Name: Intel Xeon X5675 (3.06 GHz)
CPU Characteristics: 6 Core, 3.06 GHz, 12 MB L3 Cache
CPU Frequency (MHz): 3060
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 12 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC RDIMM, Slots A1, A2, A3, B1, B2, B3 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 50 GB 2.5" SSD SATA (Dell PN X2N7H)
Disk Controller: PERC H200 Modular
# and type of Network Interface Cards (NICs) Installed: 2 x onboard dual-port 1 Gigabit Ethernet
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver Mode in OS (See Notes)
Operating System (OS): Windows 2008 Server Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_25
JVM Command-line Options: -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=55 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start /affinity [FFF, FFF000]
JVM Instances: 2
JVM Initial Heap (MB): 6144
JVM Maximum Heap (MB): 6144
JVM Address Bits: 64
Boot Firmware Version: 3.0.1
Management Firmware Version: iDRAC 3.21 build 48
Workload Version: SSJ 1.2.6
Director Location: Controller
Other Software: None
Boot Firmware Settings
  • Disabled Adjacent Cache Line Prefetch in BIOS.
  • Disabled Hardware Prefetcher in BIOS.
  • Disabled DCU Streamer Prefetcher in BIOS.
  • Disabled Data Reuse in BIOS
  • Disabled Turbo Mode in BIOS
  • Memory Speed set to 1066MHz in BIOS.
  • DAPC Mode Enabled.
    • Management Firmware Settings
    none
    System Under Test Notes
    Notes
    None
    JVM Instance Summary
    JVM Instance ssj_ops@100%
    m710hd-14.001 475,812
    m710hd-14.002 471,695
    ssj_ops@100% 947,508
    ssj_ops@100% per JVM 473,754
    Graph of per-instance results

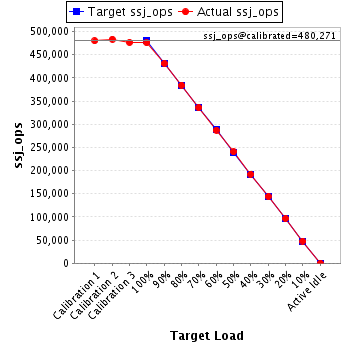

    JVM 'm710hd-14.001' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     479,927
    Calibration 2     483,693
    Calibration 3     476,849
    ssj_ops@calibrated=480,271
    100% 99.1% 480,271 475,812
    90% 89.8% 432,244 431,198
    80% 80.0% 384,217 384,381
    70% 69.9% 336,190 335,857
    60% 59.8% 288,163 287,240
    50% 50.0% 240,136 240,308
    40% 40.1% 192,108 192,530
    30% 30.0% 144,081 144,140
    20% 20.1% 96,054 96,532
    10% 10.0% 48,027 48,020
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
    JVM 'm710hd-14.002' Scores:
    Target Load Actual Load ssj_ops
    Target Actual
    Calibration 1     476,373
    Calibration 2     480,389
    Calibration 3     471,590
    ssj_ops@calibrated=475,989
    100% 99.1% 475,989 471,695
    90% 90.2% 428,390 429,555
    80% 80.0% 380,792 380,718
    70% 70.0% 333,193 333,232
    60% 60.0% 285,594 285,441
    50% 49.9% 237,995 237,560
    40% 40.4% 190,396 192,489
    30% 30.1% 142,797 143,364
    20% 19.9% 95,198 94,628
    10% 10.0% 47,599 47,507
    Active Idle   0 0
    Graph of results
    See the JVM Instance Performance Report for additional details.
