SPECpower_ssj2008
Host 'SL170sG6-3' Performance Report
Copyright © 2007-2011 Standard Performance Evaluation Corporation
| Hewlett-Packard Company ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) | ssj_ops@100% = 917,391 ssj_ops@100% per JVM = 458,696 |
||||
| Test Sponsor: | Hewlett-Packard Company | SPEC License #: | 3 | Test Method: | Multi Node |
| Tested By: | Hewlett-Packard Company | Test Location: | Houston, TX, USA | Test Date: | Jun 8, 2011 |
| Hardware Availability: | Feb-2011 | Software Availability: | May-2011 | Publication: | Oct 4, 2011 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 921,161 | ||
| Calibration 2 | 919,197 | ||
| Calibration 3 | 918,705 | ||
| ssj_ops@calibrated=918,951 | |||
| 100% | 99.8% | 918,951 | 917,391 |
| 90% | 89.9% | 827,056 | 825,758 |
| 80% | 80.0% | 735,161 | 735,306 |
| 70% | 70.3% | 643,266 | 645,583 |
| 60% | 60.1% | 551,371 | 552,475 |
| 50% | 50.0% | 459,475 | 459,136 |
| 40% | 39.9% | 367,580 | 367,033 |
| 30% | 30.1% | 275,685 | 276,944 |
| 20% | 20.2% | 183,790 | 186,065 |
| 10% | 10.0% | 91,895 | 91,466 |
| Active Idle | 0 | 0 | |
| Set Identifier: | SUT |
| Set Description: | System Under Test |
| # of Identical Nodes: | 8 |
| Comment: | N/A |
| Hardware | |
|---|---|
| Hardware Vendor: | Hewlett-Packard Company |
| Model: | ProLiant SL170s G6 (3.06 GHz, Intel Xeon X5675 processor) |
| Form Factor: | Blade |
| CPU Name: | Intel Xeon X5675 |
| CPU Characteristics: | 6 Core, 3.06 GHz, 12 MB L3 Cache |
| CPU Frequency (MHz): | 3067 |
| CPU(s) Enabled: | 12 cores, 2 chips, 6 cores/chip |
| Hardware Threads: | 24 (2 / core) |
| CPU(s) Orderable: | 1,2 chips |
| Primary Cache: | 32 KB I + 32 KB D on chip per core |
| Secondary Cache: | 256 KB I+D on chip per core |
| Tertiary Cache: | 12 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 16 |
| # and size of DIMM: | 4 x 4 GB |
| Memory Details: | 4 GB 2Rx8 PC3L-10600E-9, ECC, slots 1 & 4 are populated on each processor |
| Power Supply Quantity and Rating (W): | None |
| Power Supply Details: | N/A |
| Disk Drive: | 1 x 120 GB SATA SSD, Part Number: 586587-B21 |
| Disk Controller: | Integrated SATA |
| # and type of Network Interface Cards (NICs) Installed: | 1 x Embedded HP NC382i Dual-Port Multifunction Gigabit Server Adapter |
| NICs Enabled in Firmware / OS / Connected: | 2/2/1 |
| Network Speed (Mbit): | 1000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software | |
|---|---|
| Power Management: | Enabled (See SUT Notes) |
| Operating System (OS): | Windows Server 2008 x64 Enterprise Edition |
| OS Version: | R2 SP1 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java SE Runtime Environment (build 1.6.0_25-b06), Java HotSpot 64-Bit Server VM (build 20.0-b11, mixed mode) |
| JVM Command-line Options: | -server -Xmx6g -Xms6g -Xmn5g -XX:SurvivorRatio=65 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=8 -XX:AllocatePrefetchDistance=192 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=5500 -XX:MaxInlineSize=220 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts |
| JVM Affinity: | start /affinity [FFF, FFF000] |
| JVM Instances: | 2 |
| JVM Initial Heap (MB): | 6144 |
| JVM Maximum Heap (MB): | 6144 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | O40 4/26/2011 |
| Management Firmware Version: | 4.22 2/7/2011 |
| Workload Version: | SSJ 1.2.6 |
| Director Location: | Controller |
| Other Software: | None |
| JVM Instance | ssj_ops@100% |
|---|---|
| SL170sG6-3.001 | 456,733 |
| SL170sG6-3.002 | 460,658 |
| ssj_ops@100% | 917,391 |
| ssj_ops@100% per JVM | 458,696 |

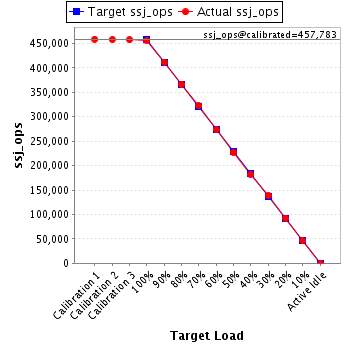

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 458,904 | ||
| Calibration 2 | 458,159 | ||
| Calibration 3 | 457,408 | ||
| ssj_ops@calibrated=457,783 | |||
| 100% | 99.8% | 457,783 | 456,733 |
| 90% | 90.0% | 412,005 | 412,100 |
| 80% | 80.0% | 366,227 | 366,221 |
| 70% | 70.5% | 320,448 | 322,748 |
| 60% | 59.9% | 274,670 | 274,010 |
| 50% | 49.7% | 228,892 | 227,439 |
| 40% | 39.9% | 183,113 | 182,767 |
| 30% | 30.2% | 137,335 | 138,456 |
| 20% | 20.2% | 91,557 | 92,387 |
| 10% | 10.0% | 45,778 | 45,927 |
| Active Idle | 0 | 0 | |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 462,257 | ||
| Calibration 2 | 461,038 | ||
| Calibration 3 | 461,297 | ||
| ssj_ops@calibrated=461,167 | |||
| 100% | 99.9% | 461,167 | 460,658 |
| 90% | 89.7% | 415,051 | 413,658 |
| 80% | 80.0% | 368,934 | 369,085 |
| 70% | 70.0% | 322,817 | 322,835 |
| 60% | 60.4% | 276,700 | 278,465 |
| 50% | 50.2% | 230,584 | 231,697 |
| 40% | 40.0% | 184,467 | 184,266 |
| 30% | 30.0% | 138,350 | 138,488 |
| 20% | 20.3% | 92,233 | 93,678 |
| 10% | 9.9% | 46,117 | 45,539 |
| Active Idle | 0 | 0 | |
