Supermicro SYS-7047R-72RF SPECpower_ssj2008 = 3,145 overall ssj_ops/watt
Test Sponsor: Supermicro SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Test Location: San Jose, CA, USA Test Date: May 26, 2012
Hardware Availability: Apr-2012 Software Availability: Jan-2012 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 332 22.4
Calibration 2 332 21.6
Calibration 3 332 21.3
100% 331 22.1
90% 316 22.9
80% 300 22.4
70% 277 21.7
60% 234 21.0
50% 201 20.3
40% 174 20.6
30% 153 20.9
20% 138 21.7
10% 125 22.6
Active Idle 102 22.2

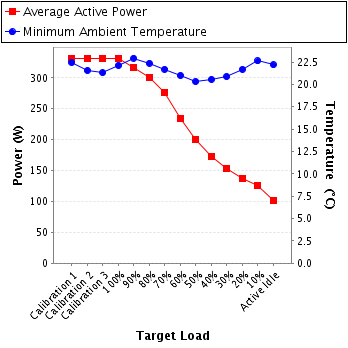

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA
Model: WT210
Serial Number: 91J523226
Connectivity: COM1
Input Connection: Default
Metrology Institute: NIST
Accredited by: SE Laboratories
Calibration Label: C56-0089
Date of Calibration: 07-Jan-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.1-1271fb18-20110728
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 4.50.0.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 209 300.0 1.63 2.0 0.973 332 0.3%
Calibration 2 209 300.0 1.64 2.0 0.973 332 0.3%
Calibration 3 209 300.0 1.63 2.0 0.973 332 0.3%
100% 209 300.0 1.63 2.0 0.973 331 0.3%
90% 209 300.0 1.56 2.0 0.971 316 0.3%
80% 209 300.0 1.48 2.0 0.969 300 0.4%
70% 209 300.0 1.37 2.0 0.966 277 0.4%
60% 208 300.0 1.17 2.0 0.961 234 0.4%
50% 208 300.0 1.01 2.0 0.952 201 0.5%
40% 209 300.0 0.881 2.0 0.942 174 0.5%
30% 209 300.0 0.784 1.0 0.934 153 0.4%
20% 209 300.0 0.713 1.0 0.927 138 0.4%
10% 209 300.0 0.652 1.0 0.920 125 0.4%
Active Idle 208 300.0 0.547 1.0 0.899 102 0.5%

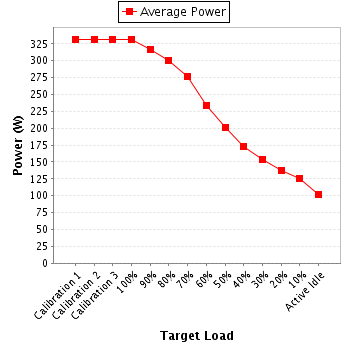

Power details for pwr1
