Huawei Technologies Co., Ltd RH2288 V2 ssj_ops@100% = 1,034,209
ssj_ops@100% per JVM = 172,368
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Jun 2, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Jun 28, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     983,237
Calibration 2     1,033,984
Calibration 3     1,029,230
ssj_ops@calibrated=1,031,607
100% 100.3% 1,031,607 1,034,209
90% 91.4% 928,446 942,696
80% 80.2% 825,286 826,863
70% 70.1% 722,125 723,001
60% 59.9% 618,964 617,980
50% 50.0% 515,803 516,035
40% 40.1% 412,643 413,647
30% 29.8% 309,482 307,685
20% 19.9% 206,321 205,730
10% 10.1% 103,161 103,784
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Huawei Technologies Co., Ltd
Model: RH2288 V2
Form Factor: 2U
CPU Name: Intel Xeon E5-2640
CPU Characteristics: 6-Core, 2.50 GHz, 15 MB L3 Cache (Turbo Boost Technology up to 3.0 GHz)
CPU Frequency (MHz): 2500
CPU(s) Enabled: 12 cores, 2 chips, 6 cores/chip
Hardware Threads: 24 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 15 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 8 x 4 GB
Memory Details: 4GB 2Rx8 PC3L-10600R ECC
Power Supply Quantity and Rating (W): 1 x 460
Power Supply Details: Huawei S/N:1138000239
Disk Drive: 1 x 160GB SSD 2.5" SATA, Huawei P/N 02310KSX
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Dual-port Intel 82580 Gigabit Ethernet controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver enabled in OS
Operating System (OS): Microsoft Windows Server 2008 Enterprise x64 Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -server -Xmx1600m -Xms1600m -Xmn1200m -XX:ParallelGCThreads=2 -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:LoopUnrollLimit=45 -XX:+UseCompressedStrings -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /affinity [0xF,0xF0,0xF00,0xF000,0xF0000,0xF00000,]
JVM Instances: 6
JVM Initial Heap (MB): 1600
JVM Maximum Heap (MB): 1600
JVM Address Bits: 64
Boot Firmware Version: V016
Management Firmware Version: 3.02
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 24 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-2QNA1OPHAK0.001 173,451
WIN-2QNA1OPHAK0.002 170,215
WIN-2QNA1OPHAK0.003 172,918
WIN-2QNA1OPHAK0.004 174,882
WIN-2QNA1OPHAK0.005 170,837
WIN-2QNA1OPHAK0.006 171,906
ssj_ops@100% 1,034,209
ssj_ops@100% per JVM 172,368

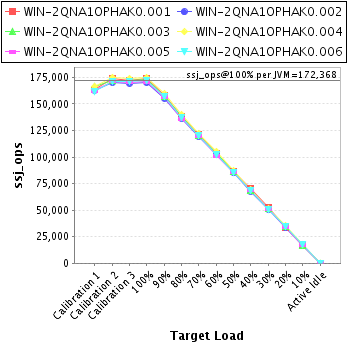

Graph of per-instance results
JVM 'WIN-2QNA1OPHAK0.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     163,412
Calibration 2     173,556
Calibration 3     172,033
ssj_ops@calibrated=172,794
100% 100.4% 172,794 173,451
90% 91.4% 155,515 157,973
80% 79.9% 138,235 138,116
70% 70.1% 120,956 121,122
60% 60.0% 103,677 103,635
50% 50.2% 86,397 86,751
40% 40.8% 69,118 70,564
30% 30.3% 51,838 52,419
20% 19.6% 34,559 33,791
10% 10.2% 17,279 17,675
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,935
Calibration 2     170,135
Calibration 3     169,578
ssj_ops@calibrated=169,857
100% 100.2% 169,857 170,215
90% 91.5% 152,871 155,415
80% 80.4% 135,885 136,557
70% 70.2% 118,900 119,174
60% 60.4% 101,914 102,589
50% 50.1% 84,928 85,077
40% 40.0% 67,943 67,888
30% 29.8% 50,957 50,655
20% 19.9% 33,971 33,770
10% 9.9% 16,986 16,896
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     165,953
Calibration 2     172,314
Calibration 3     171,958
ssj_ops@calibrated=172,136
100% 100.5% 172,136 172,918
90% 91.2% 154,922 157,009
80% 80.4% 137,709 138,446
70% 69.8% 120,495 120,176
60% 59.9% 103,281 103,090
50% 50.1% 86,068 86,314
40% 39.8% 68,854 68,471
30% 29.8% 51,641 51,322
20% 20.0% 34,427 34,370
10% 9.7% 17,214 16,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     166,614
Calibration 2     175,130
Calibration 3     174,299
ssj_ops@calibrated=174,714
100% 100.1% 174,714 174,882
90% 91.2% 157,243 159,366
80% 80.3% 139,772 140,271
70% 70.1% 122,300 122,521
60% 60.3% 104,829 105,393
50% 49.8% 87,357 87,068
40% 39.9% 69,886 69,749
30% 29.3% 52,414 51,227
20% 20.1% 34,943 35,170
10% 10.2% 17,471 17,864
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     162,509
Calibration 2     171,420
Calibration 3     170,320
ssj_ops@calibrated=170,870
100% 100.0% 170,870 170,837
90% 91.5% 153,783 156,395
80% 79.7% 136,696 136,199
70% 70.1% 119,609 119,788
60% 59.3% 102,522 101,282
50% 50.1% 85,435 85,568
40% 40.2% 68,348 68,646
30% 30.0% 51,261 51,265
20% 19.9% 34,174 33,999
10% 10.0% 17,087 17,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-2QNA1OPHAK0.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     161,814
Calibration 2     171,428
Calibration 3     171,043
ssj_ops@calibrated=171,236
100% 100.4% 171,236 171,906
90% 91.4% 154,112 156,537
80% 80.2% 136,988 137,275
70% 70.2% 119,865 120,220
60% 59.6% 102,741 101,992
50% 49.8% 85,618 85,257
40% 39.9% 68,494 68,329
30% 29.7% 51,371 50,796
20% 20.2% 34,247 34,629
10% 10.2% 17,124 17,466
Active Idle   0 0

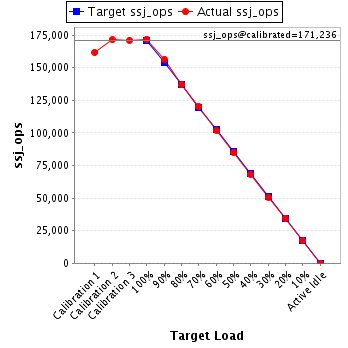

Graph of results
See the JVM Instance Performance Report for additional details.
