Hitachi, Ltd. HA8000/RS210-hHM ssj_ops@100% = 1,394,450
ssj_ops@100% per JVM = 174,306
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 15, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,389,593
Calibration 2     1,397,729
Calibration 3     1,399,227
ssj_ops@calibrated=1,398,478
100% 99.7% 1,398,478 1,394,450
90% 90.0% 1,258,630 1,259,013
80% 80.1% 1,118,783 1,120,874
70% 70.0% 978,935 978,285
60% 59.9% 839,087 838,165
50% 49.8% 699,239 695,777
40% 39.9% 559,391 557,589
30% 30.0% 419,543 419,531
20% 19.9% 279,696 278,795
10% 10.1% 139,848 141,635
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS210-hHM
Form Factor: 1U
CPU Name: Intel Xeon E5-2670
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 800
Power Supply Details: DELTA DPS-800QB_A (Hitachi P/N:GQ-BP2361)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5718 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: MH.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KLD90F6RKSL.001 175,092
WIN-KLD90F6RKSL.002 177,845
WIN-KLD90F6RKSL.003 174,386
WIN-KLD90F6RKSL.004 175,270
WIN-KLD90F6RKSL.005 172,999
WIN-KLD90F6RKSL.006 172,737
WIN-KLD90F6RKSL.007 172,944
WIN-KLD90F6RKSL.008 173,177
ssj_ops@100% 1,394,450
ssj_ops@100% per JVM 174,306

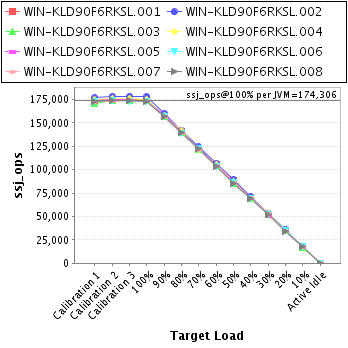

Graph of per-instance results
JVM 'WIN-KLD90F6RKSL.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,795
Calibration 2     174,423
Calibration 3     175,366
ssj_ops@calibrated=174,895
100% 100.1% 174,895 175,092
90% 89.5% 157,405 156,553
80% 80.4% 139,916 140,680
70% 70.0% 122,426 122,396
60% 60.6% 104,937 105,904
50% 50.5% 87,447 88,377
40% 40.1% 69,958 70,160
30% 29.8% 52,468 52,105
20% 19.8% 34,979 34,584
10% 10.2% 17,489 17,879
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,855
Calibration 2     178,097
Calibration 3     178,454
ssj_ops@calibrated=178,275
100% 99.8% 178,275 177,845
90% 89.8% 160,448 160,076
80% 79.7% 142,620 142,119
70% 69.8% 124,793 124,413
60% 59.7% 106,965 106,480
50% 50.0% 89,138 89,145
40% 40.0% 71,310 71,236
30% 30.0% 53,483 53,489
20% 20.5% 35,655 36,496
10% 10.1% 17,828 17,941
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     170,998
Calibration 2     173,387
Calibration 3     173,863
ssj_ops@calibrated=173,625
100% 100.4% 173,625 174,386
90% 90.5% 156,263 157,072
80% 80.6% 138,900 139,902
70% 70.0% 121,538 121,605
60% 60.3% 104,175 104,767
50% 49.3% 86,813 85,674
40% 39.8% 69,450 69,069
30% 30.4% 52,088 52,708
20% 20.1% 34,725 34,874
10% 9.8% 17,363 17,048
Active Idle   0 0

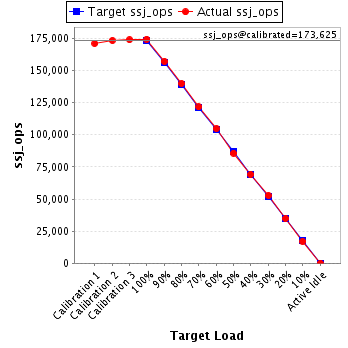

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,586
Calibration 2     175,535
Calibration 3     175,896
ssj_ops@calibrated=175,715
100% 99.7% 175,715 175,270
90% 89.8% 158,144 157,750
80% 80.5% 140,572 141,434
70% 69.1% 123,001 121,469
60% 59.8% 105,429 105,130
50% 49.7% 87,858 87,401
40% 39.7% 70,286 69,711
30% 30.1% 52,715 52,938
20% 20.1% 35,143 35,295
10% 10.0% 17,572 17,650
Active Idle   0 0

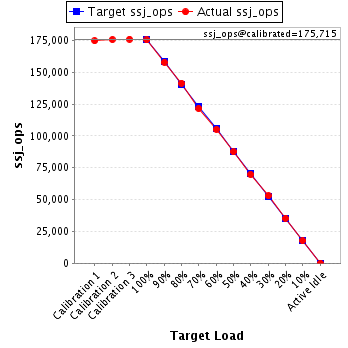

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,270
Calibration 2     174,704
Calibration 3     174,429
ssj_ops@calibrated=174,567
100% 99.1% 174,567 172,999
90% 90.9% 157,110 158,723
80% 80.2% 139,653 139,941
70% 70.4% 122,197 122,980
60% 59.9% 104,740 104,625
50% 50.1% 87,283 87,430
40% 39.9% 69,827 69,698
30% 29.8% 52,370 52,050
20% 19.6% 34,913 34,174
10% 10.2% 17,457 17,819
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,121
Calibration 2     174,188
Calibration 3     173,250
ssj_ops@calibrated=173,719
100% 99.4% 173,719 172,737
90% 90.0% 156,347 156,360
80% 79.8% 138,976 138,711
70% 70.4% 121,604 122,367
60% 59.8% 104,232 103,886
50% 49.7% 86,860 86,296
40% 39.7% 69,488 69,004
30% 29.8% 52,116 51,750
20% 20.1% 34,744 34,859
10% 10.2% 17,372 17,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,728
Calibration 2     173,109
Calibration 3     173,920
ssj_ops@calibrated=173,514
100% 99.7% 173,514 172,944
90% 89.8% 156,163 155,800
80% 79.9% 138,811 138,674
70% 69.7% 121,460 120,994
60% 59.7% 104,109 103,626
50% 49.5% 86,757 85,864
40% 40.2% 69,406 69,802
30% 30.4% 52,054 52,826
20% 19.7% 34,703 34,206
10% 10.2% 17,351 17,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,239
Calibration 2     174,287
Calibration 3     174,048
ssj_ops@calibrated=174,167
100% 99.4% 174,167 173,177
90% 90.0% 156,751 156,679
80% 80.0% 139,334 139,415
70% 70.1% 121,917 122,061
60% 59.6% 104,500 103,746
50% 49.1% 87,084 85,590
40% 39.6% 69,667 68,910
30% 29.7% 52,250 51,666
20% 19.7% 34,833 34,308
10% 10.2% 17,417 17,796
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
