Hitachi, Ltd. HA8000/RS220-hHM ssj_ops@100% = 1,401,473
ssj_ops@100% per JVM = 175,184
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 21, 2012
Hardware Availability: May-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,393,540
Calibration 2     1,405,046
Calibration 3     1,402,387
ssj_ops@calibrated=1,403,717
100% 99.8% 1,403,717 1,401,473
90% 89.9% 1,263,345 1,261,936
80% 79.5% 1,122,973 1,115,940
70% 70.3% 982,602 986,901
60% 60.0% 842,230 842,698
50% 50.0% 701,858 701,848
40% 40.2% 561,487 563,691
30% 29.9% 421,115 419,675
20% 20.0% 280,743 280,385
10% 10.1% 140,372 141,256
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: None
Hardware
Hardware Vendor: Hitachi, Ltd.
Model: HA8000/RS220-hHM
Form Factor: 2U
CPU Name: Intel Xeon E5-2670
CPU Characteristics: 8 core, 2.6GHz, 20MB L3 Cache (Turbo Boost Technology up to 3.30 GHz)
CPU Frequency (MHz): 2600
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 32
# and size of DIMM: 4 x 8192 MB
Memory Details: 8GB 2Rx4 PC3L-10600R ECC CL9; slots CPU1_DIMM1,2 and CPU2_DIMM1,2 populated
Power Supply Quantity and Rating (W): 1 x 1000
Power Supply Details: DELTA DPS-1200RB_A(Hitachi P/N:GQ-BP2362)
Disk Drive: 1 x 80GB SSD SATA (Hitachi P/N:GQ-UH7080NDM)
Disk Controller: LSI SAS 2208 (add-on card)
# and type of Network Interface Cards (NICs) Installed: 1 x Broadcom BCM5718 Gigabit Network Connection (onboard)
NICs Enabled in Firmware / OS / Connected: 2/1/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: Yes
Other Hardware: None
Software
Power Management: Enabled (Power saver)
Operating System (OS): Microsoft Windows Server 2008 R2 Enterprise
OS Version: SP1
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM on Windows, version 1.6.0_30
JVM Command-line Options: -Xmx2g -Xms2g -Xmn1700m -XX:SurvivorRatio=60 -XX:TargetSurvivorRatio=90 -XX:ParallelGCThreads=4 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+UseCompressedStrings -XX:+AggressiveOpts
JVM Affinity: start / affinity [NODE0 : f,f0,f00,f000,NODE1 : f,f0,f00,f000]
JVM Instances: 8
JVM Initial Heap (MB): 2048
JVM Maximum Heap (MB): 2048
JVM Address Bits: 64
Boot Firmware Version: MH.1.04
Management Firmware Version: 09.15
Workload Version: SSJ 1.2.9
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-KLD90F6RKSL.001 177,160
WIN-KLD90F6RKSL.002 174,923
WIN-KLD90F6RKSL.003 173,009
WIN-KLD90F6RKSL.004 175,294
WIN-KLD90F6RKSL.005 177,598
WIN-KLD90F6RKSL.006 172,866
WIN-KLD90F6RKSL.007 175,682
WIN-KLD90F6RKSL.008 174,940
ssj_ops@100% 1,401,473
ssj_ops@100% per JVM 175,184

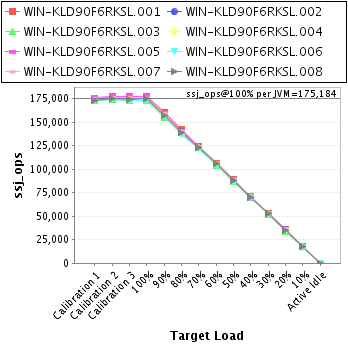

Graph of per-instance results
JVM 'WIN-KLD90F6RKSL.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,087
Calibration 2     177,405
Calibration 3     177,364
ssj_ops@calibrated=177,384
100% 99.9% 177,384 177,160
90% 90.5% 159,646 160,607
80% 80.0% 141,908 141,832
70% 70.2% 124,169 124,442
60% 59.6% 106,431 105,732
50% 50.1% 88,692 88,910
40% 39.9% 70,954 70,847
30% 29.6% 53,215 52,513
20% 20.1% 35,477 35,657
10% 10.1% 17,738 17,940
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,279
Calibration 2     175,103
Calibration 3     175,231
ssj_ops@calibrated=175,167
100% 99.9% 175,167 174,923
90% 89.6% 157,650 156,865
80% 79.8% 140,134 139,808
70% 70.4% 122,617 123,338
60% 60.1% 105,100 105,229
50% 49.8% 87,584 87,237
40% 40.2% 70,067 70,447
30% 29.9% 52,550 52,411
20% 20.5% 35,033 35,847
10% 10.2% 17,517 17,905
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,612
Calibration 2     174,303
Calibration 3     173,343
ssj_ops@calibrated=173,823
100% 99.5% 173,823 173,009
90% 89.1% 156,440 154,894
80% 79.8% 139,058 138,656
70% 70.9% 121,676 123,319
60% 59.6% 104,294 103,611
50% 49.9% 86,911 86,714
40% 40.7% 69,529 70,672
30% 30.1% 52,147 52,357
20% 19.7% 34,765 34,160
10% 10.1% 17,382 17,597
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,894
Calibration 2     175,570
Calibration 3     174,674
ssj_ops@calibrated=175,122
100% 100.1% 175,122 175,294
90% 89.9% 157,610 157,513
80% 78.8% 140,098 137,952
70% 70.3% 122,586 123,100
60% 59.9% 105,073 104,980
50% 49.7% 87,561 87,036
40% 39.8% 70,049 69,756
30% 29.9% 52,537 52,430
20% 19.7% 35,024 34,468
10% 10.0% 17,512 17,428
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,470
Calibration 2     177,474
Calibration 3     177,686
ssj_ops@calibrated=177,580
100% 100.0% 177,580 177,598
90% 90.0% 159,822 159,900
80% 79.4% 142,064 141,022
70% 69.9% 124,306 124,164
60% 60.1% 106,548 106,718
50% 50.2% 88,790 89,113
40% 39.6% 71,032 70,329
30% 29.6% 53,274 52,631
20% 19.8% 35,516 35,231
10% 10.2% 17,758 18,132
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     172,597
Calibration 2     173,931
Calibration 3     173,263
ssj_ops@calibrated=173,597
100% 99.6% 173,597 172,866
90% 89.8% 156,237 155,934
80% 79.2% 138,878 137,425
70% 70.4% 121,518 122,212
60% 59.9% 104,158 103,948
50% 49.9% 86,798 86,584
40% 40.2% 69,439 69,775
30% 30.0% 52,079 52,030
20% 19.9% 34,719 34,546
10% 9.9% 17,360 17,116
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     174,187
Calibration 2     176,210
Calibration 3     176,169
ssj_ops@calibrated=176,189
100% 99.7% 176,189 175,682
90% 90.3% 158,571 159,022
80% 79.7% 140,952 140,440
70% 70.2% 123,333 123,641
60% 60.6% 105,714 106,692
50% 50.0% 88,095 88,096
40% 40.5% 70,476 71,427
30% 29.9% 52,857 52,760
20% 20.1% 35,238 35,345
10% 10.1% 17,619 17,769
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-KLD90F6RKSL.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     173,413
Calibration 2     175,050
Calibration 3     174,657
ssj_ops@calibrated=174,854
100% 100.0% 174,854 174,940
90% 89.9% 157,368 157,201
80% 79.4% 139,883 138,806
70% 70.2% 122,398 122,684
60% 60.5% 104,912 105,789
50% 50.4% 87,427 88,157
40% 40.3% 69,941 70,439
30% 30.0% 52,456 52,543
20% 20.1% 34,971 35,131
10% 9.9% 17,485 17,369
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
