Hitachi, Ltd. HA8000/RS210AM SPECpower_ssj2008 = 3,775 overall ssj_ops/watt
Test Sponsor: Hitachi, Ltd. SPEC License #: 35 Test Method: Single Node
Tested By: Hitachi, Ltd. Test Location: Hadano, Kanagawa, Japan Test Date: Jun 22, 2012
Hardware Availability: Jun-2012 Software Availability: Dec-2011 Publication: Aug 22, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 294 26.4
Calibration 2 297 26.5
Calibration 3 297 26.5
100% 297 26.6
90% 270 26.6
80% 224 26.6
70% 209 26.6
60% 189 26.6
50% 164 26.6
40% 143 26.6
30% 127 26.6
20% 116 26.6
10% 106 26.6
Active Idle 92.9 26.6

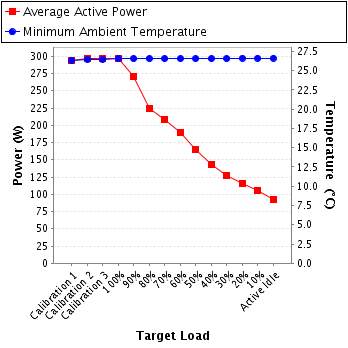

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Electric Corporation
Model: WT210
Serial Number: 91K717967
Connectivity: RS-232C
Input Connection: Default
Metrology Institute: AIST (National Institute of Advanced Industrial Science and Technology)
Accredited by: Yokogawa Meters & Instruments Corporation
Calibration Label: S2012-06-50931
Date of Calibration: 12-Jun-2012
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.4.2-bc965ca0-20120417
Setup Description: None
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 40 mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 200 300.0 1.49 2.0 0.985 294 0.4%
Calibration 2 200 300.0 1.51 2.0 0.985 297 0.4%
Calibration 3 200 300.0 1.51 2.0 0.985 297 0.4%
100% 200 300.0 1.51 2.0 0.985 297 0.4%
90% 200 300.0 1.38 2.0 0.982 270 0.4%
80% 200 300.0 1.14 2.0 0.981 224 0.5%
70% 200 300.0 1.07 2.0 0.977 209 0.5%
60% 200 300.0 0.975 2.0 0.972 189 0.5%
50% 200 300.0 0.848 2.0 0.970 164 0.6%
40% 200 300.0 0.738 2.0 0.971 143 0.6%
30% 200 300.0 0.655 1.0 0.971 127 0.4%
20% 200 300.0 0.597 1.0 0.968 116 0.5%
10% 200 300.0 0.549 1.0 0.964 106 0.5%
Active Idle 200 300.0 0.486 1.0 0.956 92.9 0.5%
Power details for pwr1
