SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2012 Standard Performance Evaluation Corporation
| IBM Corporation IBM System x3650 M4 | SPECpower_ssj2008 = 4,661 overall ssj_ops/watt | ||||
| Test Sponsor: | IBM Corporation | SPEC License #: | 11 | Test Method: | Single Node |
| Tested By: | IBM Corporation | Test Location: | Taipei, Taiwan | Test Date: | Mar 3, 2012 |
| Hardware Availability: | Aug-2012 | Software Availability: | Jun-2012 | Publication: | Aug 22, 2012 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

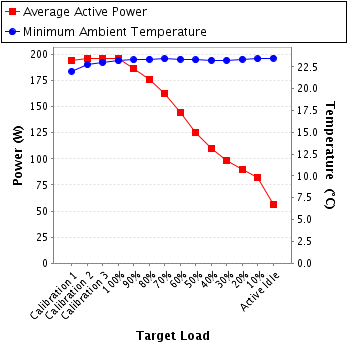

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 194 | 22.0 |
| Calibration 2 | 196 | 22.8 |
| Calibration 3 | 196 | 23.0 |
| 100% | 196 | 23.2 |
| 90% | 186 | 23.3 |
| 80% | 176 | 23.4 |
| 70% | 162 | 23.4 |
| 60% | 144 | 23.4 |
| 50% | 125 | 23.3 |
| 40% | 110 | 23.2 |
| 30% | 98.3 | 23.2 |
| 20% | 89.5 | 23.4 |
| 10% | 81.7 | 23.4 |
| Active Idle | 56.1 | 23.5 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Electric International Pte. Ltd. |
| Model: | WT210 |
| Serial Number: | 91H245649 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NML/ROC |
| Accredited by: | ETC, Taiwan |
| Calibration Label: | 11-05-BAC-032-05 |
| Date of Calibration: | 06-May-2011 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.4.1-1271fb18-20110728 |
| Setup Description: | none |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International, Inc. |
| Model: | Watchport/H |
| Driver Version: | 4.20.0.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 1 cm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 204 | 300.0 | 0.995 | 2.0 | 0.959 | 194 | 0.5% |
| Calibration 2 | 203 | 300.0 | 1.01 | 2.0 | 0.957 | 196 | 0.5% |
| Calibration 3 | 202 | 300.0 | 1.01 | 2.0 | 0.956 | 196 | 0.5% |
| 100% | 202 | 300.0 | 1.01 | 2.0 | 0.956 | 196 | 0.5% |
| 90% | 202 | 300.0 | 0.968 | 2.0 | 0.952 | 186 | 0.5% |
| 80% | 202 | 300.0 | 0.921 | 2.0 | 0.946 | 176 | 0.5% |
| 70% | 202 | 300.0 | 0.851 | 2.0 | 0.942 | 162 | 0.5% |
| 60% | 204 | 300.0 | 0.764 | 1.0 | 0.928 | 144 | 0.4% |
| 50% | 204 | 300.0 | 0.673 | 1.0 | 0.911 | 125 | 0.4% |
| 40% | 203 | 300.0 | 0.611 | 1.0 | 0.885 | 110 | 0.5% |
| 30% | 204 | 300.0 | 0.560 | 1.0 | 0.861 | 98.3 | 0.5% |
| 20% | 204 | 300.0 | 0.523 | 1.0 | 0.841 | 89.5 | 0.6% |
| 10% | 204 | 300.0 | 0.489 | 1.0 | 0.818 | 81.7 | 0.6% |
| Active Idle | 204 | 300.0 | 0.382 | 0.5 | 0.717 | 56.1 | 0.6% |
