Dell Inc. PowerEdge R720 (Intel Xeon E5-2660, 2.20 GHz) ssj_ops@100% = 1,447,466
ssj_ops@100% per JVM = 180,933
Test Sponsor: Dell Inc. SPEC License #: 55 Test Method: Single Node
Tested By: Dell Inc. Test Location: Round Rock, TX, USA Test Date: Oct 24, 2012
Hardware Availability: Dec-2012 Software Availability: Jun-2012 Publication: Nov 14, 2012
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,425,094
Calibration 2     1,459,841
Calibration 3     1,458,713
ssj_ops@calibrated=1,459,277
100% 99.2% 1,459,277 1,447,466
90% 89.5% 1,313,349 1,306,322
80% 80.0% 1,167,421 1,167,089
70% 70.0% 1,021,494 1,021,464
60% 59.9% 875,566 874,048
50% 50.0% 729,638 729,614
40% 40.1% 583,711 584,498
30% 29.9% 437,783 436,744
20% 20.0% 291,855 291,791
10% 10.0% 145,928 146,131
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 1
Comment: PowerEdge R720.
Hardware
Hardware Vendor: Dell Inc.
Model: PowerEdge R720 (Intel Xeon E5-2660, 2.20 GHz)
Form Factor: 2U
CPU Name: Intel Xeon E5-2660 2.20 GHz (Intel Turbo Boost Technology up to 3.00 GHz)
CPU Characteristics: 8 core, 2.20 GHz, 20MB L3 Cache
CPU Frequency (MHz): 2200
CPU(s) Enabled: 16 cores, 2 chips, 8 cores/chip
Hardware Threads: 32 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per core
Tertiary Cache: 20 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 24
# and size of DIMM: 6 x 4096 MB
Memory Details: 4GB 2Rx8 PC3L-10600E-9 ECC; Slots A1-3,B1-3 populated.
Power Supply Quantity and Rating (W): 1 x 750
Power Supply Details: Dell P/N XYXMG
Disk Drive: 1 x 200GB SATA SSD, Dell P/N 24XV8
Disk Controller: Integrated PERC S110
# and type of Network Interface Cards (NICs) Installed: 2 x dual-port Broadcom 5720, Dell P/N FM487
NICs Enabled in Firmware / OS / Connected: 4/4/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Power Saver plan in OS
Operating System (OS): Microsoft Windows Server 2008 x64 Enterprise Edition
OS Version: R2 SP1
Filesystem: NTFS
JVM Vendor: IBM Corporation
JVM Version: IBM J9 VM (build 2.6,JRE 1.7.0 Windows Server 2008 R2 amd64-64 20120322_106209 (JIT enabled, AOT enabled)
JVM Command-line Options: -Xaggressive -Xcompressedrefs -Xmx1500m -Xms1500m -Xmn1100m -XlockReservation -Xnoloa -XtlhPrefetch -Xlp -Xconcurrentlevel0 -Xthr:minimizeusercpu -Xgcthreads4
JVM Affinity: start /affinity [F,F0,F00,F000,F0000,F00000,F000000,F0000000]
JVM Instances: 8
JVM Initial Heap (MB): 1500
JVM Maximum Heap (MB): 1500
JVM Address Bits: 64
Boot Firmware Version: 1.3.6
Management Firmware Version: 1.30.30 (Build 37)
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: IBM SDK Java Technology Edition Version 7.0 for Windows x64
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-BHAB93BNEPU.001 181,590
WIN-BHAB93BNEPU.002 181,610
WIN-BHAB93BNEPU.003 181,194
WIN-BHAB93BNEPU.004 180,786
WIN-BHAB93BNEPU.005 178,910
WIN-BHAB93BNEPU.006 179,469
WIN-BHAB93BNEPU.007 181,505
WIN-BHAB93BNEPU.008 182,402
ssj_ops@100% 1,447,466
ssj_ops@100% per JVM 180,933

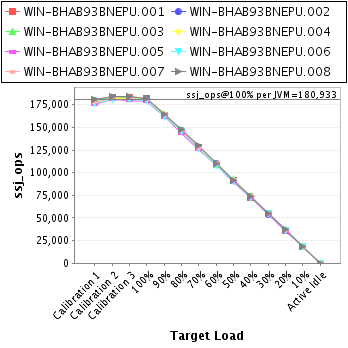

Graph of per-instance results
JVM 'WIN-BHAB93BNEPU.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,371
Calibration 2     182,834
Calibration 3     182,877
ssj_ops@calibrated=182,855
100% 99.3% 182,855 181,590
90% 89.1% 164,570 162,970
80% 79.3% 146,284 145,018
70% 70.0% 127,999 127,999
60% 59.9% 109,713 109,467
50% 50.1% 91,428 91,524
40% 39.8% 73,142 72,839
30% 29.8% 54,857 54,506
20% 19.8% 36,571 36,292
10% 9.8% 18,286 18,001
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,354
Calibration 2     182,628
Calibration 3     181,941
ssj_ops@calibrated=182,285
100% 99.6% 182,285 181,610
90% 89.5% 164,056 163,125
80% 80.3% 145,828 146,367
70% 70.0% 127,599 127,615
60% 60.3% 109,371 109,834
50% 50.0% 91,142 91,162
40% 40.3% 72,914 73,401
30% 29.8% 54,685 54,359
20% 19.9% 36,457 36,253
10% 9.9% 18,228 18,129
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     179,474
Calibration 2     182,911
Calibration 3     182,977
ssj_ops@calibrated=182,944
100% 99.0% 182,944 181,194
90% 89.6% 164,650 163,940
80% 80.3% 146,355 146,955
70% 69.8% 128,061 127,717
60% 59.3% 109,766 108,576
50% 50.4% 91,472 92,205
40% 40.3% 73,178 73,680
30% 30.1% 54,883 55,092
20% 20.2% 36,589 36,976
10% 10.4% 18,294 19,015
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     178,205
Calibration 2     182,012
Calibration 3     181,942
ssj_ops@calibrated=181,977
100% 99.3% 181,977 180,786
90% 89.7% 163,779 163,193
80% 80.1% 145,582 145,718
70% 70.0% 127,384 127,388
60% 60.0% 109,186 109,208
50% 50.4% 90,988 91,734
40% 39.7% 72,791 72,257
30% 29.9% 54,593 54,429
20% 19.8% 36,395 36,069
10% 10.0% 18,198 18,161
Active Idle   0 0

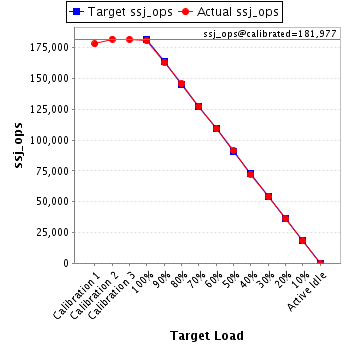

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     175,433
Calibration 2     180,908
Calibration 3     180,158
ssj_ops@calibrated=180,533
100% 99.1% 180,533 178,910
90% 89.5% 162,480 161,545
80% 79.5% 144,426 143,523
70% 69.6% 126,373 125,698
60% 60.0% 108,320 108,402
50% 49.6% 90,266 89,583
40% 39.9% 72,213 72,118
30% 29.8% 54,160 53,731
20% 19.7% 36,107 35,594
10% 10.0% 18,053 18,011
Active Idle   0 0

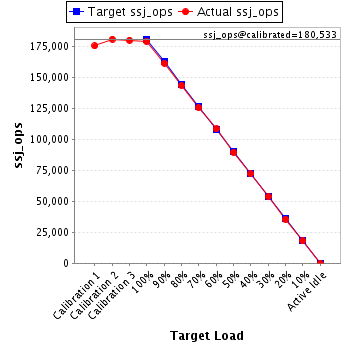

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     176,764
Calibration 2     181,113
Calibration 3     180,532
ssj_ops@calibrated=180,823
100% 99.3% 180,823 179,469
90% 89.4% 162,740 161,682
80% 80.3% 144,658 145,235
70% 70.3% 126,576 127,062
60% 59.8% 108,494 108,078
50% 49.7% 90,411 89,867
40% 39.9% 72,329 72,164
30% 30.1% 54,247 54,435
20% 20.1% 36,165 36,364
10% 10.0% 18,082 18,028
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     177,877
Calibration 2     183,159
Calibration 3     183,779
ssj_ops@calibrated=183,469
100% 98.9% 183,469 181,505
90% 90.0% 165,122 165,196
80% 80.1% 146,775 146,946
70% 69.7% 128,428 127,786
60% 60.4% 110,081 110,776
50% 50.0% 91,734 91,815
40% 40.7% 73,387 74,637
30% 30.2% 55,041 55,323
20% 20.1% 36,694 36,819
10% 10.1% 18,347 18,485
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-BHAB93BNEPU.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     180,616
Calibration 2     184,277
Calibration 3     184,506
ssj_ops@calibrated=184,392
100% 98.9% 184,392 182,402
90% 89.3% 165,953 164,670
80% 79.9% 147,513 147,327
70% 70.6% 129,074 130,198
60% 59.5% 110,635 109,707
50% 49.7% 92,196 91,723
40% 39.8% 73,757 73,403
30% 29.8% 55,318 54,868
20% 20.3% 36,878 37,424
10% 9.9% 18,439 18,299
Active Idle   0 0

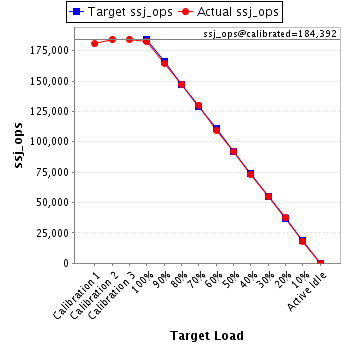

Graph of results
See the JVM Instance Performance Report for additional details.
