Fujitsu PRIMERGY RX100 S8 (Intel Xeon E3-1265Lv3) SPECpower_ssj2008 = 6,137 overall ssj_ops/watt
Test Sponsor: Fujitsu SPEC License #: 19 Test Method: Single Node
Tested By: Fujitsu Test Location: Paderborn, NRW, Germany Test Date: Oct 14, 2013
Hardware Availability: Nov-2013 Software Availability: Jun-2012 Publication: Nov 13, 2013
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 69.9 20.2
Calibration 2 69.7 20.2
Calibration 3 69.6 20.2
100% 69.8 20.2
90% 66.2 20.2
80% 57.4 20.2
70% 47.7 20.2
60% 40.3 20.2
50% 34.4 20.2
40% 31.2 20.2
30% 28.2 20.2
20% 24.9 20.2
10% 22.1 20.2
Active Idle 17.7 20.2

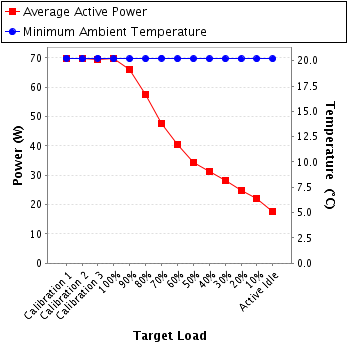

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: ZES Zimmer Electronic Systems GmbH
Model: LMG95
Serial Number: 11780806
Connectivity: RS-232
Input Connection: Default (20A)
Metrology Institute: PTB (Physikalisch Technische Bundesanstalt)
Accredited by: Atlas Copco Tools Central Europe GmbH
Calibration Label: W13088002
Date of Calibration: 20-Aug-2013
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.6.1-ddf12a8b-20130626
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: Watchport Virtual Port 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 5 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 230 250.0 0.354 0.6 0.857 69.9 0.1%
Calibration 2 231 250.0 0.353 0.6 0.856 69.7 0.1%
Calibration 3 231 250.0 0.352 0.6 0.855 69.6 0.1%
100% 231 250.0 0.353 0.6 0.856 69.8 0.1%
90% 231 250.0 0.339 0.6 0.843 66.2 0.1%
80% 231 250.0 0.311 0.6 0.795 57.4 0.2%
70% 231 250.0 0.279 0.6 0.738 47.7 0.2%
60% 231 250.0 0.250 0.6 0.695 40.3 0.2%
50% 231 250.0 0.229 0.6 0.651 34.4 0.2%
40% 231 250.0 0.218 0.6 0.617 31.2 0.3%
30% 231 250.0 0.209 0.6 0.583 28.2 0.3%
20% 231 250.0 0.199 0.6 0.541 24.9 0.3%
10% 231 250.0 0.191 0.6 0.503 22.1 0.4%
Active Idle 231 250.0 0.178 0.6 0.432 17.7 0.4%
Power details for pwr1
