SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2017 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge R940 | SPECpower_ssj2008 = 11,958 overall ssj_ops/watt | ||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 55 | Test Method: | Single Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Oct 9, 2017 |
| Hardware Availability: | Sep-2017 | Software Availability: | Apr-2015 | Publication: | Oct 25, 2017 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

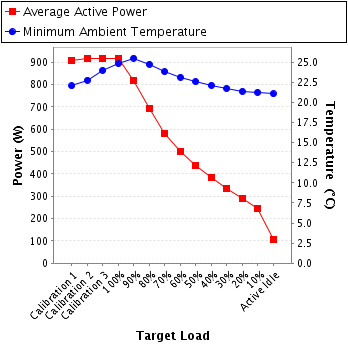

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 910 | 22.1 |
| Calibration 2 | 915 | 22.8 |
| Calibration 3 | 919 | 24.0 |
| 100% | 915 | 24.8 |
| 90% | 820 | 25.5 |
| 80% | 694 | 24.8 |
| 70% | 583 | 23.8 |
| 60% | 502 | 23.1 |
| 50% | 437 | 22.6 |
| 40% | 383 | 22.1 |
| 30% | 336 | 21.8 |
| 20% | 292 | 21.4 |
| 10% | 245 | 21.2 |
| Active Idle | 106 | 21.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation |
| Model: | WT210 |
| Serial Number: | 91JB09484 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | SIMCO |
| Calibration Label: | 7736998 |
| Date of Calibration: | 4-Apr-2017 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to power supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 25 mm in front of SUT main airflow intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 4.41 | 5.0 | 0.992 | 910 | 0.3% |
| Calibration 2 | 208 | 300.0 | 4.44 | 5.0 | 0.992 | 915 | 0.3% |
| Calibration 3 | 208 | 300.0 | 4.45 | 5.0 | 0.992 | 919 | 0.3% |
| 100% | 208 | 300.0 | 4.44 | 5.0 | 0.992 | 915 | 0.3% |
| 90% | 208 | 300.0 | 3.98 | 5.0 | 0.990 | 820 | 0.4% |
| 80% | 208 | 300.0 | 3.38 | 5.0 | 0.988 | 694 | 0.4% |
| 70% | 208 | 300.0 | 2.85 | 5.0 | 0.982 | 583 | 0.4% |
| 60% | 208 | 300.0 | 2.47 | 5.0 | 0.976 | 502 | 0.5% |
| 50% | 208 | 300.0 | 2.16 | 5.0 | 0.972 | 437 | 0.5% |
| 40% | 208 | 300.0 | 1.90 | 5.0 | 0.968 | 383 | 0.6% |
| 30% | 208 | 300.0 | 1.68 | 2.0 | 0.961 | 336 | 0.4% |
| 20% | 208 | 300.0 | 1.48 | 2.0 | 0.947 | 292 | 0.4% |
| 10% | 208 | 300.0 | 1.27 | 2.0 | 0.925 | 245 | 0.5% |
| Active Idle | 209 | 300.0 | 0.717 | 1.0 | 0.706 | 106 | 0.6% |
