Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 4,932,566
ssj_ops@100% per JVM = 88,082
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,132,351
Calibration 2     5,063,585
Calibration 3     4,938,164
ssj_ops@calibrated=5,000,874
100% 98.6% 5,000,874 4,932,566
90% 90.4% 4,500,787 4,521,614
80% 80.0% 4,000,700 3,998,607
70% 69.8% 3,500,612 3,491,380
60% 59.9% 3,000,525 2,997,945
50% 49.9% 2,500,437 2,496,226
40% 40.0% 2,000,350 1,998,939
30% 30.0% 1,500,262 1,500,292
20% 20.1% 1,000,175 1,003,828
10% 10.0% 500,087 501,328
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R4-186.001 87,684
R4-186.002 88,908
R4-186.003 88,403
R4-186.004 88,497
R4-186.005 90,044
R4-186.006 90,368
R4-186.007 88,391
R4-186.008 87,791
R4-186.009 89,071
R4-186.010 88,223
R4-186.011 86,258
R4-186.012 88,437
R4-186.013 91,260
R4-186.014 88,538
R4-186.015 88,572
R4-186.016 89,696
R4-186.017 88,985
R4-186.018 88,359
R4-186.019 86,455
R4-186.020 91,326
R4-186.021 87,623
R4-186.022 87,079
R4-186.023 88,922
R4-186.024 88,849
R4-186.025 88,622
R4-186.026 89,163
R4-186.027 88,628
R4-186.028 88,482
R4-186.029 87,731
R4-186.030 87,042
R4-186.031 88,150
R4-186.032 86,896
R4-186.033 87,202
R4-186.034 88,597
R4-186.035 87,821
R4-186.036 86,683
R4-186.037 86,806
R4-186.038 87,149
R4-186.039 87,727
R4-186.040 87,914
R4-186.041 88,808
R4-186.042 87,581
R4-186.043 87,181
R4-186.044 89,128
R4-186.045 85,743
R4-186.046 87,196
R4-186.047 86,463
R4-186.048 87,972
R4-186.049 87,919
R4-186.050 86,958
R4-186.051 88,837
R4-186.052 88,670
R4-186.053 87,143
R4-186.054 86,891
R4-186.055 86,879
R4-186.056 86,846
ssj_ops@100% 4,932,566
ssj_ops@100% per JVM 88,082
Graph of per-instance results
JVM 'R4-186.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,125
Calibration 2     89,672
Calibration 3     87,964
ssj_ops@calibrated=88,818
100% 98.7% 88,818 87,684
90% 90.5% 79,936 80,391
80% 79.7% 71,054 70,763
70% 70.2% 62,172 62,369
60% 60.3% 53,291 53,523
50% 50.3% 44,409 44,637
40% 39.7% 35,527 35,253
30% 30.5% 26,645 27,077
20% 20.6% 17,764 18,308
10% 10.5% 8,882 9,322
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,158
Calibration 2     90,105
Calibration 3     88,841
ssj_ops@calibrated=89,473
100% 99.4% 89,473 88,908
90% 89.4% 80,526 80,027
80% 79.8% 71,578 71,439
70% 70.1% 62,631 62,764
60% 61.2% 53,684 54,776
50% 49.3% 44,736 44,103
40% 39.4% 35,789 35,282
30% 30.3% 26,842 27,066
20% 20.0% 17,895 17,871
10% 10.2% 8,947 9,088
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,629
Calibration 2     89,639
Calibration 3     88,341
ssj_ops@calibrated=88,990
100% 99.3% 88,990 88,403
90% 91.6% 80,091 81,473
80% 80.2% 71,192 71,380
70% 69.3% 62,293 61,670
60% 59.3% 53,394 52,784
50% 49.8% 44,495 44,361
40% 40.8% 35,596 36,319
30% 30.3% 26,697 26,931
20% 19.9% 17,798 17,670
10% 10.2% 8,899 9,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,678
Calibration 2     89,735
Calibration 3     88,534
ssj_ops@calibrated=89,134
100% 99.3% 89,134 88,497
90% 90.2% 80,221 80,392
80% 78.3% 71,308 69,782
70% 68.9% 62,394 61,455
60% 59.7% 53,481 53,214
50% 50.6% 44,567 45,088
40% 40.1% 35,654 35,707
30% 30.1% 26,740 26,798
20% 19.9% 17,827 17,776
10% 9.8% 8,913 8,766
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,587
Calibration 2     91,564
Calibration 3     89,664
ssj_ops@calibrated=90,614
100% 99.4% 90,614 90,044
90% 90.7% 81,553 82,218
80% 79.3% 72,491 71,881
70% 70.0% 63,430 63,471
60% 60.2% 54,368 54,518
50% 50.1% 45,307 45,364
40% 40.2% 36,246 36,455
30% 29.4% 27,184 26,670
20% 20.3% 18,123 18,394
10% 10.5% 9,061 9,479
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,146
Calibration 2     91,540
Calibration 3     90,528
ssj_ops@calibrated=91,034
100% 99.3% 91,034 90,368
90% 91.5% 81,931 83,297
80% 79.7% 72,827 72,526
70% 70.0% 63,724 63,689
60% 60.4% 54,620 54,957
50% 49.9% 45,517 45,451
40% 40.2% 36,414 36,598
30% 30.1% 27,310 27,403
20% 20.3% 18,207 18,491
10% 10.1% 9,103 9,154
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,661
Calibration 2     89,165
Calibration 3     88,478
ssj_ops@calibrated=88,821
100% 99.5% 88,821 88,391
90% 89.4% 79,939 79,446
80% 79.8% 71,057 70,905
70% 70.2% 62,175 62,311
60% 60.2% 53,293 53,508
50% 50.0% 44,411 44,412
40% 39.5% 35,529 35,113
30% 29.4% 26,646 26,109
20% 19.8% 17,764 17,566
10% 10.0% 8,882 8,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,527
Calibration 2     89,129
Calibration 3     87,693
ssj_ops@calibrated=88,411
100% 99.3% 88,411 87,791
90% 90.8% 79,570 80,288
80% 80.4% 70,729 71,055
70% 69.6% 61,888 61,508
60% 60.0% 53,047 53,056
50% 49.4% 44,205 43,686
40% 39.5% 35,364 34,906
30% 30.1% 26,523 26,574
20% 20.0% 17,682 17,641
10% 10.2% 8,841 9,024
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,554
Calibration 2     90,142
Calibration 3     89,028
ssj_ops@calibrated=89,585
100% 99.4% 89,585 89,071
90% 91.2% 80,627 81,734
80% 80.2% 71,668 71,883
70% 69.0% 62,710 61,850
60% 60.2% 53,751 53,974
50% 50.2% 44,793 44,981
40% 40.3% 35,834 36,129
30% 29.9% 26,876 26,771
20% 20.1% 17,917 18,028
10% 10.2% 8,959 9,150
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,363
Calibration 2     89,609
Calibration 3     88,303
ssj_ops@calibrated=88,956
100% 99.2% 88,956 88,223
90% 88.9% 80,060 79,092
80% 80.3% 71,165 71,414
70% 69.1% 62,269 61,433
60% 59.3% 53,374 52,793
50% 49.5% 44,478 44,065
40% 39.6% 35,582 35,186
30% 30.0% 26,687 26,715
20% 19.8% 17,791 17,569
10% 10.2% 8,896 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     89,351
Calibration 2     87,955
Calibration 3     86,156
ssj_ops@calibrated=87,055
100% 99.1% 87,055 86,258
90% 89.8% 78,350 78,132
80% 80.0% 69,644 69,678
70% 69.4% 60,939 60,427
60% 60.4% 52,233 52,569
50% 49.9% 43,528 43,403
40% 39.7% 34,822 34,563
30% 29.6% 26,117 25,741
20% 19.6% 17,411 17,070
10% 9.8% 8,706 8,512
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,758
Calibration 2     89,536
Calibration 3     88,309
ssj_ops@calibrated=88,922
100% 99.5% 88,922 88,437
90% 90.0% 80,030 80,001
80% 79.8% 71,138 70,944
70% 68.7% 62,245 61,105
60% 60.5% 53,353 53,788
50% 50.2% 44,461 44,622
40% 40.1% 35,569 35,694
30% 30.1% 26,677 26,809
20% 20.3% 17,784 18,061
10% 10.0% 8,892 8,862
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

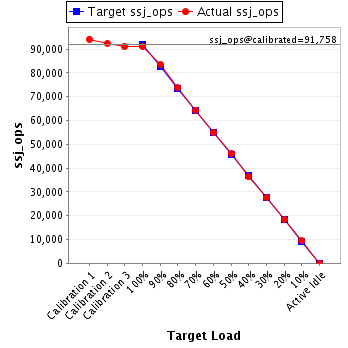

JVM 'R4-186.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,172
Calibration 2     92,356
Calibration 3     91,160
ssj_ops@calibrated=91,758
100% 99.5% 91,758 91,260
90% 91.0% 82,582 83,475
80% 80.3% 73,406 73,657
70% 70.2% 64,230 64,397
60% 59.8% 55,055 54,895
50% 50.1% 45,879 46,016
40% 39.5% 36,703 36,272
30% 30.2% 27,527 27,710
20% 20.0% 18,352 18,390
10% 10.3% 9,176 9,494
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,007
Calibration 2     89,462
Calibration 3     88,316
ssj_ops@calibrated=88,889
100% 99.6% 88,889 88,538
90% 90.3% 80,000 80,264
80% 79.9% 71,111 71,016
70% 70.7% 62,222 62,852
60% 60.0% 53,333 53,313
50% 50.3% 44,444 44,669
40% 39.5% 35,556 35,109
30% 29.9% 26,667 26,618
20% 20.4% 17,778 18,094
10% 10.1% 8,889 9,019
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,585
Calibration 2     90,020
Calibration 3     88,797
ssj_ops@calibrated=89,408
100% 99.1% 89,408 88,572
90% 89.7% 80,468 80,185
80% 79.9% 71,527 71,405
70% 70.1% 62,586 62,697
60% 59.3% 53,645 52,983
50% 49.8% 44,704 44,530
40% 40.8% 35,763 36,438
30% 30.5% 26,823 27,257
20% 20.1% 17,882 17,958
10% 9.8% 8,941 8,771
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,464
Calibration 2     91,125
Calibration 3     89,961
ssj_ops@calibrated=90,543
100% 99.1% 90,543 89,696
90% 90.4% 81,489 81,887
80% 79.9% 72,434 72,358
70% 69.6% 63,380 63,035
60% 59.7% 54,326 54,086
50% 49.3% 45,271 44,597
40% 40.4% 36,217 36,602
30% 30.4% 27,163 27,507
20% 19.9% 18,109 18,053
10% 10.0% 9,054 9,058
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,062
Calibration 2     90,686
Calibration 3     89,200
ssj_ops@calibrated=89,943
100% 98.9% 89,943 88,985
90% 90.1% 80,949 81,010
80% 80.1% 71,954 72,002
70% 70.4% 62,960 63,352
60% 60.0% 53,966 53,970
50% 50.3% 44,972 45,281
40% 39.9% 35,977 35,876
30% 30.0% 26,983 27,005
20% 20.6% 17,989 18,566
10% 10.0% 8,994 9,033
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,774
Calibration 2     90,118
Calibration 3     88,297
ssj_ops@calibrated=89,208
100% 99.0% 89,208 88,359
90% 90.2% 80,287 80,497
80% 78.8% 71,366 70,295
70% 69.6% 62,446 62,046
60% 59.4% 53,525 53,030
50% 49.1% 44,604 43,832
40% 39.8% 35,683 35,465
30% 30.4% 26,762 27,117
20% 19.8% 17,842 17,706
10% 10.4% 8,921 9,252
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,894
Calibration 2     89,239
Calibration 3     87,786
ssj_ops@calibrated=88,513
100% 97.7% 88,513 86,455
90% 91.6% 79,661 81,046
80% 79.7% 70,810 70,518
70% 70.2% 61,959 62,105
60% 60.3% 53,108 53,333
50% 50.3% 44,256 44,520
40% 39.9% 35,405 35,353
30% 29.6% 26,554 26,196
20% 19.8% 17,703 17,518
10% 9.9% 8,851 8,775
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,946
Calibration 2     92,912
Calibration 3     91,440
ssj_ops@calibrated=92,176
100% 99.1% 92,176 91,326
90% 89.9% 82,959 82,864
80% 80.0% 73,741 73,759
70% 70.4% 64,523 64,858
60% 59.8% 55,306 55,097
50% 50.4% 46,088 46,442
40% 40.2% 36,871 37,100
30% 29.8% 27,653 27,470
20% 20.0% 18,435 18,412
10% 9.7% 9,218 8,954
Active Idle   0 0

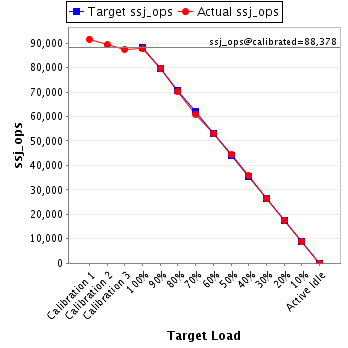

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,614
Calibration 2     89,260
Calibration 3     87,496
ssj_ops@calibrated=88,378
100% 99.1% 88,378 87,623
90% 90.2% 79,540 79,744
80% 79.6% 70,702 70,359
70% 69.0% 61,864 60,992
60% 60.1% 53,027 53,088
50% 50.2% 44,189 44,365
40% 40.4% 35,351 35,735
30% 29.8% 26,513 26,359
20% 20.0% 17,676 17,647
10% 10.0% 8,838 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,027
Calibration 2     89,021
Calibration 3     87,583
ssj_ops@calibrated=88,302
100% 98.6% 88,302 87,079
90% 90.9% 79,472 80,286
80% 79.5% 70,641 70,224
70% 70.0% 61,811 61,839
60% 59.4% 52,981 52,421
50% 50.2% 44,151 44,365
40% 40.2% 35,321 35,521
30% 30.0% 26,491 26,486
20% 20.3% 17,660 17,904
10% 9.9% 8,830 8,708
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,145
Calibration 2     90,486
Calibration 3     89,166
ssj_ops@calibrated=89,826
100% 99.0% 89,826 88,922
90% 89.5% 80,843 80,388
80% 79.5% 71,861 71,437
70% 69.5% 62,878 62,426
60% 60.5% 53,896 54,356
50% 50.2% 44,913 45,110
40% 40.3% 35,930 36,243
30% 30.0% 26,948 26,959
20% 20.3% 17,965 18,213
10% 10.2% 8,983 9,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,030
Calibration 2     89,987
Calibration 3     89,055
ssj_ops@calibrated=89,521
100% 99.2% 89,521 88,849
90% 90.8% 80,569 81,247
80% 80.0% 71,617 71,618
70% 69.4% 62,665 62,101
60% 59.9% 53,713 53,633
50% 50.4% 44,761 45,131
40% 39.5% 35,808 35,328
30% 29.0% 26,856 25,945
20% 20.3% 17,904 18,166
10% 10.3% 8,952 9,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,238
Calibration 2     90,393
Calibration 3     88,908
ssj_ops@calibrated=89,650
100% 98.9% 89,650 88,622
90% 90.2% 80,685 80,901
80% 79.8% 71,720 71,545
70% 70.5% 62,755 63,241
60% 59.9% 53,790 53,718
50% 50.1% 44,825 44,914
40% 40.1% 35,860 35,938
30% 30.4% 26,895 27,233
20% 19.9% 17,930 17,845
10% 9.8% 8,965 8,808
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,847
Calibration 2     90,427
Calibration 3     89,343
ssj_ops@calibrated=89,885
100% 99.2% 89,885 89,163
90% 89.7% 80,896 80,666
80% 80.0% 71,908 71,895
70% 69.5% 62,919 62,449
60% 60.5% 53,931 54,394
50% 50.1% 44,942 45,024
40% 39.9% 35,954 35,889
30% 29.8% 26,965 26,770
20% 20.8% 17,977 18,691
10% 9.8% 8,988 8,854
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,495
Calibration 2     89,865
Calibration 3     88,686
ssj_ops@calibrated=89,275
100% 99.3% 89,275 88,628
90% 90.9% 80,348 81,149
80% 80.5% 71,420 71,827
70% 69.7% 62,493 62,216
60% 58.8% 53,565 52,515
50% 50.4% 44,638 44,968
40% 39.6% 35,710 35,365
30% 29.8% 26,783 26,572
20% 20.4% 17,855 18,224
10% 10.0% 8,928 8,964
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,132
Calibration 2     90,591
Calibration 3     88,651
ssj_ops@calibrated=89,621
100% 98.7% 89,621 88,482
90% 91.4% 80,659 81,954
80% 79.6% 71,697 71,309
70% 70.4% 62,735 63,075
60% 60.5% 53,773 54,263
50% 50.0% 44,811 44,836
40% 40.5% 35,848 36,338
30% 30.3% 26,886 27,151
20% 19.7% 17,924 17,666
10% 9.9% 8,962 8,898
Active Idle   0 0

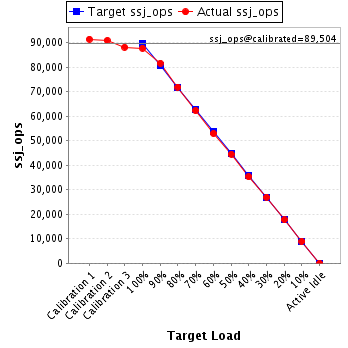

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,376
Calibration 2     90,878
Calibration 3     88,129
ssj_ops@calibrated=89,504
100% 98.0% 89,504 87,731
90% 91.2% 80,553 81,618
80% 80.3% 71,603 71,849
70% 69.5% 62,653 62,249
60% 59.1% 53,702 52,932
50% 49.7% 44,752 44,515
40% 39.4% 35,801 35,242
30% 30.2% 26,851 26,990
20% 19.8% 17,901 17,699
10% 10.0% 8,950 8,934
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,380
Calibration 2     90,772
Calibration 3     87,449
ssj_ops@calibrated=89,110
100% 97.7% 89,110 87,042
90% 88.4% 80,199 78,779
80% 80.0% 71,288 71,331
70% 70.7% 62,377 62,959
60% 60.0% 53,466 53,481
50% 49.7% 44,555 44,320
40% 40.6% 35,644 36,189
30% 29.6% 26,733 26,404
20% 19.9% 17,822 17,755
10% 10.0% 8,911 8,911
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,311
Calibration 2     90,975
Calibration 3     88,039
ssj_ops@calibrated=89,507
100% 98.5% 89,507 88,150
90% 90.8% 80,556 81,275
80% 80.3% 71,606 71,896
70% 70.7% 62,655 63,242
60% 59.9% 53,704 53,614
50% 49.8% 44,753 44,562
40% 40.0% 35,803 35,808
30% 30.0% 26,852 26,833
20% 19.9% 17,901 17,849
10% 10.0% 8,951 8,986
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,708
Calibration 2     90,024
Calibration 3     86,902
ssj_ops@calibrated=88,463
100% 98.2% 88,463 86,896
90% 90.5% 79,617 80,018
80% 81.1% 70,771 71,747
70% 70.0% 61,924 61,931
60% 59.8% 53,078 52,913
50% 49.9% 44,232 44,109
40% 39.7% 35,385 35,135
30% 29.8% 26,539 26,349
20% 19.7% 17,693 17,450
10% 10.2% 8,846 9,029
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,613
Calibration 2     89,668
Calibration 3     87,143
ssj_ops@calibrated=88,406
100% 98.6% 88,406 87,202
90% 91.0% 79,565 80,473
80% 80.0% 70,725 70,686
70% 68.8% 61,884 60,824
60% 59.5% 53,043 52,618
50% 49.8% 44,203 44,026
40% 40.1% 35,362 35,433
30% 29.4% 26,522 26,017
20% 19.9% 17,681 17,634
10% 9.9% 8,841 8,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,674
Calibration 2     91,690
Calibration 3     88,987
ssj_ops@calibrated=90,338
100% 98.1% 90,338 88,597
90% 90.5% 81,305 81,752
80% 79.8% 72,271 72,079
70% 69.1% 63,237 62,426
60% 60.1% 54,203 54,333
50% 48.9% 45,169 44,174
40% 39.3% 36,135 35,483
30% 29.9% 27,102 27,000
20% 20.1% 18,068 18,152
10% 9.9% 9,034 8,934
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

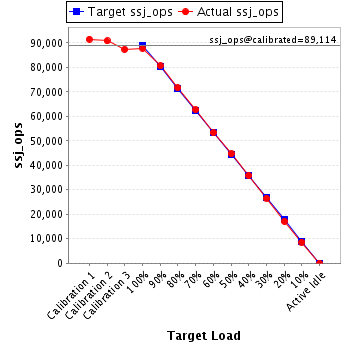

JVM 'R4-186.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,528
Calibration 2     90,796
Calibration 3     87,432
ssj_ops@calibrated=89,114
100% 98.5% 89,114 87,821
90% 90.5% 80,203 80,647
80% 80.4% 71,291 71,665
70% 70.3% 62,380 62,674
60% 59.8% 53,468 53,325
50% 50.2% 44,557 44,715
40% 40.2% 35,646 35,815
30% 29.8% 26,734 26,595
20% 19.3% 17,823 17,178
10% 9.7% 8,911 8,622
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,293
Calibration 2     89,392
Calibration 3     86,676
ssj_ops@calibrated=88,034
100% 98.5% 88,034 86,683
90% 89.9% 79,230 79,132
80% 80.1% 70,427 70,519
70% 69.6% 61,624 61,314
60% 60.7% 52,820 53,462
50% 49.1% 44,017 43,190
40% 40.1% 35,213 35,298
30% 29.8% 26,410 26,196
20% 19.8% 17,607 17,420
10% 10.5% 8,803 9,204
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

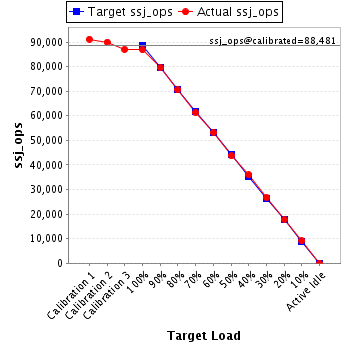

JVM 'R4-186.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,161
Calibration 2     89,935
Calibration 3     87,026
ssj_ops@calibrated=88,481
100% 98.1% 88,481 86,806
90% 89.9% 79,633 79,572
80% 79.7% 70,785 70,509
70% 69.4% 61,936 61,362
60% 60.2% 53,088 53,231
50% 49.4% 44,240 43,676
40% 40.6% 35,392 35,925
30% 30.2% 26,544 26,700
20% 20.0% 17,696 17,737
10% 10.3% 8,848 9,126
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,343
Calibration 2     90,177
Calibration 3     87,040
ssj_ops@calibrated=88,609
100% 98.4% 88,609 87,149
90% 91.0% 79,748 80,644
80% 79.2% 70,887 70,153
70% 69.6% 62,026 61,690
60% 59.7% 53,165 52,888
50% 49.9% 44,304 44,199
40% 39.9% 35,443 35,375
30% 29.6% 26,583 26,186
20% 20.4% 17,722 18,037
10% 9.8% 8,861 8,662
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

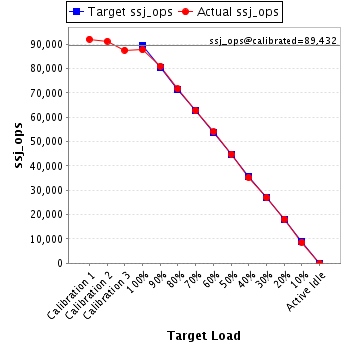

JVM 'R4-186.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,125
Calibration 2     91,278
Calibration 3     87,585
ssj_ops@calibrated=89,432
100% 98.1% 89,432 87,727
90% 90.7% 80,488 81,079
80% 80.1% 71,545 71,664
70% 70.1% 62,602 62,712
60% 60.4% 53,659 53,979
50% 50.1% 44,716 44,808
40% 39.4% 35,773 35,244
30% 30.2% 26,829 27,018
20% 20.3% 17,886 18,173
10% 9.6% 8,943 8,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,234
Calibration 2     91,284
Calibration 3     88,251
ssj_ops@calibrated=89,767
100% 97.9% 89,767 87,914
90% 89.9% 80,791 80,687
80% 79.0% 71,814 70,898
70% 69.5% 62,837 62,398
60% 60.2% 53,860 54,077
50% 50.2% 44,884 45,094
40% 40.0% 35,907 35,910
30% 30.1% 26,930 26,987
20% 20.3% 17,953 18,199
10% 10.1% 8,977 9,087
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,416
Calibration 2     91,524
Calibration 3     88,849
ssj_ops@calibrated=90,187
100% 98.5% 90,187 88,808
90% 89.9% 81,168 81,112
80% 80.4% 72,149 72,476
70% 69.5% 63,131 62,709
60% 59.0% 54,112 53,233
50% 49.5% 45,093 44,598
40% 39.5% 36,075 35,657
30% 30.1% 27,056 27,127
20% 20.4% 18,037 18,416
10% 9.7% 9,019 8,720
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,564
Calibration 2     90,571
Calibration 3     87,557
ssj_ops@calibrated=89,064
100% 98.3% 89,064 87,581
90% 91.5% 80,158 81,524
80% 80.7% 71,251 71,878
70% 70.5% 62,345 62,807
60% 59.4% 53,438 52,927
50% 49.7% 44,532 44,271
40% 40.2% 35,626 35,818
30% 30.1% 26,719 26,804
20% 20.1% 17,813 17,887
10% 9.8% 8,906 8,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,650
Calibration 2     90,210
Calibration 3     87,387
ssj_ops@calibrated=88,798
100% 98.2% 88,798 87,181
90% 90.2% 79,918 80,074
80% 80.4% 71,039 71,359
70% 69.0% 62,159 61,291
60% 59.5% 53,279 52,865
50% 49.6% 44,399 44,025
40% 40.1% 35,519 35,619
30% 30.7% 26,639 27,274
20% 19.8% 17,760 17,575
10% 10.1% 8,880 9,000
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

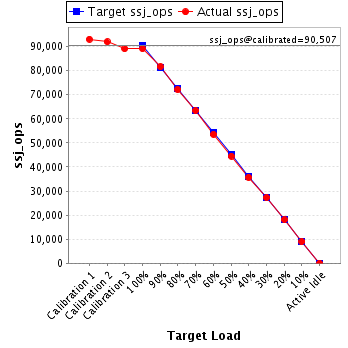

JVM 'R4-186.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,099
Calibration 2     91,949
Calibration 3     89,065
ssj_ops@calibrated=90,507
100% 98.5% 90,507 89,128
90% 90.3% 81,456 81,718
80% 79.8% 72,406 72,197
70% 70.1% 63,355 63,422
60% 59.2% 54,304 53,580
50% 49.2% 45,253 44,535
40% 39.4% 36,203 35,676
30% 30.1% 27,152 27,237
20% 20.0% 18,101 18,073
10% 9.9% 9,051 8,976
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,284
Calibration 2     89,530
Calibration 3     85,560
ssj_ops@calibrated=87,545
100% 97.9% 87,545 85,743
90% 91.3% 78,790 79,959
80% 79.5% 70,036 69,625
70% 70.3% 61,281 61,512
60% 60.9% 52,527 53,281
50% 49.7% 43,772 43,526
40% 40.8% 35,018 35,745
30% 30.3% 26,263 26,514
20% 20.4% 17,509 17,875
10% 9.7% 8,754 8,475
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,322
Calibration 2     90,360
Calibration 3     87,358
ssj_ops@calibrated=88,859
100% 98.1% 88,859 87,196
90% 90.5% 79,973 80,378
80% 80.1% 71,087 71,187
70% 69.9% 62,201 62,113
60% 60.9% 53,315 54,156
50% 49.2% 44,429 43,677
40% 40.2% 35,543 35,723
30% 29.7% 26,658 26,376
20% 20.4% 17,772 18,132
10% 10.0% 8,886 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,966
Calibration 2     90,132
Calibration 3     86,787
ssj_ops@calibrated=88,460
100% 97.7% 88,460 86,463
90% 88.8% 79,614 78,518
80% 79.9% 70,768 70,692
70% 69.9% 61,922 61,871
60% 59.1% 53,076 52,246
50% 49.6% 44,230 43,868
40% 40.0% 35,384 35,387
30% 30.2% 26,538 26,680
20% 19.6% 17,692 17,305
10% 9.7% 8,846 8,553
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,352
Calibration 2     91,264
Calibration 3     88,362
ssj_ops@calibrated=89,813
100% 98.0% 89,813 87,972
90% 91.7% 80,832 82,373
80% 81.5% 71,850 73,164
70% 70.5% 62,869 63,284
60% 59.9% 53,888 53,822
50% 50.5% 44,906 45,351
40% 39.5% 35,925 35,456
30% 31.1% 26,944 27,958
20% 19.8% 17,963 17,802
10% 10.3% 8,981 9,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,799
Calibration 2     91,575
Calibration 3     88,075
ssj_ops@calibrated=89,825
100% 97.9% 89,825 87,919
90% 89.2% 80,842 80,132
80% 80.3% 71,860 72,141
70% 69.9% 62,877 62,784
60% 60.0% 53,895 53,939
50% 49.2% 44,912 44,153
40% 39.8% 35,930 35,732
30% 29.7% 26,947 26,699
20% 20.3% 17,965 18,199
10% 10.1% 8,982 9,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

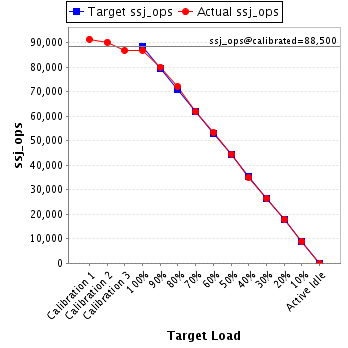

JVM 'R4-186.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,427
Calibration 2     90,187
Calibration 3     86,813
ssj_ops@calibrated=88,500
100% 98.3% 88,500 86,958
90% 90.4% 79,650 79,961
80% 81.5% 70,800 72,125
70% 69.9% 61,950 61,857
60% 60.3% 53,100 53,366
50% 50.3% 44,250 44,478
40% 39.7% 35,400 35,163
30% 30.0% 26,550 26,517
20% 20.4% 17,700 18,028
10% 10.1% 8,850 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,900
Calibration 2     91,970
Calibration 3     89,001
ssj_ops@calibrated=90,486
100% 98.2% 90,486 88,837
90% 90.0% 81,437 81,456
80% 80.5% 72,389 72,839
70% 69.4% 63,340 62,826
60% 60.6% 54,291 54,843
50% 50.7% 45,243 45,884
40% 40.2% 36,194 36,366
30% 29.9% 27,146 27,061
20% 19.9% 18,097 18,045
10% 10.3% 9,049 9,341
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,723
Calibration 2     91,839
Calibration 3     88,597
ssj_ops@calibrated=90,218
100% 98.3% 90,218 88,670
90% 90.0% 81,196 81,168
80% 78.3% 72,174 70,643
70% 70.4% 63,152 63,550
60% 58.8% 54,131 53,062
50% 50.1% 45,109 45,218
40% 40.3% 36,087 36,367
30% 30.2% 27,065 27,254
20% 20.0% 18,044 18,003
10% 10.0% 9,022 9,013
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,548
Calibration 2     90,291
Calibration 3     87,267
ssj_ops@calibrated=88,779
100% 98.2% 88,779 87,143
90% 90.8% 79,901 80,572
80% 79.7% 71,023 70,754
70% 69.3% 62,145 61,546
60% 60.7% 53,268 53,854
50% 50.2% 44,390 44,535
40% 39.6% 35,512 35,115
30% 29.9% 26,634 26,557
20% 19.7% 17,756 17,472
10% 9.6% 8,878 8,562
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

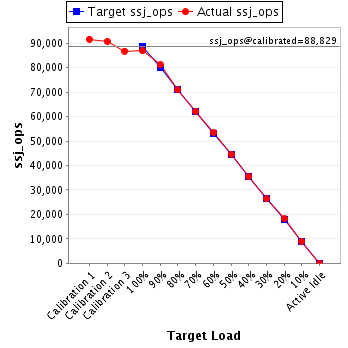

JVM 'R4-186.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,692
Calibration 2     90,810
Calibration 3     86,849
ssj_ops@calibrated=88,829
100% 97.8% 88,829 86,891
90% 91.3% 79,947 81,139
80% 79.8% 71,064 70,917
70% 70.0% 62,181 62,178
60% 60.1% 53,298 53,418
50% 50.3% 44,415 44,698
40% 40.0% 35,532 35,519
30% 29.7% 26,649 26,370
20% 20.5% 17,766 18,208
10% 10.0% 8,883 8,917
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,688
Calibration 2     90,709
Calibration 3     87,435
ssj_ops@calibrated=89,072
100% 97.5% 89,072 86,879
90% 90.4% 80,165 80,539
80% 80.6% 71,258 71,752
70% 70.1% 62,350 62,437
60% 59.2% 53,443 52,718
50% 50.7% 44,536 45,171
40% 40.5% 35,629 36,041
30% 29.9% 26,722 26,633
20% 20.0% 17,814 17,841
10% 9.6% 8,907 8,558
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R4-186.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,203
Calibration 2     90,055
Calibration 3     86,863
ssj_ops@calibrated=88,459
100% 98.2% 88,459 86,846
90% 91.9% 79,613 81,259
80% 80.3% 70,767 70,989
70% 69.7% 61,922 61,679
60% 60.2% 53,076 53,227
50% 49.8% 44,230 44,071
40% 39.5% 35,384 34,921
30% 30.5% 26,538 26,937
20% 20.6% 17,692 18,187
10% 10.6% 8,846 9,356
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
