Lenovo Global Technology ThinkSystem SN550 ssj_ops@100% = 5,031,220
ssj_ops@100% per JVM = 89,843
Test Sponsor: Lenovo Global Technology SPEC License #: 9017 Test Method: Multi Node
Tested By: Lenovo Global Technology Test Location: Beijing, Beijing, China Test Date: Oct 11, 2017
Hardware Availability: Aug-2017 Software Availability: Jan-2015 Publication: Oct 25, 2017
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,254,128
Calibration 2     5,043,106
Calibration 3     5,040,954
ssj_ops@calibrated=5,042,030
100% 99.8% 5,042,030 5,031,220
90% 90.3% 4,537,827 4,551,714
80% 80.1% 4,033,624 4,038,812
70% 70.0% 3,529,421 3,527,937
60% 60.0% 3,025,218 3,024,941
50% 50.0% 2,521,015 2,520,201
40% 39.9% 2,016,812 2,012,313
30% 30.0% 1,512,609 1,512,791
20% 20.0% 1,008,406 1,007,033
10% 10.0% 504,203 503,309
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: 'SUT'
Hardware
Hardware Vendor: Lenovo Global Technology
Model: ThinkSystem SN550
Form Factor: 10U
CPU Name: Intel Xeon Platinum 8176
CPU Characteristics: 28 Core, 2.10GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2100
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16 GB
Memory Details: 16GB 2Rx8 PC4-2666V-RE1-12-MA0; slots 1,3,5,8,10,12,13,15,17,20,22 and 24 for each processor
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: 1 x 32GB M.2 SSD (Lenovo P/N SSD7A20774)
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel Ethernet Connection X722 for 10GBASE-T
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 DataCenter
OS Version: Version 6.3.9600 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xss256k -Xmn1300m -Xms1550m -Xmx1550m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=2 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE[0,2] /AFFINITY[3,C,30,C0,C000,30000,C0000,30000000,C0000000,300000000,C00000000,C0000000000,300000000000,C00000000000];start /NODE[1,3] /AFFINITY[3,C,30,3000,C000,30000,C0000,300000000,C0000000,300000000,30000000000,C0000000000,300000000000,C00000000000]
JVM Instances: 56
JVM Initial Heap (MB): 1550
JVM Maximum Heap (MB): 1550
JVM Address Bits: 64
Boot Firmware Version: IVE111C
Management Firmware Version: TEI307N
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
none
System Under Test Notes
Notes
SPECpower_ssj.props input.load_level.number_warehouses set to 112 due to a known inconsistency in processor reporting with this Java version.
JVM Instance Summary
JVM Instance ssj_ops@100%
R5-188.001 89,458
R5-188.002 89,885
R5-188.003 90,627
R5-188.004 88,943
R5-188.005 91,156
R5-188.006 91,290
R5-188.007 90,067
R5-188.008 91,119
R5-188.009 91,046
R5-188.010 90,283
R5-188.011 88,336
R5-188.012 90,755
R5-188.013 91,379
R5-188.014 91,879
R5-188.015 90,728
R5-188.016 90,576
R5-188.017 89,803
R5-188.018 90,838
R5-188.019 89,816
R5-188.020 90,510
R5-188.021 89,283
R5-188.022 91,826
R5-188.023 92,282
R5-188.024 89,834
R5-188.025 90,664
R5-188.026 91,347
R5-188.027 89,648
R5-188.028 89,307
R5-188.029 88,969
R5-188.030 88,881
R5-188.031 88,699
R5-188.032 89,324
R5-188.033 90,018
R5-188.034 89,000
R5-188.035 88,307
R5-188.036 90,131
R5-188.037 89,829
R5-188.038 89,403
R5-188.039 87,300
R5-188.040 88,433
R5-188.041 89,964
R5-188.042 89,395
R5-188.043 90,000
R5-188.044 90,372
R5-188.045 89,794
R5-188.046 87,615
R5-188.047 88,003
R5-188.048 89,518
R5-188.049 91,153
R5-188.050 89,371
R5-188.051 88,130
R5-188.052 89,649
R5-188.053 89,988
R5-188.054 90,452
R5-188.055 88,381
R5-188.056 88,456
ssj_ops@100% 5,031,220
ssj_ops@100% per JVM 89,843

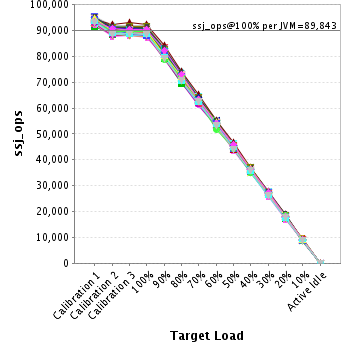

Graph of per-instance results
JVM 'R5-188.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,381
Calibration 2     89,617
Calibration 3     89,779
ssj_ops@calibrated=89,698
100% 99.7% 89,698 89,458
90% 90.3% 80,729 81,000
80% 80.3% 71,759 72,039
70% 70.2% 62,789 62,945
60% 60.2% 53,819 53,959
50% 50.8% 44,849 45,569
40% 39.9% 35,879 35,831
30% 30.5% 26,910 27,351
20% 19.6% 17,940 17,614
10% 10.1% 8,970 9,074
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,259
Calibration 2     89,937
Calibration 3     89,935
ssj_ops@calibrated=89,936
100% 99.9% 89,936 89,885
90% 90.1% 80,942 81,047
80% 79.9% 71,949 71,853
70% 69.8% 62,955 62,803
60% 59.5% 53,962 53,543
50% 49.9% 44,968 44,912
40% 39.6% 35,974 35,584
30% 30.3% 26,981 27,255
20% 20.1% 17,987 18,100
10% 10.0% 8,994 9,030
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,924
Calibration 2     90,536
Calibration 3     90,497
ssj_ops@calibrated=90,517
100% 100.1% 90,517 90,627
90% 91.3% 81,465 82,611
80% 79.5% 72,413 71,990
70% 70.1% 63,362 63,490
60% 59.9% 54,310 54,248
50% 49.8% 45,258 45,058
40% 40.0% 36,207 36,201
30% 29.2% 27,155 26,465
20% 19.8% 18,103 17,890
10% 10.2% 9,052 9,261
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,185
Calibration 2     88,119
Calibration 3     88,916
ssj_ops@calibrated=88,517
100% 100.5% 88,517 88,943
90% 90.4% 79,665 80,033
80% 79.8% 70,814 70,679
70% 70.8% 61,962 62,678
60% 60.4% 53,110 53,454
50% 50.2% 44,259 44,410
40% 39.6% 35,407 35,077
30% 29.6% 26,555 26,181
20% 20.2% 17,703 17,855
10% 10.2% 8,852 9,071
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.005' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,936
Calibration 2     91,674
Calibration 3     90,994
ssj_ops@calibrated=91,334
100% 99.8% 91,334 91,156
90% 88.8% 82,200 81,072
80% 79.9% 73,067 72,977
70% 70.1% 63,934 64,022
60% 59.8% 54,800 54,583
50% 50.0% 45,667 45,694
40% 39.9% 36,534 36,421
30% 29.7% 27,400 27,161
20% 19.7% 18,267 17,950
10% 9.7% 9,133 8,831
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.006' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,598
Calibration 2     91,460
Calibration 3     91,146
ssj_ops@calibrated=91,303
100% 100.0% 91,303 91,290
90% 90.1% 82,173 82,296
80% 79.7% 73,042 72,800
70% 70.7% 63,912 64,573
60% 60.2% 54,782 54,950
50% 50.8% 45,651 46,358
40% 40.0% 36,521 36,489
30% 30.4% 27,391 27,790
20% 20.1% 18,261 18,337
10% 10.0% 9,130 9,091
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.007' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,035
Calibration 2     89,950
Calibration 3     89,978
ssj_ops@calibrated=89,964
100% 100.1% 89,964 90,067
90% 89.2% 80,968 80,277
80% 80.5% 71,971 72,456
70% 70.5% 62,975 63,445
60% 59.9% 53,978 53,882
50% 49.5% 44,982 44,521
40% 39.3% 35,986 35,320
30% 30.5% 26,989 27,394
20% 20.0% 17,993 18,026
10% 10.2% 8,996 9,211
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.008' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,286
Calibration 2     91,515
Calibration 3     91,046
ssj_ops@calibrated=91,281
100% 99.8% 91,281 91,119
90% 89.6% 82,153 81,793
80% 80.2% 73,024 73,233
70% 69.5% 63,896 63,469
60% 60.3% 54,768 55,063
50% 49.8% 45,640 45,434
40% 39.9% 36,512 36,446
30% 30.4% 27,384 27,765
20% 19.7% 18,256 18,005
10% 9.7% 9,128 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.009' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,512
Calibration 2     90,654
Calibration 3     90,920
ssj_ops@calibrated=90,787
100% 100.3% 90,787 91,046
90% 90.5% 81,709 82,173
80% 79.9% 72,630 72,560
70% 69.4% 63,551 62,993
60% 58.8% 54,472 53,415
50% 50.2% 45,394 45,558
40% 39.5% 36,315 35,864
30% 30.4% 27,236 27,627
20% 20.1% 18,157 18,237
10% 10.4% 9,079 9,458
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.010' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,979
Calibration 2     90,195
Calibration 3     90,559
ssj_ops@calibrated=90,377
100% 99.9% 90,377 90,283
90% 90.2% 81,340 81,484
80% 80.7% 72,302 72,980
70% 68.9% 63,264 62,281
60% 61.1% 54,226 55,242
50% 49.1% 45,189 44,412
40% 41.0% 36,151 37,019
30% 30.1% 27,113 27,242
20% 20.1% 18,075 18,167
10% 9.8% 9,038 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.011' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,517
Calibration 2     88,614
Calibration 3     88,665
ssj_ops@calibrated=88,639
100% 99.7% 88,639 88,336
90% 89.2% 79,775 79,070
80% 78.5% 70,911 69,586
70% 70.3% 62,047 62,319
60% 60.4% 53,184 53,578
50% 50.7% 44,320 44,900
40% 39.9% 35,456 35,363
30% 30.4% 26,592 26,946
20% 19.6% 17,728 17,407
10% 10.2% 8,864 9,066
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.012' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,264
Calibration 2     90,992
Calibration 3     90,760
ssj_ops@calibrated=90,876
100% 99.9% 90,876 90,755
90% 89.5% 81,788 81,344
80% 80.1% 72,701 72,757
70% 69.8% 63,613 63,453
60% 60.4% 54,526 54,915
50% 48.6% 45,438 44,202
40% 40.5% 36,350 36,844
30% 29.2% 27,263 26,530
20% 20.0% 18,175 18,200
10% 10.4% 9,088 9,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

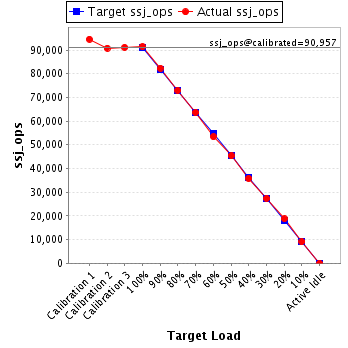

JVM 'R5-188.013' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,589
Calibration 2     90,814
Calibration 3     91,100
ssj_ops@calibrated=90,957
100% 100.5% 90,957 91,379
90% 90.6% 81,861 82,369
80% 80.2% 72,766 72,966
70% 70.1% 63,670 63,749
60% 58.6% 54,574 53,330
50% 49.9% 45,478 45,377
40% 39.4% 36,383 35,853
30% 30.1% 27,287 27,422
20% 20.6% 18,191 18,762
10% 10.0% 9,096 9,078
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.014' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,149
Calibration 2     91,483
Calibration 3     91,790
ssj_ops@calibrated=91,637
100% 100.3% 91,637 91,879
90% 89.8% 82,473 82,305
80% 80.8% 73,309 74,022
70% 70.1% 64,146 64,214
60% 60.2% 54,982 55,143
50% 49.4% 45,818 45,253
40% 40.1% 36,655 36,724
30% 29.9% 27,491 27,424
20% 20.0% 18,327 18,371
10% 9.6% 9,164 8,837
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.015' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,605
Calibration 2     91,600
Calibration 3     90,902
ssj_ops@calibrated=91,251
100% 99.4% 91,251 90,728
90% 91.3% 82,126 83,301
80% 80.1% 73,001 73,078
70% 70.1% 63,876 64,009
60% 59.6% 54,751 54,397
50% 50.3% 45,626 45,900
40% 40.0% 36,500 36,498
30% 29.8% 27,375 27,195
20% 20.0% 18,250 18,258
10% 10.1% 9,125 9,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.016' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,942
Calibration 2     90,995
Calibration 3     91,201
ssj_ops@calibrated=91,098
100% 99.4% 91,098 90,576
90% 91.5% 81,988 83,380
80% 79.5% 72,878 72,418
70% 70.2% 63,769 63,943
60% 59.8% 54,659 54,459
50% 49.5% 45,549 45,113
40% 39.8% 36,439 36,301
30% 29.6% 27,329 26,977
20% 20.0% 18,220 18,241
10% 10.0% 9,110 9,115
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.017' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,730
Calibration 2     89,214
Calibration 3     90,236
ssj_ops@calibrated=89,725
100% 100.1% 89,725 89,803
90% 90.8% 80,752 81,433
80% 79.5% 71,780 71,359
70% 70.6% 62,807 63,307
60% 59.9% 53,835 53,712
50% 49.9% 44,862 44,768
40% 40.1% 35,890 36,011
30% 29.5% 26,917 26,489
20% 20.1% 17,945 18,004
10% 9.6% 8,972 8,641
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.018' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,065
Calibration 2     91,016
Calibration 3     91,048
ssj_ops@calibrated=91,032
100% 99.8% 91,032 90,838
90% 89.9% 81,929 81,841
80% 79.7% 72,826 72,528
70% 69.2% 63,722 63,020
60% 60.6% 54,619 55,141
50% 50.1% 45,516 45,630
40% 39.7% 36,413 36,140
30% 29.5% 27,310 26,851
20% 19.6% 18,206 17,832
10% 10.2% 9,103 9,320
Active Idle   0 0

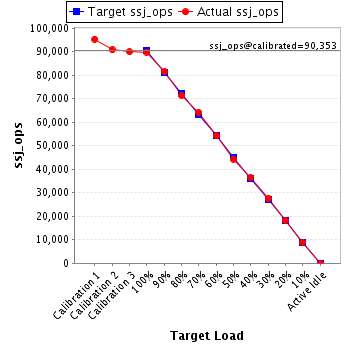

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.019' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,321
Calibration 2     90,750
Calibration 3     89,956
ssj_ops@calibrated=90,353
100% 99.4% 90,353 89,816
90% 90.2% 81,318 81,522
80% 79.1% 72,282 71,444
70% 71.0% 63,247 64,186
60% 60.0% 54,212 54,216
50% 49.0% 45,176 44,288
40% 40.3% 36,141 36,434
30% 30.3% 27,106 27,363
20% 20.0% 18,071 18,104
10% 9.9% 9,035 8,945
Active Idle   0 0

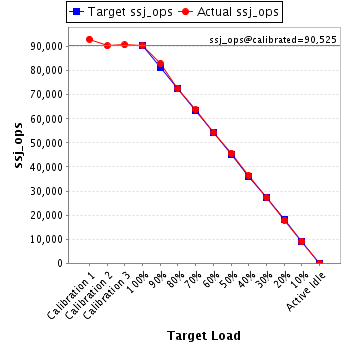

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.020' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,087
Calibration 2     90,320
Calibration 3     90,731
ssj_ops@calibrated=90,525
100% 100.0% 90,525 90,510
90% 91.7% 81,473 83,029
80% 80.2% 72,420 72,610
70% 70.5% 63,368 63,787
60% 60.1% 54,315 54,404
50% 50.5% 45,263 45,692
40% 40.2% 36,210 36,428
30% 30.1% 27,158 27,255
20% 19.7% 18,105 17,848
10% 10.1% 9,053 9,112
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.021' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,533
Calibration 2     89,402
Calibration 3     89,340
ssj_ops@calibrated=89,371
100% 99.9% 89,371 89,283
90% 91.4% 80,434 81,670
80% 80.7% 71,497 72,123
70% 70.8% 62,560 63,280
60% 60.3% 53,623 53,913
50% 50.3% 44,686 44,975
40% 40.0% 35,748 35,792
30% 29.9% 26,811 26,724
20% 20.1% 17,874 17,941
10% 10.1% 8,937 9,036
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.022' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,322
Calibration 2     91,760
Calibration 3     91,913
ssj_ops@calibrated=91,836
100% 100.0% 91,836 91,826
90% 90.7% 82,652 83,266
80% 79.5% 73,469 72,976
70% 69.4% 64,285 63,693
60% 60.1% 55,102 55,171
50% 50.1% 45,918 45,981
40% 39.8% 36,734 36,563
30% 30.0% 27,551 27,550
20% 20.0% 18,367 18,332
10% 9.8% 9,184 9,037
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.023' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,374
Calibration 2     92,459
Calibration 3     92,900
ssj_ops@calibrated=92,680
100% 99.6% 92,680 92,282
90% 90.8% 83,412 84,187
80% 79.9% 74,144 74,041
70% 70.3% 64,876 65,141
60% 59.5% 55,608 55,147
50% 50.2% 46,340 46,497
40% 39.8% 37,072 36,901
30% 29.8% 27,804 27,609
20% 20.2% 18,536 18,712
10% 9.6% 9,268 8,929
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.024' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,830
Calibration 2     91,224
Calibration 3     90,112
ssj_ops@calibrated=90,668
100% 99.1% 90,668 89,834
90% 89.0% 81,601 80,726
80% 80.5% 72,535 73,012
70% 69.5% 63,468 62,974
60% 60.4% 54,401 54,797
50% 50.1% 45,334 45,447
40% 39.8% 36,267 36,059
30% 29.7% 27,200 26,884
20% 19.8% 18,134 17,988
10% 10.1% 9,067 9,162
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.025' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,535
Calibration 2     90,998
Calibration 3     90,963
ssj_ops@calibrated=90,981
100% 99.7% 90,981 90,664
90% 90.7% 81,883 82,557
80% 79.6% 72,784 72,446
70% 70.3% 63,686 63,930
60% 60.3% 54,588 54,899
50% 50.2% 45,490 45,693
40% 39.7% 36,392 36,101
30% 29.8% 27,294 27,118
20% 19.6% 18,196 17,857
10% 10.3% 9,098 9,329
Active Idle   0 0

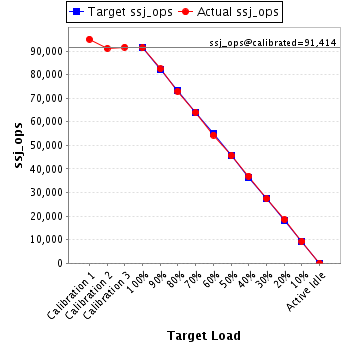

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.026' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,041
Calibration 2     91,159
Calibration 3     91,669
ssj_ops@calibrated=91,414
100% 99.9% 91,414 91,347
90% 90.2% 82,273 82,455
80% 79.8% 73,131 72,972
70% 70.1% 63,990 64,067
60% 59.5% 54,848 54,385
50% 49.9% 45,707 45,653
40% 40.4% 36,566 36,961
30% 30.0% 27,424 27,404
20% 20.3% 18,283 18,558
10% 10.2% 9,141 9,300
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.027' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,267
Calibration 2     89,657
Calibration 3     89,546
ssj_ops@calibrated=89,601
100% 100.1% 89,601 89,648
90% 90.4% 80,641 80,984
80% 81.0% 71,681 72,602
70% 70.3% 62,721 62,973
60% 59.4% 53,761 53,186
50% 49.7% 44,801 44,530
40% 40.3% 35,841 36,067
30% 29.9% 26,880 26,833
20% 20.0% 17,920 17,879
10% 9.5% 8,960 8,487
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.028' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,415
Calibration 2     89,525
Calibration 3     89,186
ssj_ops@calibrated=89,355
100% 99.9% 89,355 89,307
90% 89.7% 80,420 80,173
80% 79.2% 71,484 70,772
70% 70.8% 62,549 63,302
60% 60.3% 53,613 53,911
50% 49.9% 44,678 44,618
40% 39.4% 35,742 35,234
30% 30.6% 26,807 27,325
20% 20.0% 17,871 17,895
10% 10.1% 8,936 9,045
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.029' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,005
Calibration 2     89,143
Calibration 3     89,006
ssj_ops@calibrated=89,075
100% 99.9% 89,075 88,969
90% 89.0% 80,167 79,235
80% 81.1% 71,260 72,219
70% 69.3% 62,352 61,771
60% 60.8% 53,445 54,131
50% 49.5% 44,537 44,094
40% 39.6% 35,630 35,294
30% 30.3% 26,722 26,957
20% 20.1% 17,815 17,937
10% 9.9% 8,907 8,804
Active Idle   0 0

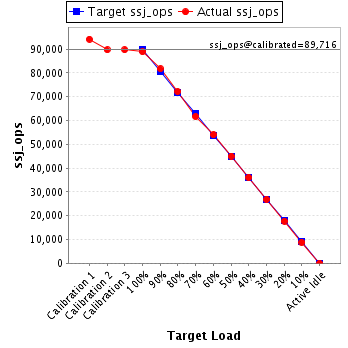

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.030' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,218
Calibration 2     89,711
Calibration 3     89,722
ssj_ops@calibrated=89,716
100% 99.1% 89,716 88,881
90% 91.2% 80,745 81,789
80% 80.5% 71,773 72,221
70% 68.8% 62,801 61,690
60% 60.2% 53,830 54,025
50% 50.2% 44,858 45,058
40% 40.2% 35,886 36,069
30% 30.0% 26,915 26,936
20% 19.8% 17,943 17,737
10% 9.8% 8,972 8,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.031' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,204
Calibration 2     89,275
Calibration 3     88,852
ssj_ops@calibrated=89,064
100% 99.6% 89,064 88,699
90% 90.9% 80,157 80,982
80% 80.2% 71,251 71,431
70% 70.6% 62,345 62,878
60% 60.8% 53,438 54,137
50% 50.8% 44,532 45,211
40% 40.3% 35,625 35,889
30% 30.7% 26,719 27,338
20% 20.0% 17,813 17,791
10% 10.2% 8,906 9,103
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.032' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,103
Calibration 2     90,315
Calibration 3     89,491
ssj_ops@calibrated=89,903
100% 99.4% 89,903 89,324
90% 91.3% 80,913 82,078
80% 80.5% 71,922 72,381
70% 69.3% 62,932 62,301
60% 58.5% 53,942 52,617
50% 50.3% 44,952 45,260
40% 39.9% 35,961 35,909
30% 30.2% 26,971 27,135
20% 19.9% 17,981 17,916
10% 10.3% 8,990 9,246
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.033' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,422
Calibration 2     90,094
Calibration 3     90,611
ssj_ops@calibrated=90,353
100% 99.6% 90,353 90,018
90% 90.8% 81,317 82,021
80% 79.3% 72,282 71,648
70% 69.8% 63,247 63,057
60% 59.5% 54,212 53,719
50% 49.9% 45,176 45,125
40% 39.5% 36,141 35,698
30% 30.6% 27,106 27,691
20% 20.0% 18,071 18,050
10% 9.9% 9,035 8,925
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.034' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,703
Calibration 2     89,239
Calibration 3     89,186
ssj_ops@calibrated=89,212
100% 99.8% 89,212 89,000
90% 89.3% 80,291 79,682
80% 80.8% 71,370 72,098
70% 69.4% 62,449 61,911
60% 60.0% 53,527 53,542
50% 50.8% 44,606 45,315
40% 40.8% 35,685 36,383
30% 30.3% 26,764 27,036
20% 20.0% 17,842 17,813
10% 9.9% 8,921 8,821
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.035' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,221
Calibration 2     88,253
Calibration 3     88,686
ssj_ops@calibrated=88,469
100% 99.8% 88,469 88,307
90% 89.9% 79,622 79,518
80% 80.5% 70,775 71,174
70% 69.9% 61,928 61,808
60% 60.6% 53,081 53,638
50% 49.9% 44,235 44,172
40% 39.5% 35,388 34,979
30% 29.5% 26,541 26,062
20% 19.7% 17,694 17,457
10% 9.8% 8,847 8,686
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.036' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     95,444
Calibration 2     90,488
Calibration 3     90,443
ssj_ops@calibrated=90,466
100% 99.6% 90,466 90,131
90% 90.3% 81,419 81,658
80% 80.3% 72,373 72,634
70% 69.5% 63,326 62,847
60% 59.6% 54,279 53,907
50% 49.2% 45,233 44,533
40% 39.7% 36,186 35,912
30% 30.4% 27,140 27,495
20% 19.8% 18,093 17,954
10% 9.8% 9,047 8,829
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.037' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,650
Calibration 2     90,331
Calibration 3     90,203
ssj_ops@calibrated=90,267
100% 99.5% 90,267 89,829
90% 89.2% 81,241 80,545
80% 80.1% 72,214 72,326
70% 69.9% 63,187 63,053
60% 59.4% 54,160 53,654
50% 50.0% 45,134 45,171
40% 39.7% 36,107 35,816
30% 30.3% 27,080 27,358
20% 20.0% 18,053 18,057
10% 10.0% 9,027 9,017
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.038' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,983
Calibration 2     89,725
Calibration 3     89,482
ssj_ops@calibrated=89,603
100% 99.8% 89,603 89,403
90% 90.6% 80,643 81,163
80% 80.4% 71,683 72,021
70% 69.8% 62,722 62,575
60% 60.7% 53,762 54,358
50% 49.6% 44,802 44,422
40% 39.3% 35,841 35,190
30% 30.2% 26,881 27,087
20% 20.4% 17,921 18,304
10% 9.9% 8,960 8,883
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.039' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,244
Calibration 2     87,626
Calibration 3     87,860
ssj_ops@calibrated=87,743
100% 99.5% 87,743 87,300
90% 91.3% 78,969 80,100
80% 80.3% 70,194 70,468
70% 69.8% 61,420 61,277
60% 60.2% 52,646 52,799
50% 49.5% 43,871 43,475
40% 39.8% 35,097 34,901
30% 29.5% 26,323 25,907
20% 19.4% 17,549 16,992
10% 9.8% 8,774 8,616
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.040' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,775
Calibration 2     88,795
Calibration 3     88,672
ssj_ops@calibrated=88,733
100% 99.7% 88,733 88,433
90% 89.8% 79,860 79,680
80% 80.5% 70,987 71,422
70% 70.0% 62,113 62,135
60% 60.6% 53,240 53,729
50% 49.4% 44,367 43,846
40% 39.4% 35,493 34,989
30% 30.2% 26,620 26,808
20% 19.7% 17,747 17,453
10% 10.3% 8,873 9,145
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.041' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,499
Calibration 2     90,120
Calibration 3     90,539
ssj_ops@calibrated=90,329
100% 99.6% 90,329 89,964
90% 90.4% 81,296 81,633
80% 80.7% 72,263 72,887
70% 69.2% 63,231 62,510
60% 60.1% 54,198 54,311
50% 50.1% 45,165 45,283
40% 39.9% 36,132 36,078
30% 29.6% 27,099 26,703
20% 19.9% 18,066 17,951
10% 9.7% 9,033 8,758
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.042' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,511
Calibration 2     89,010
Calibration 3     89,735
ssj_ops@calibrated=89,373
100% 100.0% 89,373 89,395
90% 90.8% 80,435 81,192
80% 80.3% 71,498 71,761
70% 70.5% 62,561 62,979
60% 60.3% 53,624 53,933
50% 49.8% 44,686 44,494
40% 39.3% 35,749 35,155
30% 30.0% 26,812 26,847
20% 20.2% 17,875 18,053
10% 9.7% 8,937 8,696
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.043' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,759
Calibration 2     90,189
Calibration 3     89,584
ssj_ops@calibrated=89,886
100% 100.1% 89,886 90,000
90% 89.9% 80,898 80,843
80% 79.3% 71,909 71,245
70% 69.6% 62,920 62,526
60% 59.5% 53,932 53,490
50% 48.9% 44,943 43,939
40% 40.5% 35,955 36,397
30% 30.5% 26,966 27,427
20% 20.0% 17,977 18,002
10% 9.9% 8,989 8,888
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.044' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,871
Calibration 2     90,601
Calibration 3     90,656
ssj_ops@calibrated=90,628
100% 99.7% 90,628 90,372
90% 90.6% 81,565 82,138
80% 79.8% 72,503 72,317
70% 70.6% 63,440 63,999
60% 59.4% 54,377 53,831
50% 49.8% 45,314 45,146
40% 40.0% 36,251 36,233
30% 30.0% 27,188 27,201
20% 19.4% 18,126 17,602
10% 10.0% 9,063 9,054
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.045' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,973
Calibration 2     90,087
Calibration 3     90,015
ssj_ops@calibrated=90,051
100% 99.7% 90,051 89,794
90% 90.4% 81,046 81,447
80% 80.3% 72,041 72,290
70% 70.2% 63,036 63,242
60% 60.5% 54,031 54,477
50% 50.3% 45,025 45,335
40% 39.7% 36,020 35,782
30% 29.5% 27,015 26,590
20% 20.5% 18,010 18,475
10% 10.0% 9,005 8,962
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.046' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,490
Calibration 2     88,036
Calibration 3     87,850
ssj_ops@calibrated=87,943
100% 99.6% 87,943 87,615
90% 91.4% 79,149 80,370
80% 80.2% 70,354 70,518
70% 70.6% 61,560 62,121
60% 60.3% 52,766 53,025
50% 50.8% 43,971 44,670
40% 40.0% 35,177 35,180
30% 29.6% 26,383 26,053
20% 19.8% 17,589 17,421
10% 10.1% 8,794 8,859
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.047' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,555
Calibration 2     87,957
Calibration 3     88,242
ssj_ops@calibrated=88,100
100% 99.9% 88,100 88,003
90% 89.5% 79,290 78,852
80% 79.5% 70,480 70,063
70% 69.2% 61,670 60,986
60% 59.9% 52,860 52,798
50% 51.2% 44,050 45,063
40% 40.2% 35,240 35,453
30% 30.0% 26,430 26,396
20% 20.0% 17,620 17,652
10% 9.9% 8,810 8,694
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.048' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,176
Calibration 2     89,653
Calibration 3     90,211
ssj_ops@calibrated=89,932
100% 99.5% 89,932 89,518
90% 92.3% 80,939 83,022
80% 80.7% 71,946 72,568
70% 70.0% 62,953 62,986
60% 60.3% 53,959 54,241
50% 50.2% 44,966 45,180
40% 40.4% 35,973 36,374
30% 30.3% 26,980 27,282
20% 19.5% 17,986 17,567
10% 9.8% 8,993 8,791
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.049' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,852
Calibration 2     91,272
Calibration 3     91,244
ssj_ops@calibrated=91,258
100% 99.9% 91,258 91,153
90% 90.8% 82,133 82,873
80% 80.4% 73,007 73,340
70% 69.4% 63,881 63,362
60% 60.1% 54,755 54,890
50% 49.7% 45,629 45,378
40% 40.2% 36,503 36,669
30% 29.9% 27,378 27,297
20% 20.6% 18,252 18,835
10% 10.1% 9,126 9,179
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.050' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,985
Calibration 2     89,578
Calibration 3     89,426
ssj_ops@calibrated=89,502
100% 99.9% 89,502 89,371
90% 89.8% 80,551 80,394
80% 80.1% 71,601 71,708
70% 69.0% 62,651 61,797
60% 60.2% 53,701 53,916
50% 50.5% 44,751 45,216
40% 39.5% 35,801 35,331
30% 30.1% 26,850 26,982
20% 20.2% 17,900 18,054
10% 10.1% 8,950 9,069
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.051' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,288
Calibration 2     90,403
Calibration 3     88,693
ssj_ops@calibrated=89,548
100% 98.4% 89,548 88,130
90% 89.8% 80,593 80,393
80% 80.7% 71,638 72,310
70% 69.8% 62,684 62,485
60% 60.2% 53,729 53,872
50% 49.6% 44,774 44,374
40% 39.7% 35,819 35,540
30% 29.9% 26,864 26,734
20% 20.2% 17,910 18,067
10% 10.0% 8,955 8,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.052' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,854
Calibration 2     89,455
Calibration 3     89,394
ssj_ops@calibrated=89,425
100% 100.3% 89,425 89,649
90% 88.1% 80,482 78,770
80% 80.9% 71,540 72,344
70% 70.0% 62,597 62,618
60% 58.0% 53,655 51,858
50% 49.5% 44,712 44,270
40% 39.2% 35,770 35,086
30% 30.0% 26,827 26,870
20% 20.6% 17,885 18,413
10% 9.9% 8,942 8,881
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.053' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     94,768
Calibration 2     90,119
Calibration 3     89,831
ssj_ops@calibrated=89,975
100% 100.0% 89,975 89,988
90% 89.2% 80,978 80,253
80% 80.2% 71,980 72,203
70% 70.2% 62,983 63,150
60% 60.4% 53,985 54,334
50% 50.4% 44,988 45,374
40% 40.6% 35,990 36,533
30% 29.8% 26,993 26,857
20% 19.9% 17,995 17,950
10% 10.1% 8,998 9,062
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.054' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,322
Calibration 2     90,614
Calibration 3     90,482
ssj_ops@calibrated=90,548
100% 99.9% 90,548 90,452
90% 90.8% 81,493 82,174
80% 80.7% 72,438 73,050
70% 70.0% 63,384 63,388
60% 59.8% 54,329 54,124
50% 50.6% 45,274 45,850
40% 39.9% 36,219 36,153
30% 30.3% 27,164 27,404
20% 20.1% 18,110 18,195
10% 10.0% 9,055 9,083
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.055' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,356
Calibration 2     88,795
Calibration 3     88,228
ssj_ops@calibrated=88,511
100% 99.9% 88,511 88,381
90% 90.6% 79,660 80,210
80% 79.3% 70,809 70,181
70% 70.0% 61,958 61,919
60% 60.4% 53,107 53,435
50% 50.5% 44,256 44,670
40% 39.7% 35,405 35,132
30% 29.3% 26,553 25,974
20% 19.5% 17,702 17,252
10% 9.9% 8,851 8,800
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'R5-188.056' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     93,218
Calibration 2     88,581
Calibration 3     88,824
ssj_ops@calibrated=88,702
100% 99.7% 88,702 88,456
90% 89.4% 79,832 79,302
80% 79.7% 70,962 70,708
70% 70.5% 62,092 62,521
60% 59.9% 53,221 53,107
50% 49.4% 44,351 43,836
40% 40.2% 35,481 35,664
30% 29.6% 26,611 26,233
20% 20.0% 17,740 17,712
10% 10.0% 8,870 8,858
Active Idle   0 0

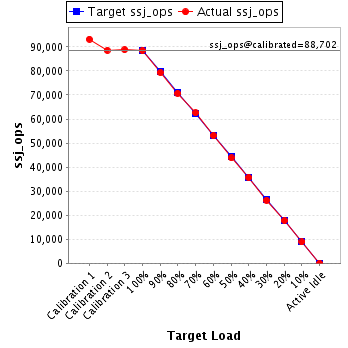

Graph of results
See the JVM Instance Performance Report for additional details.
