SPECpower_ssj2008 Host 'Node04' Performance Report

SPECpower_ssj2008

Host 'Node04' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,602,013 ssj_ops@100% per JVM = 1,450,252
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Apr 10, 2018
Hardware Availability:	Jun-2018	Software Availability:	Mar-2018	Publication:	Apr 26, 2018
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,622,810
Calibration 2			11,627,404
Calibration 3			11,622,399
ssj_ops@calibrated=11,624,901
100%	99.8%	11,624,901	11,602,013
90%	89.8%	10,462,411	10,444,829
80%	80.0%	9,299,921	9,301,328
70%	70.0%	8,137,431	8,137,746
60%	60.0%	6,974,941	6,971,770
50%	49.9%	5,812,451	5,806,454
40%	40.0%	4,649,961	4,649,190
30%	30.0%	3,487,470	3,488,358
20%	20.0%	2,324,980	2,325,127
10%	10.0%	1,162,490	1,163,854
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	6
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	Other
CPU Name:	Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics:	28-Core, 2.50 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2500
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2666-V ECC; slots 1, 3, 5, 8, 10 and 12 populated on each CPU socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	1 x HPE 480GB SATA 6G Read Intensive M.2 (875319-B21)
Disk Controller:	1 x HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb 2-port Converged Network Adapter (777430-B21)
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=30 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,2,4,6] /AFFINITY [0x0000000FC0FF, 0xFC0FF0000000]; start /NODE [1,3,5,7] /AFFINITY [0x0000000FF03F,0xFF03F0000000]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v1.32 (02/01/2018)
Management Firmware Version:	1.15 August 17 2017
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Composer Version 3.10.07 (HPE OneView) with HPE Synergy Custom SPP Bundle 2017.10.20180323; Microsoft Windows KB4054519, KB4056898

Boot Firmware Settings

USB Control: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled
SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled
x2APIC: Disabled
Memory Refresh Rate: 1x Refresh
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Power Regulator: OS Control
Energy Performance Bias: Balanced Power
Turbo Boost Technology: Disabled
Collaborative Power Control: Disabled
DMI Link Frequency: Gen 1
Sub-NUMA Clustering: Enabled
Intel NIC DMA Channels (IOAT): Disabled
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
DCU IP Prefetcher: Disabled
LLC Prefetcher: Disabled
XPT Prefetcher: Enabled
UPI Link Frequency: Min UPI Speed
Maximum PCI Express Speed: PCIe Generation 1.0
Embedded SATA Configuration: Smart Array SW RAID Support
Embedded SATA Controller #1: Disabled
AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Using the local security settings console, "lock pages in memory" was enabled for the user running the benchmark.
Run initiated via Windows Remote Desktop Connection
SPECpower_ssj.props input.load_level.number_warehouses set to 224 due to a known inconsistency in processor reporting with this Java version.
Windows Power Plan = Balanced
Turn off display = 1 minute
Turn off hard disk = 1 minute
Processor power management: Minimum Processor State = 0%, Maximum Processor State = 100%
System cooling policy = Active
Synergy Frame Power Supply mode set to Redundant Power Supply via HPE OneView.

Applied protection against speculative execution as explained in https://support.microsoft.com/en-us/help/4072698/windows-server-guidance-to-protect-against-the-speculative-execution (Last Updated: Feb 28, 2018)
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
Node04.001	1,456,517
Node04.002	1,447,819
Node04.003	1,446,587
Node04.004	1,452,445
Node04.005	1,464,503
Node04.006	1,459,583
Node04.007	1,441,947
Node04.008	1,432,611
ssj_ops@100%	11,602,013
ssj_ops@100% per JVM	1,450,252

JVM 'Node04.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,460,882
Calibration 2			1,461,079
Calibration 3			1,459,947
ssj_ops@calibrated=1,460,513
100%	99.7%	1,460,513	1,456,517
90%	89.8%	1,314,462	1,311,878
80%	79.9%	1,168,411	1,166,347
70%	69.9%	1,022,359	1,021,497
60%	59.8%	876,308	874,050
50%	50.1%	730,257	731,515
40%	40.0%	584,205	583,886
30%	30.1%	438,154	439,483
20%	20.0%	292,103	291,763
10%	10.1%	146,051	147,669
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,451,535
Calibration 2			1,449,491
Calibration 3			1,449,630
ssj_ops@calibrated=1,449,561
100%	99.9%	1,449,561	1,447,819
90%	89.8%	1,304,604	1,301,920
80%	80.0%	1,159,648	1,159,230
70%	70.0%	1,014,692	1,014,698
60%	59.9%	869,736	868,100
50%	50.0%	724,780	724,533
40%	39.8%	579,824	577,386
30%	30.0%	434,868	435,554
20%	20.0%	289,912	289,408
10%	10.0%	144,956	144,715
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,446,890
Calibration 2			1,450,885
Calibration 3			1,450,845
ssj_ops@calibrated=1,450,865
100%	99.7%	1,450,865	1,446,587
90%	89.9%	1,305,779	1,304,974
80%	80.1%	1,160,692	1,161,725
70%	70.0%	1,015,606	1,015,664
60%	60.0%	870,519	871,032
50%	50.0%	725,433	724,856
40%	39.9%	580,346	578,706
30%	30.0%	435,260	435,273
20%	20.0%	290,173	290,554
10%	10.1%	145,087	146,746
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,457,155
Calibration 2			1,457,694
Calibration 3			1,455,050
ssj_ops@calibrated=1,456,372
100%	99.7%	1,456,372	1,452,445
90%	89.9%	1,310,735	1,309,059
80%	80.1%	1,165,098	1,166,782
70%	69.9%	1,019,460	1,018,449
60%	60.0%	873,823	874,199
50%	49.8%	728,186	725,171
40%	40.0%	582,549	582,042
30%	29.8%	436,912	434,082
20%	20.0%	291,274	291,259
10%	9.9%	145,637	144,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,464,546
Calibration 2			1,463,641
Calibration 3			1,466,568
ssj_ops@calibrated=1,465,104
100%	100.0%	1,465,104	1,464,503
90%	89.8%	1,318,594	1,315,595
80%	80.1%	1,172,083	1,173,031
70%	70.0%	1,025,573	1,026,086
60%	60.1%	879,063	880,191
50%	49.9%	732,552	730,894
40%	40.0%	586,042	585,355
30%	30.1%	439,531	440,765
20%	20.0%	293,021	292,476
10%	10.0%	146,510	146,854
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,459,394
Calibration 2			1,463,725
Calibration 3			1,462,146
ssj_ops@calibrated=1,462,936
100%	99.8%	1,462,936	1,459,583
90%	89.8%	1,316,642	1,314,200
80%	80.0%	1,170,349	1,170,062
70%	70.3%	1,024,055	1,027,736
60%	60.2%	877,761	880,890
50%	49.8%	731,468	729,104
40%	40.1%	585,174	587,019
30%	29.9%	438,881	438,107
20%	20.0%	292,587	292,217
10%	10.0%	146,294	147,006
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

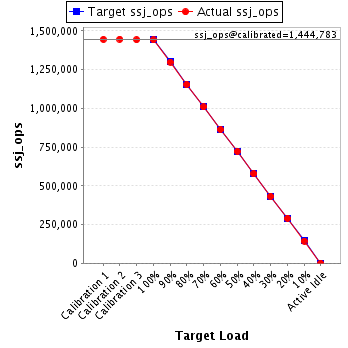

JVM 'Node04.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,445,784
Calibration 2			1,447,115
Calibration 3			1,442,452
ssj_ops@calibrated=1,444,783
100%	99.8%	1,444,783	1,441,947
90%	89.9%	1,300,305	1,299,370
80%	79.9%	1,155,827	1,154,396
70%	69.9%	1,011,348	1,009,448
60%	59.8%	866,870	864,141
50%	50.0%	722,392	722,650
40%	40.0%	577,913	577,420
30%	30.0%	433,435	433,097
20%	20.1%	288,957	290,619
10%	9.9%	144,478	143,606
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'Node04.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,626
Calibration 2			1,433,773
Calibration 3			1,435,761
ssj_ops@calibrated=1,434,767
100%	99.8%	1,434,767	1,432,611
90%	89.8%	1,291,290	1,287,832
80%	80.1%	1,147,814	1,149,754
70%	70.0%	1,004,337	1,004,169
60%	59.9%	860,860	859,166
50%	50.0%	717,383	717,732
40%	40.2%	573,907	577,377
30%	30.1%	430,430	431,996
20%	20.0%	286,953	286,832
10%	9.9%	143,477	142,441
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
