Sugon I620-G30 (Intel Xeon Gold 6152) SPECpower_ssj2008 = 9,825 overall ssj_ops/watt
Test Sponsor: Sugon SPEC License #: 9046 Test Method: Single Node
Tested By: Sugon Test Location: Beijing, CHN Test Date: May 27, 2018
Hardware Availability: Feb-2018 Software Availability: Jan-2018 Publication: Aug 15, 2018
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 364 28.4
Calibration 2 365 28.4
Calibration 3 365 28.4
100% 364 28.4
90% 334 28.4
80% 295 28.6
70% 243 28.6
60% 206 28.6
50% 183 28.7
40% 167 28.8
30% 150 28.8
20% 134 28.9
10% 117 28.9
Active Idle 53.1 28.9

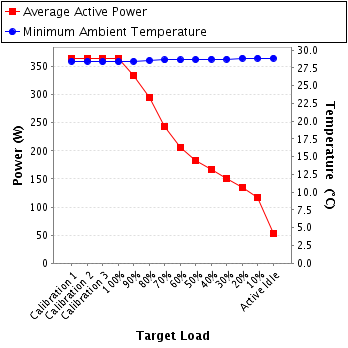

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: YOKOGAWA Meters and Instruments Corporation
Model: WT310E
Serial Number: C3UB14026E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: CNAS(China National Accreditation Service for Conformity Assessment)
Accredited by: National Institute of Metrology
Calibration Label: CSG06300180301-1145
Date of Calibration: 01-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connect to PSU1
Temperature Sensor temp1
Hardware Vendor: iButton Link Technology
Model: iButton Link T-Sense/T-Probe
Driver Version: 2.12.24.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10mm in front of SUT main airflow intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 1.64 5.0 0.990 364 0.3%
Calibration 2 225 300.0 1.64 5.0 0.990 365 0.3%
Calibration 3 225 300.0 1.64 5.0 0.990 365 0.3%
100% 226 300.0 1.63 2.0 0.990 364 0.2%
90% 226 300.0 1.50 2.0 0.988 334 0.2%
80% 227 300.0 1.32 2.0 0.984 295 0.2%
70% 227 300.0 1.10 2.0 0.976 243 0.3%
60% 226 300.0 0.937 2.0 0.972 206 0.3%
50% 226 300.0 0.839 1.0 0.966 183 0.2%
40% 227 300.0 0.766 1.0 0.959 167 0.3%
30% 227 300.0 0.698 1.0 0.951 150 0.3%
20% 225 300.0 0.632 1.0 0.941 134 0.3%
10% 226 300.0 0.559 0.5 0.929 117 0.2%
Active Idle 226 300.0 0.314 0.5 0.750 53.1 0.4%

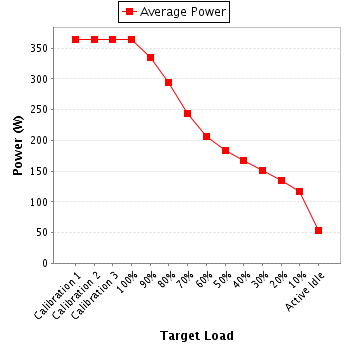

Power details for pwr1
