SPECpower_ssj2008 Host 'NODE02' Performance Report

SPECpower_ssj2008

Host 'NODE02' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,442,684 ssj_ops@100% per JVM = 1,430,336
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,489,647
Calibration 2			11,469,631
Calibration 3			11,480,932
ssj_ops@calibrated=11,475,281
100%	99.7%	11,475,281	11,442,684
90%	90.1%	10,327,753	10,333,726
80%	80.1%	9,180,225	9,186,984
70%	70.0%	8,032,697	8,027,392
60%	59.9%	6,885,169	6,878,433
50%	50.0%	5,737,641	5,742,659
40%	40.0%	4,590,113	4,590,752
30%	30.0%	3,442,584	3,442,851
20%	19.9%	2,295,056	2,288,490
10%	10.0%	1,147,528	1,148,651
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	2
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	Windows Server 2012 R2 Datacenter
OS Version:	Version 6.3 (Build 9600)
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019), Microsoft Windows KB4054519, and KB4056898

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: OS Control Mode
Intel Turbo Boost Technology: Enabled (default)
Energy Efficient Turbo: Enabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Balanced Power (default: Balanced Performance)
Collaborative Power Control: Enabled (default)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

Windows Power Options = Power Saver
Turn off Display = 1 Minute
Turn off hard disk = 1 Minute
System Cooling = Passive
Processor power management = Minimum Processor State = 0%
Maximum Processor State = 95%
PCI Express Power Management = Maximum Power Savings

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverride /t REG_DWORD /d 0 /f
reg add "HKEY_LOCAL_MACHINE\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management" /v FeatureSettingsOverrideMask /t REG_DWORD /d 3 /f

Notes

None

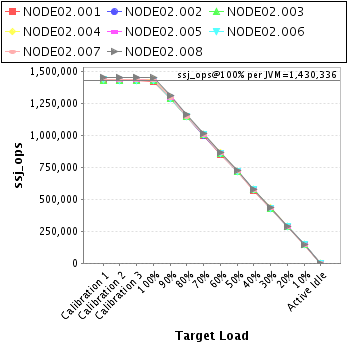

JVM Instance Summary

JVM Instance	ssj_ops@100%
NODE02.001	1,423,306
NODE02.002	1,429,766
NODE02.003	1,427,773
NODE02.004	1,433,241
NODE02.005	1,428,904
NODE02.006	1,424,117
NODE02.007	1,428,152
NODE02.008	1,447,427
ssj_ops@100%	11,442,684
ssj_ops@100% per JVM	1,430,336

JVM 'NODE02.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,605
Calibration 2			1,426,869
Calibration 3			1,429,390
ssj_ops@calibrated=1,428,129
100%	99.7%	1,428,129	1,423,306
90%	90.1%	1,285,316	1,286,202
80%	80.1%	1,142,504	1,144,437
70%	69.8%	999,691	996,228
60%	59.8%	856,878	853,331
50%	50.0%	714,065	713,425
40%	40.0%	571,252	570,830
30%	30.0%	428,439	428,603
20%	19.9%	285,626	284,448
10%	10.0%	142,813	142,660
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

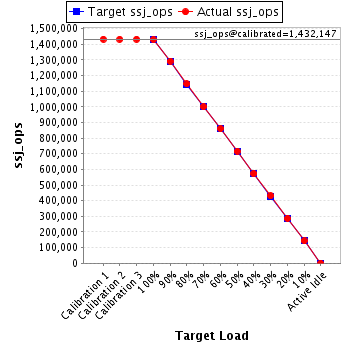

JVM 'NODE02.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,432,563
Calibration 2			1,431,783
Calibration 3			1,432,511
ssj_ops@calibrated=1,432,147
100%	99.8%	1,432,147	1,429,766
90%	90.2%	1,288,932	1,292,273
80%	80.1%	1,145,717	1,146,748
70%	69.8%	1,002,503	1,000,208
60%	60.1%	859,288	860,103
50%	50.1%	716,073	716,947
40%	40.0%	572,859	572,420
30%	30.1%	429,644	430,651
20%	20.0%	286,429	286,571
10%	10.0%	143,215	142,905
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,429,035
Calibration 2			1,430,780
Calibration 3			1,430,431
ssj_ops@calibrated=1,430,605
100%	99.8%	1,430,605	1,427,773
90%	90.0%	1,287,545	1,287,924
80%	80.2%	1,144,484	1,146,918
70%	70.1%	1,001,424	1,002,188
60%	59.9%	858,363	857,494
50%	50.1%	715,303	716,182
40%	40.0%	572,242	572,454
30%	29.9%	429,182	428,217
20%	19.9%	286,121	285,159
10%	10.1%	143,061	144,498
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

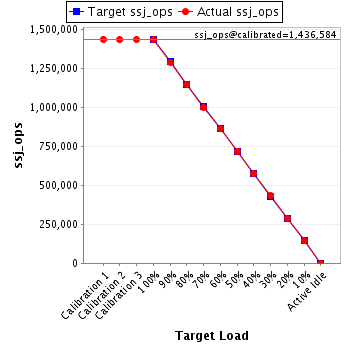

JVM 'NODE02.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,438,389
Calibration 2			1,436,191
Calibration 3			1,436,977
ssj_ops@calibrated=1,436,584
100%	99.8%	1,436,584	1,433,241
90%	89.9%	1,292,926	1,291,107
80%	79.9%	1,149,267	1,148,081
70%	69.8%	1,005,609	1,002,342
60%	60.0%	861,951	862,445
50%	50.1%	718,292	719,387
40%	40.0%	574,634	575,342
30%	30.1%	430,975	432,086
20%	20.0%	287,317	287,804
10%	10.0%	143,658	143,232
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

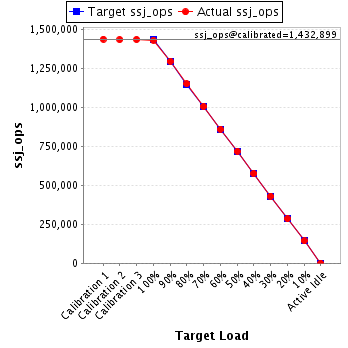

JVM 'NODE02.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,435,314
Calibration 2			1,432,767
Calibration 3			1,433,032
ssj_ops@calibrated=1,432,899
100%	99.7%	1,432,899	1,428,904
90%	90.3%	1,289,609	1,293,491
80%	80.2%	1,146,320	1,149,371
70%	70.1%	1,003,030	1,004,735
60%	60.0%	859,740	859,380
50%	50.1%	716,450	717,386
40%	40.1%	573,160	574,392
30%	30.0%	429,870	430,436
20%	19.8%	286,580	284,264
10%	10.0%	143,290	143,624
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,435,604
Calibration 2			1,430,036
Calibration 3			1,431,144
ssj_ops@calibrated=1,430,590
100%	99.5%	1,430,590	1,424,117
90%	89.7%	1,287,531	1,283,578
80%	80.0%	1,144,472	1,144,099
70%	70.2%	1,001,413	1,003,690
60%	60.1%	858,354	859,972
50%	50.0%	715,295	715,065
40%	40.1%	572,236	573,701
30%	30.0%	429,177	428,501
20%	19.9%	286,118	284,927
10%	10.1%	143,059	144,833
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,436,697
Calibration 2			1,431,731
Calibration 3			1,434,132
ssj_ops@calibrated=1,432,931
100%	99.7%	1,432,931	1,428,152
90%	90.2%	1,289,638	1,292,553
80%	79.8%	1,146,345	1,143,573
70%	70.1%	1,003,052	1,003,852
60%	60.0%	859,759	859,618
50%	50.1%	716,466	717,557
40%	39.9%	573,172	571,886
30%	30.0%	429,879	429,467
20%	19.9%	286,586	285,291
10%	9.9%	143,293	142,084
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'NODE02.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,452,439
Calibration 2			1,449,474
Calibration 3			1,453,316
ssj_ops@calibrated=1,451,395
100%	99.7%	1,451,395	1,447,427
90%	90.0%	1,306,255	1,306,599
80%	80.2%	1,161,116	1,163,756
70%	69.9%	1,015,976	1,014,150
60%	59.7%	870,837	866,090
50%	50.1%	725,697	726,711
40%	39.9%	580,558	579,726
30%	30.0%	435,418	434,890
20%	20.0%	290,279	290,026
10%	10.0%	145,139	144,816
Active Idle		0	0

See the JVM Instance Performance Report for additional details.
