SPECpower_ssj2008 Host 'SY660-01' Performance Report

SPECpower_ssj2008

Host 'SY660-01' Performance Report

Hewlett Packard Enterprise Synergy 660 Gen10 Compute Module			ssj_ops@100% = 11,810,345 ssj_ops@100% per JVM = 1,476,293
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Mar 10, 2019
Hardware Availability:	Apr-2019	Software Availability:	Mar-2019	Publication:	Apr 2, 2019
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			11,897,416
Calibration 2			11,838,806
Calibration 3			11,854,190
ssj_ops@calibrated=11,846,498
100%	99.7%	11,846,498	11,810,345
90%	90.0%	10,661,848	10,657,166
80%	80.3%	9,477,198	9,509,217
70%	69.9%	8,292,549	8,285,526
60%	59.9%	7,107,899	7,101,586
50%	50.0%	5,923,249	5,920,011
40%	40.0%	4,738,599	4,739,473
30%	30.0%	3,553,949	3,548,382
20%	20.0%	2,369,300	2,368,801
10%	10.0%	1,184,650	1,183,755
Active Idle		0	0

System Under Test

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	3
Comment:	SUT

Hardware
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 660 Gen10 Compute Module
Form Factor:	blade
CPU Name:	Intel Xeon Platinum 8280 @ 2.70GHz
CPU Characteristics:	28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz):	2700
CPU(s) Enabled:	112 cores, 4 chips, 28 cores/chip
Hardware Threads:	224 (2 / core)
CPU(s) Orderable:	1,2,3,4 chips
Primary Cache:	32 KB I + 32 KB D on chip per core
Secondary Cache:	1 MB I+D on chip per core
Tertiary Cache:	39424 KB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	384
# and size of DIMM:	24 x 16384 MB
Memory Details:	24 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	N/A
Disk Drive:	1 x HPE 480GB SATA 6G M.2 2280 (875498-B21)
Disk Controller:	HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/2/1
Network Speed (Mbit):	1000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 12 SP4
OS Version:	4.12.14-94.41-default
Filesystem:	NTFS
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options:	-server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity:	start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances:	8
JVM Initial Heap (MB):	21000
JVM Maximum Heap (MB):	21000
JVM Address Bits:	64
Boot Firmware Version:	I43 v2.10 (01/18/2019)
Management Firmware Version:	1.40 Feb 05 2019
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	HPE Service Pack for ProLiant (SPP) - Version 2019.03.0 (Mar 2019)

Boot Firmware Settings

Embedded Serial Port: Disabled
Virtual Serial Port: Disabled
BIOS Serial Console Port: Disabled

USB Support: All USB Ports Disabled
USB Boot Support: Disabled
Internal SD Card Slot: Disabled

x2APIC: Disabled

Memory Bus Frequency: 2400 MHz
Memory Patrol Scrubbing: Disabled

SR-IOV: Disabled
VT-D: Disabled
VT-x: Disabled

Smart Array SW RAID Support

Power Regulator: Dynamic Power Savings Mode (default)
Intel Turbo Boost Technology: Disabled
Energy Efficient Turbo: Disabled (default: Enabled if Turbo Enabled)
Energy Performance Bias: Power Savings Mode (default: Balanced Performance)
Collaborative Power Control: Disabled (default: Enabled)
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled

HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Enabled

Intel NIC DMA Channels (IOAT): Disabled

Intel UPI Link Frequency: Min UPI Speed

HPE Synergy 3820C 10/20Gb CNA: PCIe Generation 1

AHS PCI Logging Level: Minimal Logging

Management Firmware Settings

See SUT Notes

System Under Test Notes

systemctl stop irqbalance.service
echo 970000 > /proc/sys/kernel/sched_rt_runtime_us
echo 40000000 > /proc/sys/kernel/sched_latency_ns
echo 15000 > /proc/sys/vm/dirty_expire_centisecs
echo 64 > /proc/sys/kernel/sched_nr_migrate

N/A: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3640 (Variant 3a) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2018-3639 (Variant 4) is mitigated in the system as tested and documented.

Notes

None

JVM Instance Summary

JVM Instance	ssj_ops@100%
SY660-01.001	1,475,186
SY660-01.002	1,467,591
SY660-01.003	1,491,989
SY660-01.004	1,471,408
SY660-01.005	1,472,694
SY660-01.006	1,490,345
SY660-01.007	1,464,511
SY660-01.008	1,476,622
ssj_ops@100%	11,810,345
ssj_ops@100% per JVM	1,476,293

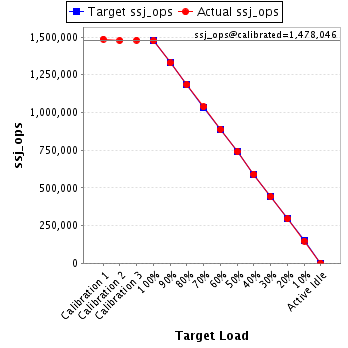

JVM 'SY660-01.001' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,485,686
Calibration 2			1,476,684
Calibration 3			1,479,407
ssj_ops@calibrated=1,478,046
100%	99.8%	1,478,046	1,475,186
90%	89.9%	1,330,241	1,328,867
80%	80.1%	1,182,437	1,184,423
70%	70.2%	1,034,632	1,037,679
60%	60.1%	886,827	887,856
50%	50.1%	739,023	740,533
40%	39.9%	591,218	590,473
30%	29.9%	443,414	441,742
20%	19.9%	295,609	294,554
10%	10.0%	147,805	147,361
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.002' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,480,695
Calibration 2			1,474,364
Calibration 3			1,477,440
ssj_ops@calibrated=1,475,902
100%	99.4%	1,475,902	1,467,591
90%	89.8%	1,328,312	1,324,943
80%	79.7%	1,180,722	1,176,079
70%	70.1%	1,033,132	1,034,023
60%	60.2%	885,541	887,825
50%	50.1%	737,951	739,759
40%	40.1%	590,361	591,513
30%	30.0%	442,771	443,172
20%	20.0%	295,180	295,663
10%	9.9%	147,590	146,267
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.003' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,498,037
Calibration 2			1,493,621
Calibration 3			1,496,841
ssj_ops@calibrated=1,495,231
100%	99.8%	1,495,231	1,491,989
90%	90.1%	1,345,708	1,347,825
80%	80.1%	1,196,185	1,197,368
70%	69.9%	1,046,662	1,045,780
60%	59.7%	897,138	892,818
50%	50.0%	747,615	747,499
40%	40.0%	598,092	597,642
30%	29.9%	448,569	447,174
20%	20.0%	299,046	299,282
10%	10.0%	149,523	149,503
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.004' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,481,965
Calibration 2			1,473,254
Calibration 3			1,476,847
ssj_ops@calibrated=1,475,050
100%	99.8%	1,475,050	1,471,408
90%	90.0%	1,327,545	1,327,404
80%	82.6%	1,180,040	1,217,744
70%	69.9%	1,032,535	1,031,046
60%	60.1%	885,030	886,690
50%	50.0%	737,525	736,885
40%	39.8%	590,020	587,644
30%	29.9%	442,515	440,481
20%	20.0%	295,010	294,977
10%	10.1%	147,505	148,302
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

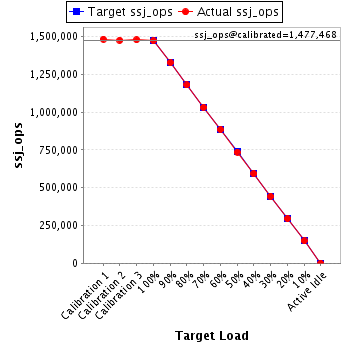

JVM 'SY660-01.005' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,483,416
Calibration 2			1,476,262
Calibration 3			1,478,673
ssj_ops@calibrated=1,477,468
100%	99.7%	1,477,468	1,472,694
90%	89.9%	1,329,721	1,328,604
80%	79.9%	1,181,974	1,180,068
70%	69.9%	1,034,227	1,032,275
60%	59.9%	886,481	885,154
50%	49.8%	738,734	736,471
40%	40.1%	590,987	592,660
30%	30.0%	443,240	443,786
20%	20.0%	295,494	294,783
10%	10.0%	147,747	147,881
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.006' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,499,730
Calibration 2			1,494,824
Calibration 3			1,490,668
ssj_ops@calibrated=1,492,746
100%	99.8%	1,492,746	1,490,345
90%	89.9%	1,343,472	1,341,315
80%	80.0%	1,194,197	1,193,555
70%	69.6%	1,044,922	1,039,452
60%	59.9%	895,648	893,550
50%	49.9%	746,373	744,768
40%	40.0%	597,099	596,560
30%	30.0%	447,824	447,816
20%	20.0%	298,549	298,719
10%	10.0%	149,275	149,615
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.007' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,476,665
Calibration 2			1,465,502
Calibration 3			1,467,862
ssj_ops@calibrated=1,466,682
100%	99.9%	1,466,682	1,464,511
90%	90.1%	1,320,014	1,321,001
80%	79.8%	1,173,346	1,170,627
70%	70.1%	1,026,677	1,028,768
60%	59.7%	880,009	876,147
50%	50.1%	733,341	734,096
40%	40.1%	586,673	588,498
30%	30.1%	440,005	440,794
20%	20.0%	293,336	294,019
10%	10.1%	146,668	147,720
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

JVM 'SY660-01.008' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			1,491,224
Calibration 2			1,484,294
Calibration 3			1,486,451
ssj_ops@calibrated=1,485,373
100%	99.4%	1,485,373	1,476,622
90%	90.0%	1,336,836	1,337,206
80%	80.1%	1,188,298	1,189,354
70%	69.8%	1,039,761	1,036,503
60%	60.0%	891,224	891,546
50%	49.8%	742,686	739,999
40%	40.0%	594,149	594,482
30%	29.9%	445,612	443,417
20%	20.0%	297,075	296,804
10%	9.9%	148,537	147,106
Active Idle		0	0

See the JVM Instance Performance Report for additional details.

http://www.spec.org - info@spec.org

SPECpower_ssj2008 Reporter Version: [SSJ 1.2.10, May 9, 2012]
