SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Supermicro Inc. SuperServer SYS-6029P-WTR | SPECpower_ssj2008 = 13,295 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro Inc. | Test Location: | San Jose, CA, USA | Test Date: | Jan 6, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Mar-2019 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

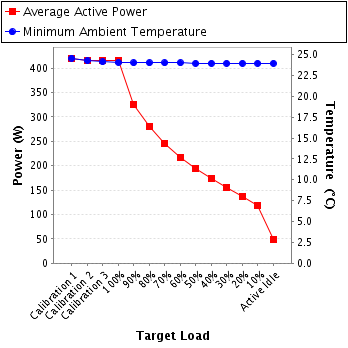

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 421 | 24.6 |
| Calibration 2 | 416 | 24.2 |
| Calibration 3 | 416 | 24.1 |
| 100% | 416 | 24.1 |
| 90% | 325 | 24.0 |
| 80% | 280 | 24.0 |
| 70% | 246 | 24.0 |
| 60% | 217 | 24.0 |
| 50% | 194 | 23.9 |
| 40% | 175 | 23.9 |
| 30% | 156 | 23.9 |
| 20% | 137 | 23.9 |
| 10% | 118 | 23.9 |
| Active Idle | 48.1 | 23.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C2QH25018V |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NIST (National Institute of Standards and Technology) |
| Accredited by: | Trescal |
| Calibration Label: | C56-0177 |
| Date of Calibration: | 15-Feb-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | Prolific USB-to-Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main air flow inlet |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 209 | 300.0 | 2.25 | 5.0 | 0.895 | 421 | 0.5% |
| Calibration 2 | 209 | 300.0 | 2.23 | 5.0 | 0.896 | 416 | 0.5% |
| Calibration 3 | 209 | 300.0 | 2.23 | 5.0 | 0.896 | 416 | 0.5% |
| 100% | 209 | 300.0 | 2.23 | 5.0 | 0.896 | 416 | 0.5% |
| 90% | 209 | 300.0 | 1.84 | 5.0 | 0.845 | 325 | 0.6% |
| 80% | 209 | 300.0 | 1.36 | 5.0 | 0.989 | 280 | 0.7% |
| 70% | 209 | 300.0 | 1.20 | 5.0 | 0.986 | 246 | 0.7% |
| 60% | 209 | 300.0 | 1.06 | 2.0 | 0.984 | 217 | 0.4% |
| 50% | 209 | 300.0 | 0.945 | 2.0 | 0.981 | 194 | 0.4% |
| 40% | 209 | 300.0 | 0.856 | 2.0 | 0.976 | 175 | 0.5% |
| 30% | 209 | 300.0 | 0.769 | 2.0 | 0.970 | 156 | 0.5% |
| 20% | 209 | 300.0 | 0.682 | 2.0 | 0.965 | 137 | 0.6% |
| 10% | 209 | 300.0 | 0.592 | 2.0 | 0.953 | 118 | 0.7% |
| Active Idle | 209 | 300.0 | 0.281 | 0.5 | 0.819 | 48.1 | 0.5% |
