Supermicro Inc. SYS-1029U-TR4 SPECpower_ssj2008 = 12,265 overall ssj_ops/watt
Test Sponsor: Supermicro Inc. SPEC License #: 1176 Test Method: Single Node
Tested By: Supermicro Inc. Test Location: Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) Test Date: Dec 20, 2018
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 426 20.6
Calibration 2 426 20.8
Calibration 3 426 20.7
100% 426 20.8
90% 359 20.8
80% 318 20.7
70% 277 20.7
60% 243 20.6
50% 214 20.6
40% 192 20.6
30% 172 20.6
20% 151 20.6
10% 128 20.6
Active Idle 61.8 20.6

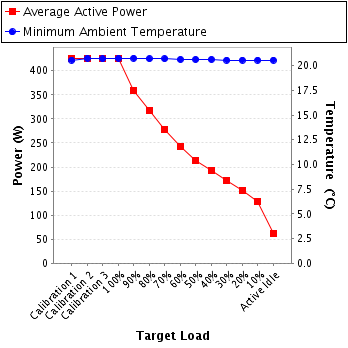

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation.
Model: WT310
Serial Number: C3TA01001E
Connectivity: GPIB
Input Connection: Default
Metrology Institute: NML (National Measurement Laboratory)
Accredited by: Omnio Calibration Lab. Co., Ltd.
Calibration Label: OCL-2351803H15G8
Date of Calibration: 16-Mar-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: SUT Power Supply
Temperature Sensor temp1
Hardware Vendor: Digi International Inc.
Model: Watchport/H
Driver Version: 5.10.26.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: 10 mm in front of SUT main air intake
Notes
None
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 224 300.0 1.92 5.0 0.990 426 0.3%
Calibration 2 224 300.0 1.92 5.0 0.990 426 0.3%
Calibration 3 225 300.0 1.91 5.0 0.990 426 0.3%
100% 225 300.0 1.91 5.0 0.990 426 0.3%
90% 225 300.0 1.62 5.0 0.987 359 0.3%
80% 225 300.0 1.45 5.0 0.980 318 0.4%
70% 225 300.0 1.26 5.0 0.976 277 0.4%
60% 226 300.0 1.11 5.0 0.973 243 0.5%
50% 226 300.0 0.980 2.0 0.968 214 0.3%
40% 226 300.0 0.880 2.0 0.963 192 0.3%
30% 226 300.0 0.793 1.0 0.957 172 0.2%
20% 226 300.0 0.704 1.0 0.947 151 0.3%
10% 227 300.0 0.607 1.0 0.934 128 0.3%
Active Idle 227 300.0 0.325 1.0 0.839 61.8 0.4%

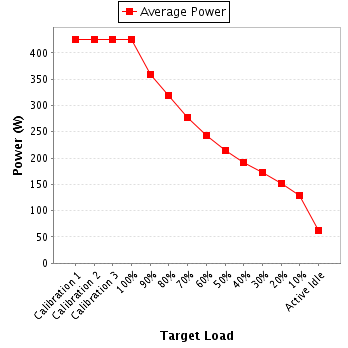

Power details for pwr1
