SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Lenovo Global Technology ThinkSystem SR950 | SPECpower_ssj2008 = 12,886 overall ssj_ops/watt | ||||
| Test Sponsor: | Lenovo Global Technology | SPEC License #: | 9017 | Test Method: | Single Node |
| Tested By: | Lenovo Global Technology | Test Location: | Beijing, China | Test Date: | Mar 9, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Dec-2018 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

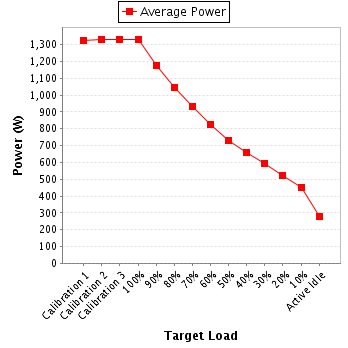

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 1,324 | 25.2 |
| Calibration 2 | 1,332 | 25.0 |
| Calibration 3 | 1,333 | 24.8 |
| 100% | 1,329 | 24.9 |
| 90% | 1,178 | 24.1 |
| 80% | 1,046 | 24.2 |
| 70% | 931 | 24.6 |
| 60% | 823 | 24.3 |
| 50% | 731 | 24.4 |
| 40% | 660 | 24.7 |
| 30% | 592 | 24.9 |
| 20% | 523 | 25.1 |
| 10% | 449 | 25.1 |
| Active Idle | 281 | 25.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C3SH31010E |
| Connectivity: | USB |
| Input Connection: | Default |
| Metrology Institute: | Yokogawa Test & Measurement Corporation |
| Accredited by: | Yokogawa Test & Measurement Corporation |
| Calibration Label: | 18BB98-C93CAA-88AB7B |
| Date of Calibration: | 29-Oct-2018 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1,PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi Intermational, Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 218 | 300.0 | 6.10 | 5.0 | 0.997 | 1,324 | 0.2% |
| Calibration 2 | 218 | 300.0 | 6.14 | 5.0 | 0.997 | 1,332 | 0.2% |
| Calibration 3 | 218 | 300.0 | 6.14 | 5.0 | 0.997 | 1,333 | 0.2% |
| 100% | 218 | 300.0 | 6.12 | 5.0 | 0.997 | 1,329 | 0.2% |
| 90% | 218 | 300.0 | 5.43 | 5.0 | 0.996 | 1,178 | 0.2% |
| 80% | 218 | 300.0 | 4.82 | 5.0 | 0.994 | 1,046 | 0.2% |
| 70% | 218 | 300.0 | 4.30 | 5.0 | 0.992 | 931 | 0.2% |
| 60% | 219 | 300.0 | 3.81 | 5.0 | 0.989 | 823 | 0.2% |
| 50% | 219 | 300.0 | 3.39 | 5.0 | 0.986 | 731 | 0.2% |
| 40% | 219 | 300.0 | 3.06 | 5.0 | 0.984 | 660 | 0.3% |
| 30% | 219 | 300.0 | 2.75 | 5.0 | 0.982 | 592 | 0.3% |
| 20% | 219 | 300.0 | 2.43 | 5.0 | 0.984 | 523 | 0.3% |
| 10% | 219 | 300.0 | 2.09 | 5.0 | 0.978 | 449 | 0.3% |
| Active Idle | 220 | 300.0 | 1.38 | 5.0 | 0.930 | 281 | 0.4% |
