Huawei Technologies Co., Ltd Fusion Server 5288 V5 SPECpower_ssj2008 = 13,388 overall ssj_ops/watt
Test Sponsor: Huawei Technologies Co., Ltd SPEC License #: 3175 Test Method: Single Node
Tested By: Huawei Technologies Co., Ltd Test Location: Shenzhen, Guangdong, China Test Date: Mar 11, 2019
Hardware Availability: Apr-2019 Software Availability: Jul-2018 Publication: Apr 2, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Average Active Power (W) Minimum Ambient Temperature (°C)
Calibration 1 423 21.1
Calibration 2 424 21.4
Calibration 3 424 22.8
100% 414 22.9
90% 346 23.8
80% 298 23.6
70% 254 23.4
60% 227 23.4
50% 204 23.2
40% 189 23.5
30% 166 23.2
20% 142 22.9
10% 119 23.3
Active Idle 50.0 23.5

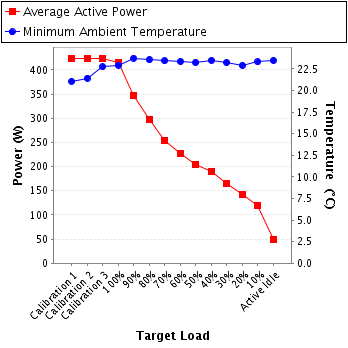

Graph of power and temperature
Measurement Devices
Power Analyzer pwr1
Hardware Vendor: Yokogawa Meters and Instruments Corporation
Model: WT210
Serial Number: 91M412342
Connectivity: RS-232
Input Connection: Default
Metrology Institute: CNAS (China National Accreditation Service for Conformity Assessment)
Accredited by: Calibration and Testing Center of CEPREI
Calibration Label: B18008105-0029
Date of Calibration: 4-Aug-2018
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
PTDaemon Version: 1.8.1-260d064e-20161220
Setup Description: Connected to PSU 1
Temperature Sensor temp1
Hardware Vendor: Digi
Model: Watchport/H
Driver Version: 5.70.105.0
Connectivity: USB
PTDaemon Host System: same as CCS
PTDaemon Host OS: same as CCS
Setup Description: placed in front the main airflow inlet of the SUT less than 50mm.
Notes
.
Power Details for Device pwr1
Target Load Voltage (V) Current (A) Avg Power Factor Avg Active Power (W) Power Measurement Uncertainty (%)
Avg Range Avg Range
Calibration 1 225 300.0 1.97 5.0 0.958 423 0.6%
Calibration 2 225 300.0 1.97 5.0 0.959 424 0.6%
Calibration 3 225 300.0 1.97 5.0 0.959 424 0.6%
100% 225 300.0 1.93 5.0 0.957 414 0.6%
90% 225 300.0 1.64 2.0 0.941 346 0.4%
80% 225 300.0 1.43 2.0 0.926 298 0.4%
70% 225 300.0 1.25 2.0 0.903 254 0.5%
60% 225 300.0 1.14 2.0 0.883 227 0.5%
50% 225 300.0 1.05 2.0 0.861 204 0.6%
40% 225 300.0 0.996 2.0 0.845 189 0.6%
30% 225 300.0 0.904 1.0 0.814 166 0.5%
20% 225 300.0 0.814 1.0 0.777 142 0.5%
10% 225 300.0 0.723 1.0 0.729 119 0.6%
Active Idle 225 300.0 0.471 0.5 0.473 50.0 0.8%

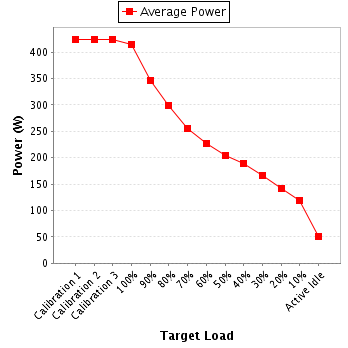

Power details for pwr1
