SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX4770 M5 | SPECpower_ssj2008 = 11,444 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Mar 13, 2019 |
| Hardware Availability: | Jun-2019 | Software Availability: | Oct-2018 | Publication: | Apr 2, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

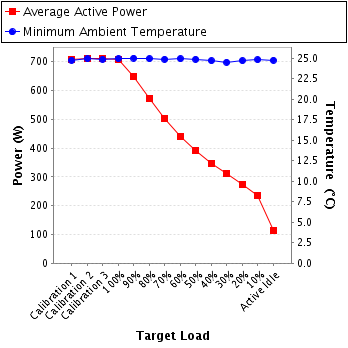

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 709 | 24.8 |
| Calibration 2 | 713 | 24.9 |
| Calibration 3 | 713 | 24.9 |
| 100% | 710 | 24.9 |
| 90% | 647 | 25.0 |
| 80% | 572 | 24.9 |
| 70% | 501 | 24.9 |
| 60% | 442 | 24.9 |
| 50% | 390 | 24.9 |
| 40% | 348 | 24.7 |
| 30% | 311 | 24.5 |
| 20% | 274 | 24.7 |
| 10% | 235 | 24.8 |
| Active Idle | 113 | 24.8 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | Hioki3336 |
| Serial Number: | 170121768 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400086-1901 |
| Date of Calibration: | 30-Jan-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.8.1-260d064e-20161220 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 207 | 300.0 | 3.44 | 5.0 | 0.997 | 709 | 0.2% |
| Calibration 2 | 207 | 300.0 | 3.46 | 5.0 | 0.997 | 713 | 0.2% |
| Calibration 3 | 207 | 300.0 | 3.46 | 5.0 | 0.997 | 713 | 0.2% |
| 100% | 207 | 300.0 | 3.44 | 5.0 | 0.997 | 710 | 0.2% |
| 90% | 207 | 300.0 | 3.14 | 5.0 | 0.996 | 647 | 0.2% |
| 80% | 207 | 300.0 | 2.78 | 5.0 | 0.996 | 572 | 0.2% |
| 70% | 207 | 300.0 | 2.44 | 5.0 | 0.995 | 501 | 0.3% |
| 60% | 207 | 300.0 | 2.16 | 5.0 | 0.993 | 442 | 0.3% |
| 50% | 206 | 300.0 | 1.91 | 5.0 | 0.992 | 390 | 0.3% |
| 40% | 206 | 300.0 | 1.70 | 5.0 | 0.991 | 348 | 0.3% |
| 30% | 206 | 300.0 | 1.52 | 2.0 | 0.988 | 311 | 0.2% |
| 20% | 206 | 300.0 | 1.35 | 2.0 | 0.986 | 274 | 0.2% |
| 10% | 206 | 300.0 | 1.16 | 2.0 | 0.982 | 235 | 0.2% |
| Active Idle | 207 | 300.0 | 0.581 | 2.0 | 0.941 | 113 | 0.4% |
