Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,790,203
ssj_ops@100% per JVM = 1,447,551
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 27, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,812,567
Calibration 2     5,803,902
Calibration 3     5,810,742
ssj_ops@calibrated=5,807,322
100% 99.7% 5,807,322 5,790,203
90% 90.1% 5,226,590 5,231,064
80% 79.9% 4,645,858 4,638,827
70% 70.0% 4,065,126 4,067,734
60% 60.0% 3,484,393 3,485,037
50% 49.9% 2,903,661 2,897,435
40% 40.0% 2,322,929 2,325,725
30% 30.0% 1,742,197 1,742,619
20% 20.0% 1,161,464 1,159,804
10% 10.0% 580,732 578,663
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 4
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE01.001 1,453,071
NODE01.002 1,443,746
NODE01.003 1,446,819
NODE01.004 1,446,567
ssj_ops@100% 5,790,203
ssj_ops@100% per JVM 1,447,551
Graph of per-instance results
JVM 'NODE01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,458,563
Calibration 2     1,455,793
Calibration 3     1,457,577
ssj_ops@calibrated=1,456,685
100% 99.8% 1,456,685 1,453,071
90% 90.0% 1,311,016 1,310,689
80% 79.8% 1,165,348 1,163,074
70% 70.1% 1,019,679 1,020,941
60% 60.1% 874,011 874,819
50% 49.9% 728,342 726,455
40% 40.1% 582,674 584,594
30% 30.0% 437,005 436,795
20% 20.0% 291,337 291,134
10% 10.0% 145,668 144,978
Active Idle   0 0

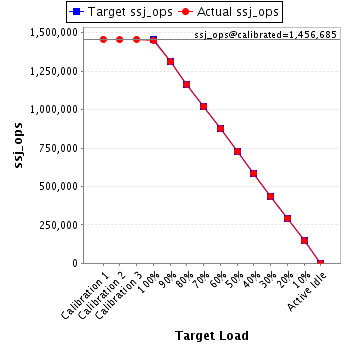

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,698
Calibration 2     1,445,020
Calibration 3     1,448,497
ssj_ops@calibrated=1,446,759
100% 99.8% 1,446,759 1,443,746
90% 90.3% 1,302,083 1,306,350
80% 79.9% 1,157,407 1,155,496
70% 70.1% 1,012,731 1,014,212
60% 59.9% 868,055 866,321
50% 49.9% 723,379 721,356
40% 39.9% 578,703 577,642
30% 29.9% 434,028 432,165
20% 20.0% 289,352 289,884
10% 10.1% 144,676 145,597
Active Idle   0 0

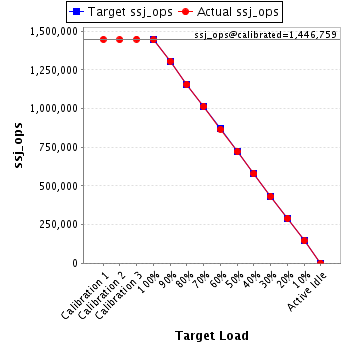

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,455,206
Calibration 2     1,453,462
Calibration 3     1,454,904
ssj_ops@calibrated=1,454,183
100% 99.5% 1,454,183 1,446,819
90% 89.9% 1,308,765 1,307,493
80% 79.9% 1,163,347 1,162,140
70% 69.9% 1,017,928 1,016,409
60% 60.1% 872,510 873,938
50% 50.0% 727,092 727,337
40% 40.0% 581,673 581,866
30% 29.9% 436,255 434,220
20% 20.0% 290,837 290,923
10% 10.0% 145,418 145,235
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,452,101
Calibration 2     1,449,627
Calibration 3     1,449,764
ssj_ops@calibrated=1,449,696
100% 99.8% 1,449,696 1,446,567
90% 90.1% 1,304,726 1,306,532
80% 79.9% 1,159,757 1,158,117
70% 70.1% 1,014,787 1,016,171
60% 60.0% 869,817 869,959
50% 49.8% 724,848 722,287
40% 40.1% 579,878 581,623
30% 30.3% 434,909 439,438
20% 19.9% 289,939 287,862
10% 9.9% 144,970 142,853
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
