Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,728,678
ssj_ops@100% per JVM = 1,432,169
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,753,727
Calibration 2     5,746,952
Calibration 3     5,749,398
ssj_ops@calibrated=5,748,175
100% 99.7% 5,748,175 5,728,678
90% 90.0% 5,173,357 5,172,959
80% 80.1% 4,598,540 4,604,802
70% 70.1% 4,023,722 4,029,112
60% 60.0% 3,448,905 3,451,542
50% 50.0% 2,874,087 2,876,740
40% 39.9% 2,299,270 2,296,006
30% 30.0% 1,724,452 1,725,557
20% 20.0% 1,149,635 1,149,712
10% 10.0% 574,817 575,386
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 10
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE03.001 1,435,768
NODE03.002 1,428,416
NODE03.003 1,439,533
NODE03.004 1,424,961
ssj_ops@100% 5,728,678
ssj_ops@100% per JVM 1,432,169

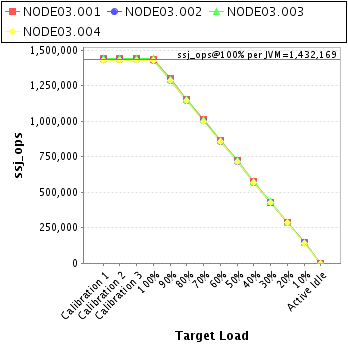

Graph of per-instance results
JVM 'NODE03.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,442,996
Calibration 2     1,439,965
Calibration 3     1,441,617
ssj_ops@calibrated=1,440,791
100% 99.7% 1,440,791 1,435,768
90% 90.1% 1,296,712 1,298,216
80% 80.3% 1,152,633 1,156,839
70% 70.2% 1,008,554 1,010,839
60% 60.1% 864,475 866,148
50% 50.1% 720,396 722,051
40% 40.0% 576,316 575,963
30% 29.9% 432,237 430,802
20% 20.0% 288,158 288,113
10% 10.0% 144,079 143,466
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,437,918
Calibration 2     1,433,113
Calibration 3     1,434,810
ssj_ops@calibrated=1,433,962
100% 99.6% 1,433,962 1,428,416
90% 90.0% 1,290,565 1,290,746
80% 80.0% 1,147,169 1,146,924
70% 70.1% 1,003,773 1,005,733
60% 60.0% 860,377 860,387
50% 49.9% 716,981 715,444
40% 39.9% 573,585 571,660
30% 30.1% 430,188 431,138
20% 20.1% 286,792 287,610
10% 10.1% 143,396 144,180
Active Idle   0 0

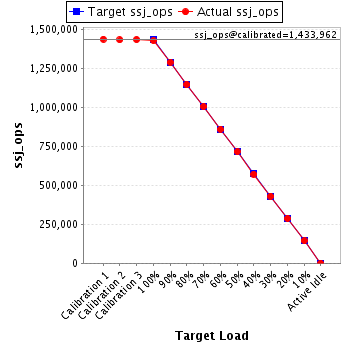

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,441,593
Calibration 2     1,443,125
Calibration 3     1,444,625
ssj_ops@calibrated=1,443,875
100% 99.7% 1,443,875 1,439,533
90% 89.8% 1,299,488 1,296,741
80% 80.0% 1,155,100 1,155,673
70% 70.1% 1,010,713 1,012,435
60% 59.9% 866,325 865,295
50% 50.2% 721,938 724,198
40% 39.9% 577,550 576,809
30% 30.0% 433,163 433,811
20% 19.9% 288,775 287,237
10% 10.0% 144,388 145,072
Active Idle   0 0

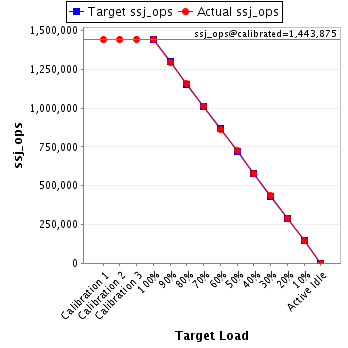

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE03.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,219
Calibration 2     1,430,748
Calibration 3     1,428,345
ssj_ops@calibrated=1,429,547
100% 99.7% 1,429,547 1,424,961
90% 90.0% 1,286,592 1,287,256
80% 80.1% 1,143,637 1,145,366
70% 70.0% 1,000,683 1,000,105
60% 60.1% 857,728 859,713
50% 50.0% 714,773 715,047
40% 40.0% 571,819 571,574
30% 30.1% 428,864 429,805
20% 20.1% 285,909 286,752
10% 10.0% 142,955 142,669
Active Idle   0 0

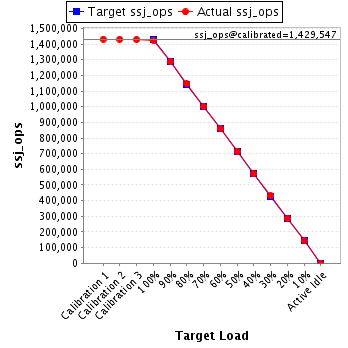

Graph of results
See the JVM Instance Performance Report for additional details.
