Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,742,722
ssj_ops@100% per JVM = 1,435,681
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Mar 26, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,763,355
Calibration 2     5,761,728
Calibration 3     5,763,451
ssj_ops@calibrated=5,762,590
100% 99.7% 5,762,590 5,742,722
90% 90.1% 5,186,331 5,194,626
80% 80.0% 4,610,072 4,611,662
70% 70.0% 4,033,813 4,034,150
60% 60.0% 3,457,554 3,456,781
50% 50.0% 2,881,295 2,882,426
40% 40.1% 2,305,036 2,311,701
30% 30.1% 1,728,777 1,733,904
20% 20.0% 1,152,518 1,150,036
10% 10.0% 576,259 577,904
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn21000m -Xms24000m -Xmx24000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 24000
JVM Maximum Heap (MB): 24000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE01.001 1,436,006
NODE01.002 1,425,635
NODE01.003 1,437,678
NODE01.004 1,443,403
ssj_ops@100% 5,742,722
ssj_ops@100% per JVM 1,435,681
Graph of per-instance results
JVM 'NODE01.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,621
Calibration 2     1,442,949
Calibration 3     1,441,852
ssj_ops@calibrated=1,442,401
100% 99.6% 1,442,401 1,436,006
90% 90.0% 1,298,161 1,298,192
80% 80.2% 1,153,921 1,157,231
70% 69.9% 1,009,680 1,008,811
60% 60.0% 865,440 866,063
50% 49.9% 721,200 720,298
40% 40.0% 576,960 577,405
30% 30.1% 432,720 433,563
20% 19.9% 288,480 287,668
10% 10.0% 144,240 143,878
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,973
Calibration 2     1,430,424
Calibration 3     1,431,554
ssj_ops@calibrated=1,430,989
100% 99.6% 1,430,989 1,425,635
90% 90.2% 1,287,890 1,290,146
80% 79.9% 1,144,791 1,143,154
70% 70.0% 1,001,692 1,001,391
60% 59.9% 858,593 856,737
50% 50.0% 715,494 715,422
40% 40.1% 572,395 573,669
30% 30.2% 429,297 432,273
20% 20.0% 286,198 286,503
10% 10.0% 143,099 143,605
Active Idle   0 0

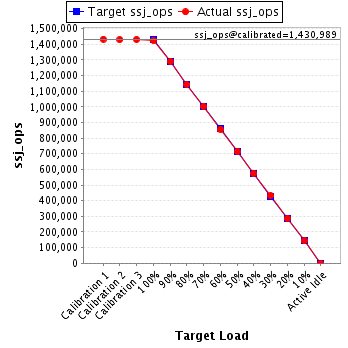

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,628
Calibration 2     1,442,280
Calibration 3     1,441,238
ssj_ops@calibrated=1,441,759
100% 99.7% 1,441,759 1,437,678
90% 90.2% 1,297,583 1,300,099
80% 79.9% 1,153,407 1,152,351
70% 70.0% 1,009,231 1,009,471
60% 60.0% 865,056 865,347
50% 50.1% 720,880 722,359
40% 40.2% 576,704 580,296
30% 30.0% 432,528 433,004
20% 20.0% 288,352 287,757
10% 10.1% 144,176 145,239
Active Idle   0 0

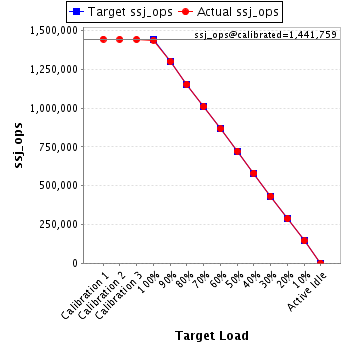

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE01.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,446,132
Calibration 2     1,446,076
Calibration 3     1,448,807
ssj_ops@calibrated=1,447,441
100% 99.7% 1,447,441 1,443,403
90% 90.2% 1,302,697 1,306,188
80% 80.1% 1,157,953 1,158,925
70% 70.1% 1,013,209 1,014,477
60% 60.0% 868,465 868,634
50% 50.0% 723,721 724,347
40% 40.1% 578,977 580,332
30% 30.1% 434,232 435,064
20% 19.9% 289,488 288,109
10% 10.0% 144,744 145,181
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
