Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,748,411
ssj_ops@100% per JVM = 1,437,103
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,769,158
Calibration 2     5,766,350
Calibration 3     5,772,221
ssj_ops@calibrated=5,769,285
100% 99.6% 5,769,285 5,748,411
90% 90.0% 5,192,357 5,194,877
80% 80.0% 4,615,428 4,614,081
70% 70.1% 4,038,500 4,042,004
60% 60.0% 3,461,571 3,461,469
50% 50.1% 2,884,643 2,888,555
40% 39.9% 2,307,714 2,303,731
30% 29.9% 1,730,786 1,726,949
20% 20.0% 1,153,857 1,155,542
10% 10.0% 576,929 578,720
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE08.001 1,442,353
NODE08.002 1,435,160
NODE08.003 1,429,481
NODE08.004 1,441,417
ssj_ops@100% 5,748,411
ssj_ops@100% per JVM 1,437,103

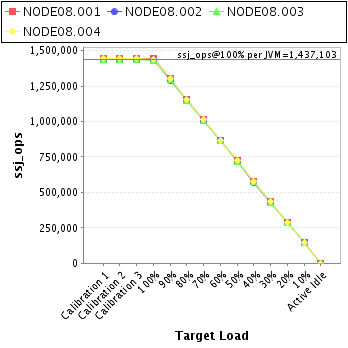

Graph of per-instance results

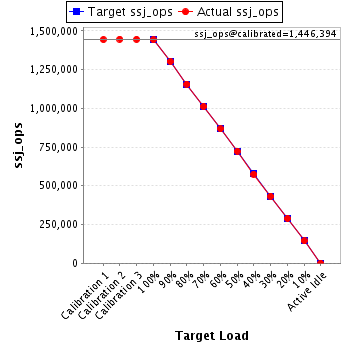

JVM 'NODE08.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,870
Calibration 2     1,446,725
Calibration 3     1,446,063
ssj_ops@calibrated=1,446,394
100% 99.7% 1,446,394 1,442,353
90% 90.0% 1,301,755 1,302,367
80% 80.0% 1,157,115 1,156,831
70% 70.0% 1,012,476 1,012,829
60% 59.9% 867,836 867,101
50% 50.1% 723,197 724,098
40% 39.8% 578,558 575,227
30% 30.0% 433,918 433,359
20% 20.0% 289,279 289,265
10% 10.0% 144,639 144,333
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,438,586
Calibration 2     1,437,433
Calibration 3     1,439,783
ssj_ops@calibrated=1,438,608
100% 99.8% 1,438,608 1,435,160
90% 89.9% 1,294,747 1,293,257
80% 80.1% 1,150,886 1,152,704
70% 69.9% 1,007,026 1,005,174
60% 60.2% 863,165 865,346
50% 50.1% 719,304 720,961
40% 39.8% 575,443 572,808
30% 29.8% 431,582 429,272
20% 20.0% 287,722 287,680
10% 10.1% 143,861 144,825
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

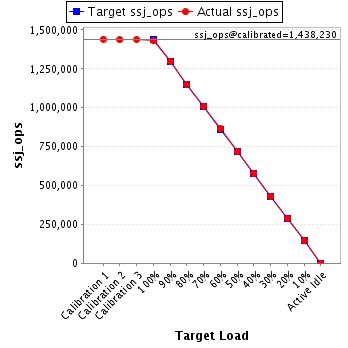

JVM 'NODE08.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,890
Calibration 2     1,437,398
Calibration 3     1,439,061
ssj_ops@calibrated=1,438,230
100% 99.4% 1,438,230 1,429,481
90% 90.3% 1,294,407 1,298,503
80% 80.1% 1,150,584 1,151,534
70% 70.0% 1,006,761 1,007,137
60% 60.0% 862,938 863,579
50% 50.0% 719,115 719,223
40% 40.1% 575,292 577,445
30% 30.0% 431,469 431,493
20% 20.1% 287,646 288,661
10% 10.0% 143,823 143,908
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE08.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,445,812
Calibration 2     1,444,793
Calibration 3     1,447,314
ssj_ops@calibrated=1,446,054
100% 99.7% 1,446,054 1,441,417
90% 90.0% 1,301,448 1,300,750
80% 79.7% 1,156,843 1,153,012
70% 70.3% 1,012,238 1,016,863
60% 59.8% 867,632 865,443
50% 50.1% 723,027 724,274
40% 40.0% 578,421 578,251
30% 29.9% 433,816 432,825
20% 20.1% 289,211 289,937
10% 10.1% 144,605 145,654
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
