Hewlett Packard Enterprise Synergy 480 Gen10 Compute Module ssj_ops@100% = 5,744,486
ssj_ops@100% per JVM = 1,436,122
Test Sponsor: Hewlett Packard Enterprise SPEC License #: 3 Test Method: Multi Node
Tested By: Hewlett Packard Enterprise Test Location: Houston, TX, USA Test Date: Apr 8, 2019
Hardware Availability: Apr-2019 Software Availability: Mar-2019 Publication: May 8, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,758,343
Calibration 2     5,764,383
Calibration 3     5,757,339
ssj_ops@calibrated=5,760,861
100% 99.7% 5,760,861 5,744,486
90% 90.0% 5,184,775 5,186,754
80% 80.0% 4,608,689 4,609,767
70% 70.0% 4,032,603 4,034,763
60% 60.0% 3,456,517 3,455,244
50% 50.0% 2,880,431 2,878,237
40% 40.0% 2,304,344 2,302,573
30% 29.9% 1,728,258 1,723,274
20% 20.0% 1,152,172 1,154,631
10% 10.0% 576,086 577,681
Active Idle   0 0
Graph of results
System Under Test
Set: 'SUT'
Set Identifier: SUT
Set Description: System Under Test
# of Identical Nodes: 12
Comment: SUT
Hardware
Hardware Vendor: Hewlett Packard Enterprise
Model: Synergy 480 Gen10 Compute Module
Form Factor: 7U
CPU Name: Intel Xeon Platinum 8280 @ 2.70GHz (Intel Turbo Boost Technology up to 4.00 GHz)
CPU Characteristics: 28-Core, 2.70 GHz, 38.5MB L3 Cache
CPU Frequency (MHz): 2700
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2933Y-R; slots 1, 3, 5, 8, 10 and 12 populated in each socket
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: 1 x HPE 240GB 6G SATA M.2 SSD (875488-B21)
Disk Controller: HPE Smart Array S100i SR Gen10
# and type of Network Interface Cards (NICs) Installed: 1 x HPE Synergy 3820C 10/20Gb CNA
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: H/S: Standard
Software
Power Management: Enabled (see SUT Notes)
Operating System (OS): Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Oracle Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19000m -Xms21000m -Xmx21000m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:ParallelGCThreads=28 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+AggressiveOpts -XX:+UseLargePages -XX:+UseParallelOldGC
JVM Affinity: start /NODE [0,1,2,3] /AFFINITY [0xFFFFFFF]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: I42 v2.00 (02/02/2019)
Management Firmware Version: 1.40 Feb 05 2019
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: HPE Service Pack for ProLiant (SPP) Version: 2019.03.0, Microsoft Windows KB4056898, KB4338815
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
NODE10.001 1,439,809
NODE10.002 1,427,807
NODE10.003 1,439,651
NODE10.004 1,437,219
ssj_ops@100% 5,744,486
ssj_ops@100% per JVM 1,436,122
Graph of per-instance results
JVM 'NODE10.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,130
Calibration 2     1,443,727
Calibration 3     1,442,340
ssj_ops@calibrated=1,443,034
100% 99.8% 1,443,034 1,439,809
90% 89.8% 1,298,730 1,295,816
80% 80.2% 1,154,427 1,157,506
70% 70.1% 1,010,124 1,011,752
60% 60.0% 865,820 865,242
50% 49.9% 721,517 720,477
40% 40.0% 577,213 576,561
30% 29.9% 432,910 431,522
20% 20.1% 288,607 289,478
10% 10.0% 144,303 144,633
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

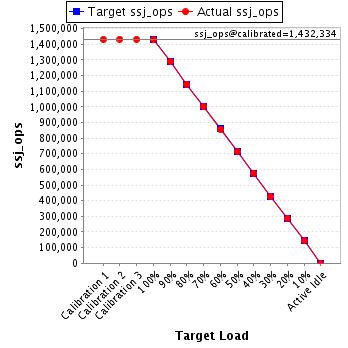

JVM 'NODE10.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,431,157
Calibration 2     1,432,693
Calibration 3     1,431,975
ssj_ops@calibrated=1,432,334
100% 99.7% 1,432,334 1,427,807
90% 89.9% 1,289,101 1,288,144
80% 79.9% 1,145,867 1,144,622
70% 70.0% 1,002,634 1,002,638
60% 59.8% 859,400 856,808
50% 50.0% 716,167 715,531
40% 40.2% 572,934 575,382
30% 29.8% 429,700 427,340
20% 20.1% 286,467 287,396
10% 10.1% 143,233 144,008
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

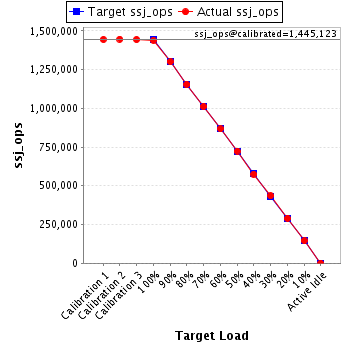

JVM 'NODE10.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,443,884
Calibration 2     1,446,426
Calibration 3     1,443,820
ssj_ops@calibrated=1,445,123
100% 99.6% 1,445,123 1,439,651
90% 90.0% 1,300,611 1,300,886
80% 79.9% 1,156,098 1,154,595
70% 70.1% 1,011,586 1,012,847
60% 60.0% 867,074 866,826
50% 50.1% 722,561 724,280
40% 39.8% 578,049 575,415
30% 30.1% 433,537 434,585
20% 20.1% 289,025 290,299
10% 10.0% 144,512 145,197
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'NODE10.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,171
Calibration 2     1,441,536
Calibration 3     1,439,205
ssj_ops@calibrated=1,440,370
100% 99.8% 1,440,370 1,437,219
90% 90.4% 1,296,333 1,301,908
80% 80.1% 1,152,296 1,153,044
70% 69.9% 1,008,259 1,007,525
60% 60.1% 864,222 866,367
50% 49.8% 720,185 717,949
40% 39.9% 576,148 575,215
30% 29.8% 432,111 429,827
20% 20.0% 288,074 287,459
10% 10.0% 144,037 143,843
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
