New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,669,217
ssj_ops@100% per JVM = 1,417,304
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 6, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,695,746
Calibration 2     5,684,896
Calibration 3     5,692,351
ssj_ops@calibrated=5,688,624
100% 99.7% 5,688,624 5,669,217
90% 90.0% 5,119,761 5,117,576
80% 79.9% 4,550,899 4,547,352
70% 70.1% 3,982,036 3,987,535
60% 60.0% 3,413,174 3,412,043
50% 50.0% 2,844,312 2,844,702
40% 40.0% 2,275,449 2,276,343
30% 30.1% 1,706,587 1,709,489
20% 20.0% 1,137,725 1,137,549
10% 9.9% 568,862 564,593
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 05, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT106.001 1,409,693
WIN-SUT106.002 1,425,419
WIN-SUT106.003 1,413,211
WIN-SUT106.004 1,420,894
ssj_ops@100% 5,669,217
ssj_ops@100% per JVM 1,417,304
Graph of per-instance results
JVM 'WIN-SUT106.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,417,178
Calibration 2     1,413,496
Calibration 3     1,416,356
ssj_ops@calibrated=1,414,926
100% 99.6% 1,414,926 1,409,693
90% 89.8% 1,273,433 1,270,397
80% 80.1% 1,131,941 1,133,369
70% 70.2% 990,448 992,911
60% 60.1% 848,956 850,095
50% 50.1% 707,463 708,476
40% 40.2% 565,970 568,102
30% 30.1% 424,478 425,861
20% 20.0% 282,985 283,074
10% 10.0% 141,493 141,076
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,434,536
Calibration 2     1,430,217
Calibration 3     1,430,634
ssj_ops@calibrated=1,430,426
100% 99.7% 1,430,426 1,425,419
90% 90.1% 1,287,383 1,288,417
80% 79.8% 1,144,340 1,141,145
70% 70.3% 1,001,298 1,005,907
60% 59.9% 858,255 856,190
50% 50.1% 715,213 716,063
40% 39.9% 572,170 571,044
30% 30.0% 429,128 428,709
20% 19.9% 286,085 284,972
10% 9.9% 143,043 141,340
Active Idle   0 0

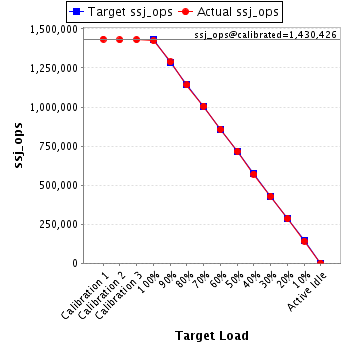

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,418,156
Calibration 2     1,416,423
Calibration 3     1,416,707
ssj_ops@calibrated=1,416,565
100% 99.8% 1,416,565 1,413,211
90% 90.1% 1,274,908 1,275,973
80% 79.8% 1,133,252 1,131,021
70% 70.0% 991,595 991,415
60% 59.9% 849,939 848,557
50% 50.1% 708,282 709,194
40% 40.0% 566,626 566,687
30% 29.9% 424,969 424,110
20% 20.0% 283,313 283,596
10% 9.9% 141,656 139,928
Active Idle   0 0

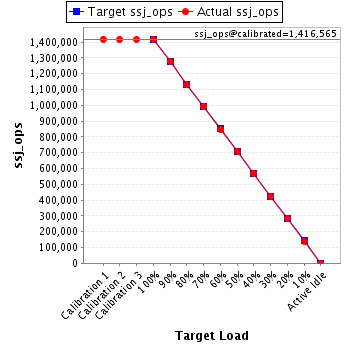

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT106.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,425,877
Calibration 2     1,424,760
Calibration 3     1,428,654
ssj_ops@calibrated=1,426,707
100% 99.6% 1,426,707 1,420,894
90% 89.9% 1,284,036 1,282,790
80% 80.0% 1,141,366 1,141,816
70% 69.9% 998,695 997,302
60% 60.1% 856,024 857,200
50% 49.8% 713,353 710,969
40% 40.0% 570,683 570,509
30% 30.2% 428,012 430,809
20% 20.0% 285,341 285,907
10% 10.0% 142,671 142,249
Active Idle   0 0

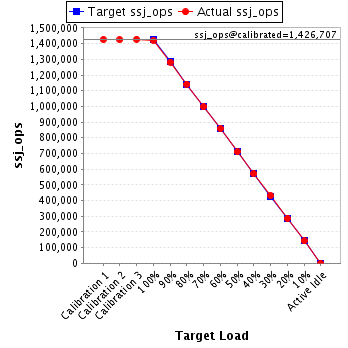

Graph of results
See the JVM Instance Performance Report for additional details.
