New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,668,320
ssj_ops@100% per JVM = 1,417,080
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 6, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 5, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,683,097
Calibration 2     5,683,518
Calibration 3     5,689,273
ssj_ops@calibrated=5,686,395
100% 99.7% 5,686,395 5,668,320
90% 89.9% 5,117,756 5,113,572
80% 80.1% 4,549,116 4,553,952
70% 70.0% 3,980,477 3,982,943
60% 60.0% 3,411,837 3,411,145
50% 50.0% 2,843,198 2,843,291
40% 40.0% 2,274,558 2,275,977
30% 29.9% 1,705,919 1,701,466
20% 20.0% 1,137,279 1,135,614
10% 10.0% 568,640 569,307
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 9
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 05, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT108.001 1,413,740
WIN-SUT108.002 1,403,336
WIN-SUT108.003 1,420,868
WIN-SUT108.004 1,430,377
ssj_ops@100% 5,668,320
ssj_ops@100% per JVM 1,417,080
Graph of per-instance results
JVM 'WIN-SUT108.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,420,025
Calibration 2     1,416,784
Calibration 3     1,419,016
ssj_ops@calibrated=1,417,900
100% 99.7% 1,417,900 1,413,740
90% 90.2% 1,276,110 1,278,562
80% 80.3% 1,134,320 1,139,177
70% 70.1% 992,530 993,742
60% 60.0% 850,740 850,317
50% 50.0% 708,950 709,041
40% 40.0% 567,160 566,927
30% 30.0% 425,370 424,795
20% 20.1% 283,580 284,307
10% 10.0% 141,790 142,265
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT108.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,410,108
Calibration 2     1,410,942
Calibration 3     1,408,514
ssj_ops@calibrated=1,409,728
100% 99.5% 1,409,728 1,403,336
90% 89.7% 1,268,755 1,264,581
80% 79.8% 1,127,782 1,124,572
70% 70.1% 986,809 987,585
60% 60.1% 845,837 846,669
50% 50.0% 704,864 704,843
40% 40.1% 563,891 564,651
30% 29.9% 422,918 421,654
20% 19.9% 281,946 280,807
10% 9.9% 140,973 140,133
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT108.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,423,801
Calibration 2     1,424,020
Calibration 3     1,425,601
ssj_ops@calibrated=1,424,811
100% 99.7% 1,424,811 1,420,868
90% 89.9% 1,282,329 1,281,214
80% 80.1% 1,139,848 1,141,811
70% 70.0% 997,367 997,707
60% 59.9% 854,886 853,234
50% 49.9% 712,405 710,729
40% 39.9% 569,924 568,614
30% 29.9% 427,443 425,933
20% 20.0% 284,962 284,370
10% 10.1% 142,481 143,224
Active Idle   0 0

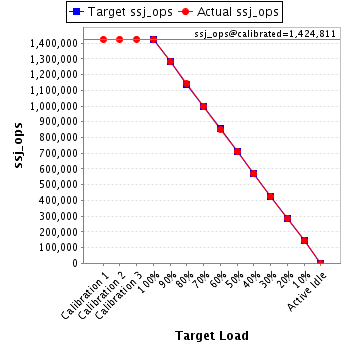

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT108.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,429,164
Calibration 2     1,431,772
Calibration 3     1,436,142
ssj_ops@calibrated=1,433,957
100% 99.8% 1,433,957 1,430,377
90% 89.9% 1,290,561 1,289,216
80% 80.1% 1,147,165 1,148,393
70% 70.0% 1,003,770 1,003,910
60% 60.0% 860,374 860,926
50% 50.1% 716,978 718,678
40% 40.2% 573,583 575,785
30% 29.9% 430,187 429,084
20% 20.0% 286,791 286,129
10% 10.0% 143,396 143,685
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
