New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,691,201
ssj_ops@100% per JVM = 1,422,800
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,700,571
Calibration 2     5,697,817
Calibration 3     5,705,664
ssj_ops@calibrated=5,701,741
100% 99.8% 5,701,741 5,691,201
90% 90.0% 5,131,567 5,134,040
80% 79.8% 4,561,393 4,549,786
70% 69.9% 3,991,219 3,984,790
60% 60.0% 3,421,044 3,419,482
50% 50.0% 2,850,870 2,849,312
40% 40.0% 2,280,696 2,279,335
30% 30.0% 1,710,522 1,712,338
20% 20.0% 1,140,348 1,140,539
10% 10.0% 570,174 569,770
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 13
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT108.001 1,421,369
WIN-SUT108.002 1,436,802
WIN-SUT108.003 1,420,824
WIN-SUT108.004 1,412,206
ssj_ops@100% 5,691,201
ssj_ops@100% per JVM 1,422,800

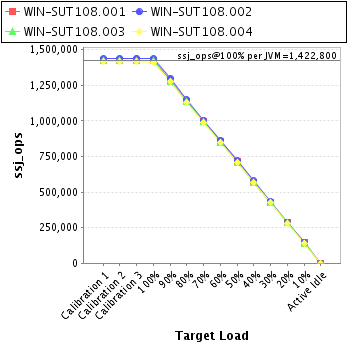

Graph of per-instance results
JVM 'WIN-SUT108.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,321
Calibration 2     1,423,818
Calibration 3     1,426,907
ssj_ops@calibrated=1,425,362
100% 99.7% 1,425,362 1,421,369
90% 90.0% 1,282,826 1,283,035
80% 79.7% 1,140,290 1,136,150
70% 69.9% 997,754 996,677
60% 60.1% 855,217 856,414
50% 50.0% 712,681 712,488
40% 39.9% 570,145 569,409
30% 30.0% 427,609 427,950
20% 20.0% 285,072 285,193
10% 10.0% 142,536 142,743
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

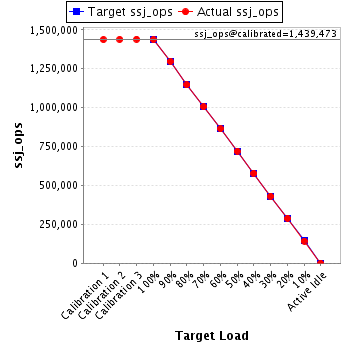

JVM 'WIN-SUT108.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,652
Calibration 2     1,438,958
Calibration 3     1,439,988
ssj_ops@calibrated=1,439,473
100% 99.8% 1,439,473 1,436,802
90% 90.1% 1,295,526 1,297,035
80% 79.7% 1,151,578 1,146,663
70% 69.9% 1,007,631 1,005,611
60% 60.0% 863,684 863,320
50% 50.1% 719,736 720,834
40% 40.1% 575,789 577,670
30% 30.0% 431,842 431,749
20% 20.1% 287,895 288,871
10% 9.9% 143,947 142,842
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT108.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,093
Calibration 2     1,421,066
Calibration 3     1,421,085
ssj_ops@calibrated=1,421,076
100% 100.0% 1,421,076 1,420,824
90% 89.9% 1,278,968 1,277,794
80% 79.9% 1,136,861 1,136,140
70% 69.9% 994,753 993,781
60% 59.9% 852,645 850,975
50% 49.9% 710,538 708,618
40% 39.9% 568,430 566,668
30% 30.2% 426,323 428,617
20% 20.0% 284,215 284,194
10% 10.0% 142,108 142,208
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

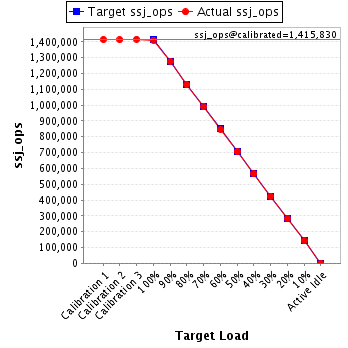

JVM 'WIN-SUT108.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,415,505
Calibration 2     1,413,976
Calibration 3     1,417,684
ssj_ops@calibrated=1,415,830
100% 99.7% 1,415,830 1,412,206
90% 90.1% 1,274,247 1,276,176
80% 79.9% 1,132,664 1,130,834
70% 69.8% 991,081 988,721
60% 59.9% 849,498 848,773
50% 50.0% 707,915 707,373
40% 39.9% 566,332 565,588
30% 29.9% 424,749 424,022
20% 19.9% 283,166 282,281
10% 10.0% 141,583 141,978
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
