New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,707,398
ssj_ops@100% per JVM = 1,426,850
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,717,549
Calibration 2     5,719,762
Calibration 3     5,716,704
ssj_ops@calibrated=5,718,233
100% 99.8% 5,718,233 5,707,398
90% 89.9% 5,146,410 5,142,624
80% 80.0% 4,574,586 4,575,332
70% 70.1% 4,002,763 4,011,301
60% 59.9% 3,430,940 3,427,432
50% 49.9% 2,859,116 2,855,101
40% 40.0% 2,287,293 2,285,977
30% 30.0% 1,715,470 1,714,680
20% 20.0% 1,143,647 1,145,635
10% 10.0% 571,823 570,193
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT105.001 1,415,738
WIN-SUT105.002 1,434,722
WIN-SUT105.003 1,432,799
WIN-SUT105.004 1,424,139
ssj_ops@100% 5,707,398
ssj_ops@100% per JVM 1,426,850

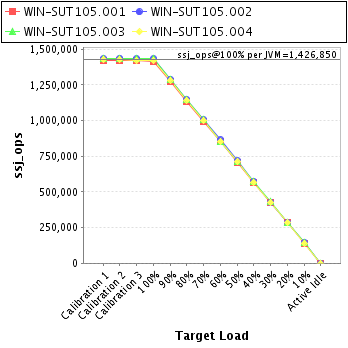

Graph of per-instance results
JVM 'WIN-SUT105.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,956
Calibration 2     1,419,553
Calibration 3     1,420,041
ssj_ops@calibrated=1,419,797
100% 99.7% 1,419,797 1,415,738
90% 90.0% 1,277,817 1,277,304
80% 80.0% 1,135,838 1,135,632
70% 70.2% 993,858 996,981
60% 60.0% 851,878 852,079
50% 49.9% 709,899 708,181
40% 40.1% 567,919 568,634
30% 30.1% 425,939 428,028
20% 20.0% 283,959 284,336
10% 10.0% 141,980 141,565
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

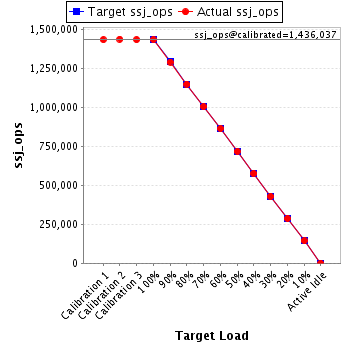

JVM 'WIN-SUT105.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,932
Calibration 2     1,438,002
Calibration 3     1,434,072
ssj_ops@calibrated=1,436,037
100% 99.9% 1,436,037 1,434,722
90% 89.9% 1,292,433 1,291,359
80% 80.0% 1,148,830 1,149,475
70% 70.0% 1,005,226 1,005,178
60% 60.2% 861,622 864,359
50% 50.0% 718,018 717,813
40% 40.1% 574,415 575,231
30% 29.9% 430,811 429,524
20% 20.0% 287,207 286,850
10% 10.0% 143,604 144,213
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

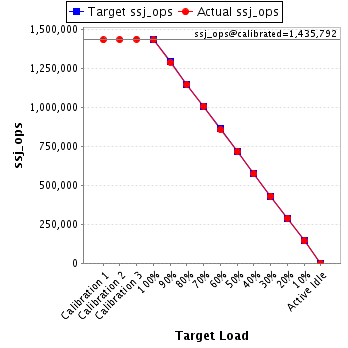

JVM 'WIN-SUT105.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,433,183
Calibration 2     1,434,209
Calibration 3     1,437,374
ssj_ops@calibrated=1,435,792
100% 99.8% 1,435,792 1,432,799
90% 89.8% 1,292,213 1,289,388
80% 79.8% 1,148,633 1,145,672
70% 70.2% 1,005,054 1,007,797
60% 59.7% 861,475 857,104
50% 49.9% 717,896 716,936
40% 39.9% 574,317 573,424
30% 30.0% 430,738 430,614
20% 20.1% 287,158 288,270
10% 10.0% 143,579 143,422
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT105.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,428,479
Calibration 2     1,427,997
Calibration 3     1,425,217
ssj_ops@calibrated=1,426,607
100% 99.8% 1,426,607 1,424,139
90% 90.0% 1,283,946 1,284,573
80% 80.2% 1,141,286 1,144,553
70% 70.2% 998,625 1,001,344
60% 59.9% 855,964 853,890
50% 49.9% 713,304 712,170
40% 39.9% 570,643 568,689
30% 29.9% 427,982 426,514
20% 20.1% 285,321 286,179
10% 9.9% 142,661 140,993
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
