New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,699,210
ssj_ops@100% per JVM = 1,424,802
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 17, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 12, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,706,418
Calibration 2     5,705,423
Calibration 3     5,718,049
ssj_ops@calibrated=5,711,736
100% 99.8% 5,711,736 5,699,210
90% 90.0% 5,140,563 5,140,940
80% 79.9% 4,569,389 4,562,800
70% 70.0% 3,998,215 4,000,701
60% 59.9% 3,427,042 3,422,466
50% 50.0% 2,855,868 2,855,423
40% 40.0% 2,284,694 2,286,592
30% 30.0% 1,713,521 1,715,094
20% 20.0% 1,142,347 1,143,092
10% 10.0% 571,174 572,358
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 14
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: Other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 15, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT110.001 1,435,411
WIN-SUT110.002 1,417,482
WIN-SUT110.003 1,431,106
WIN-SUT110.004 1,415,211
ssj_ops@100% 5,699,210
ssj_ops@100% per JVM 1,424,802
Graph of per-instance results
JVM 'WIN-SUT110.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,440,506
Calibration 2     1,439,223
Calibration 3     1,440,545
ssj_ops@calibrated=1,439,884
100% 99.7% 1,439,884 1,435,411
90% 90.0% 1,295,896 1,296,183
80% 79.9% 1,151,907 1,150,465
70% 70.2% 1,007,919 1,011,115
60% 60.0% 863,930 863,654
50% 50.0% 719,942 719,741
40% 40.0% 575,954 575,913
30% 30.0% 431,965 432,176
20% 19.9% 287,977 287,051
10% 10.0% 143,988 143,393
Active Idle   0 0

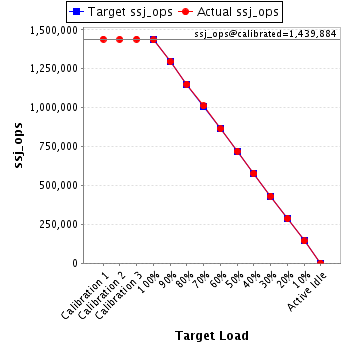

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,416,777
Calibration 2     1,416,800
Calibration 3     1,421,832
ssj_ops@calibrated=1,419,316
100% 99.9% 1,419,316 1,417,482
90% 90.1% 1,277,384 1,278,239
80% 79.8% 1,135,453 1,132,127
70% 70.1% 993,521 995,114
60% 59.8% 851,589 849,103
50% 49.9% 709,658 708,790
40% 40.0% 567,726 567,877
30% 30.0% 425,795 426,045
20% 20.0% 283,863 283,201
10% 10.0% 141,932 141,771
Active Idle   0 0

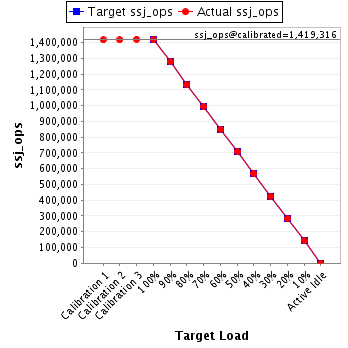

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,099
Calibration 2     1,432,968
Calibration 3     1,433,826
ssj_ops@calibrated=1,433,397
100% 99.8% 1,433,397 1,431,106
90% 90.1% 1,290,058 1,290,784
80% 79.9% 1,146,718 1,145,245
70% 70.0% 1,003,378 1,003,410
60% 60.0% 860,038 859,743
50% 50.2% 716,699 720,268
40% 40.1% 573,359 574,080
30% 30.0% 430,019 429,412
20% 20.2% 286,679 289,721
10% 10.0% 143,340 143,257
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,417,036
Calibration 2     1,416,432
Calibration 3     1,421,846
ssj_ops@calibrated=1,419,139
100% 99.7% 1,419,139 1,415,211
90% 89.9% 1,277,225 1,275,734
80% 80.0% 1,135,311 1,134,963
70% 69.8% 993,397 991,062
60% 59.9% 851,483 849,966
50% 49.8% 709,570 706,624
40% 40.1% 567,656 568,722
30% 30.1% 425,742 427,461
20% 20.0% 283,828 283,119
10% 10.1% 141,914 143,937
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
