New H3C Technologies Co., Ltd. H3C UniServer B5700 G3 ssj_ops@100% = 5,694,644
ssj_ops@100% per JVM = 1,423,661
Test Sponsor: New H3C Technologies Co., Ltd. SPEC License #: 9066 Test Method: Multi Node
Tested By: New H3C Technologies Co., Ltd. Test Location: Hangzhou, Zhejiang, China Test Date: May 23, 2019
Hardware Availability: Jan-2019 Software Availability: Jan-2019 Publication: Jun 26, 2019
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     5,715,346
Calibration 2     5,702,098
Calibration 3     5,708,613
ssj_ops@calibrated=5,705,356
100% 99.8% 5,705,356 5,694,644
90% 89.8% 5,134,820 5,125,911
80% 80.0% 4,564,284 4,561,446
70% 70.0% 3,993,749 3,994,074
60% 59.9% 3,423,213 3,418,076
50% 50.0% 2,852,678 2,851,899
40% 40.0% 2,282,142 2,280,732
30% 30.0% 1,711,607 1,710,915
20% 20.1% 1,141,071 1,145,982
10% 10.0% 570,536 572,053
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: System Under Test
# of Identical Nodes: 15
Comment: SUT
Hardware
Hardware Vendor: New H3C Technologies Co., Ltd.
Model: H3C UniServer B5700 G3
Form Factor: other
CPU Name: Intel Xeon Platinum 8180 2.50GHz
CPU Characteristics: 28-Core, 2.50 GHz, 38.5 MB L3 Cache
CPU Frequency (MHz): 2500
CPU(s) Enabled: 56 cores, 2 chips, 28 cores/chip
Hardware Threads: 112 (2 / core)
CPU(s) Orderable: 1,2 chips
Primary Cache: 32 KB I + 32 KB D on chip per core
Secondary Cache: 1 MB I+D on chip per core
Tertiary Cache: 39424 KB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 192.0
# and size of DIMM: 12 x 16384 MB
Memory Details: 12 x 16GB 2Rx8 PC4-2666-V ECC;slots A1, A2, A3, A4, A5, A6, B1, B2, B3, B4, B5, B6 populated
Power Supply Quantity and Rating (W): None
Power Supply Details: Shared
Disk Drive: SATA DOM 128GB P/N DESSH-A28D09BCADCA
Disk Controller: Integrated SATA controller
# and type of Network Interface Cards (NICs) Installed: 1 x Intel I350 Gigabit Ethernet Controller
NICs Enabled in Firmware / OS / Connected: 2/2/1
Network Speed (Mbit): 1000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Balanced Mode enabled in OS (see SUT Notes)
Operating System (OS): Microsoft Windows Server 2012 R2 Datacenter
OS Version: Version 6.3 (Build 9600)
Filesystem: NTFS
JVM Vendor: Oracle Corporation
JVM Version: Java HotSpot(TM) 64-Bit Server VM (build 24.80-b11, mixed mode), version 1.7.0_80
JVM Command-line Options: -server -Xmn19g -Xms21g -Xmx21g -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=28 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=9000 -XX:MaxInlineSize=270 -XX:FreqInlineSize=6000 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:+AggressiveOpts
JVM Affinity: start /NODE [0,2] /AFFINITY [0xFC0FF00FC0FF];start /NODE [1,3] /AFFINITY [0xFF03F00FF03F]
JVM Instances: 4
JVM Initial Heap (MB): 21000
JVM Maximum Heap (MB): 21000
JVM Address Bits: 64
Boot Firmware Version: 2.00.25
Management Firmware Version: UIS-OM 1.00.10
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: Microsoft Windows KB3021910, clearcompressionflag.exe, KB2919355, KB2932046, KB2959977, KB2937592, KB2938439, KB2934018, KB4056898, patched to this test system in May 16, 2019
Boot Firmware Settings
Management Firmware Settings
See SUT Notes
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
WIN-SUT110.001 1,429,722
WIN-SUT110.002 1,415,849
WIN-SUT110.003 1,430,354
WIN-SUT110.004 1,418,718
ssj_ops@100% 5,694,644
ssj_ops@100% per JVM 1,423,661
Graph of per-instance results
JVM 'WIN-SUT110.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,432,470
Calibration 2     1,428,294
Calibration 3     1,433,622
ssj_ops@calibrated=1,430,958
100% 99.9% 1,430,958 1,429,722
90% 89.8% 1,287,862 1,285,222
80% 80.1% 1,144,767 1,146,559
70% 70.0% 1,001,671 1,001,307
60% 59.9% 858,575 857,694
50% 50.1% 715,479 716,518
40% 39.9% 572,383 571,587
30% 30.1% 429,287 430,593
20% 20.1% 286,192 288,252
10% 10.0% 143,096 143,783
Active Idle   0 0

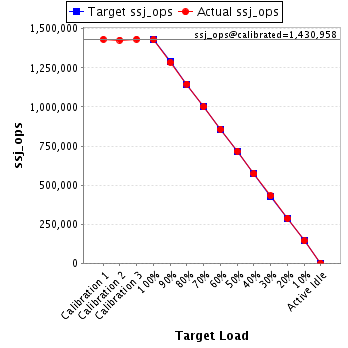

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,421,499
Calibration 2     1,417,454
Calibration 3     1,418,427
ssj_ops@calibrated=1,417,940
100% 99.9% 1,417,940 1,415,849
90% 89.7% 1,276,146 1,271,905
80% 79.6% 1,134,352 1,128,952
70% 70.3% 992,558 996,961
60% 59.9% 850,764 849,195
50% 49.9% 708,970 707,335
40% 39.9% 567,176 565,897
30% 30.0% 425,382 425,228
20% 20.0% 283,588 284,140
10% 10.0% 141,794 142,441
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,436,506
Calibration 2     1,434,432
Calibration 3     1,435,456
ssj_ops@calibrated=1,434,944
100% 99.7% 1,434,944 1,430,354
90% 90.2% 1,291,449 1,294,800
80% 80.3% 1,147,955 1,152,467
70% 69.9% 1,004,461 1,002,744
60% 60.1% 860,966 861,778
50% 49.8% 717,472 714,917
40% 40.0% 573,978 573,789
30% 29.9% 430,483 429,321
20% 20.1% 286,989 288,172
10% 10.0% 143,494 143,269
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'WIN-SUT110.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     1,424,871
Calibration 2     1,421,917
Calibration 3     1,421,109
ssj_ops@calibrated=1,421,513
100% 99.8% 1,421,513 1,418,718
90% 89.6% 1,279,362 1,273,984
80% 79.7% 1,137,210 1,133,468
70% 69.9% 995,059 993,063
60% 59.8% 852,908 849,409
50% 50.2% 710,757 713,129
40% 40.1% 568,605 569,459
30% 30.0% 426,454 425,772
20% 20.1% 284,303 285,418
10% 10.0% 142,151 142,560
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
