SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2019 Standard Performance Evaluation Corporation
| Supermicro Inc. SuperServer SYS-6029P-WTR | SPECpower_ssj2008 = 13,623 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro Inc. | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro Inc. | Test Location: | San Jose, CA, USA | Test Date: | Apr 15, 2019 |
| Hardware Availability: | Apr-2019 | Software Availability: | Apr-2019 | Publication: | Jul 23, 2019 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

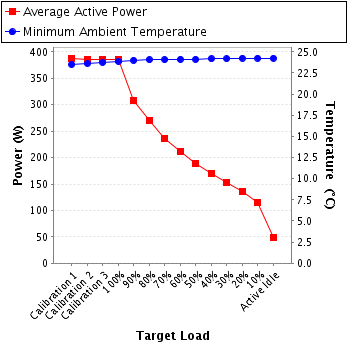

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 388 | 23.5 |
| Calibration 2 | 385 | 23.6 |
| Calibration 3 | 386 | 23.8 |
| 100% | 385 | 23.9 |
| 90% | 309 | 24.0 |
| 80% | 271 | 24.1 |
| 70% | 237 | 24.1 |
| 60% | 212 | 24.1 |
| 50% | 189 | 24.1 |
| 40% | 170 | 24.2 |
| 30% | 153 | 24.2 |
| 20% | 135 | 24.2 |
| 10% | 116 | 24.2 |
| Active Idle | 48.6 | 24.2 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT210 |
| Serial Number: | 91J523226 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NIST (National Institute of Standards and Technology) |
| Accredited by: | Trescal |
| Calibration Label: | C56-0089 |
| Date of Calibration: | 26-Feb-2019 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.0-ee285d08-20190201 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | Prolific USB-to-Serial |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main air flow inlet |

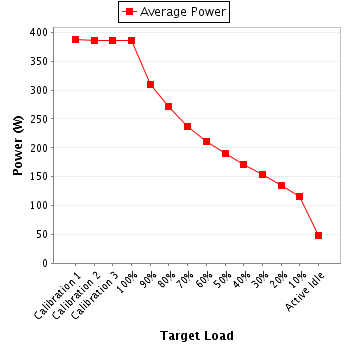

| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.07 | 5.0 | 0.903 | 388 | 0.6% |
| Calibration 2 | 208 | 300.0 | 2.05 | 5.0 | 0.903 | 385 | 0.6% |
| Calibration 3 | 208 | 300.0 | 2.05 | 5.0 | 0.903 | 386 | 0.6% |
| 100% | 208 | 300.0 | 2.05 | 5.0 | 0.903 | 385 | 0.6% |
| 90% | 208 | 300.0 | 1.50 | 5.0 | 0.990 | 309 | 0.7% |
| 80% | 208 | 300.0 | 1.32 | 5.0 | 0.989 | 271 | 0.7% |
| 70% | 208 | 300.0 | 1.15 | 5.0 | 0.986 | 237 | 0.8% |
| 60% | 209 | 300.0 | 1.03 | 2.0 | 0.984 | 212 | 0.5% |
| 50% | 208 | 300.0 | 0.927 | 2.0 | 0.980 | 189 | 0.5% |
| 40% | 208 | 300.0 | 0.838 | 2.0 | 0.976 | 170 | 0.5% |
| 30% | 209 | 300.0 | 0.756 | 2.0 | 0.970 | 153 | 0.6% |
| 20% | 209 | 300.0 | 0.670 | 2.0 | 0.965 | 135 | 0.6% |
| 10% | 209 | 300.0 | 0.582 | 2.0 | 0.952 | 116 | 0.7% |
| Active Idle | 209 | 300.0 | 0.282 | 0.5 | 0.824 | 48.6 | 0.6% |
