SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2020 Standard Performance Evaluation Corporation
| New H3C Technologies Co., Ltd. H3C UniServer R6900 G5 | SPECpower_ssj2008 = 11,159 overall ssj_ops/watt | ||||
| Test Sponsor: | New H3C Technologies Co., Ltd. | SPEC License #: | 9066 | Test Method: | Single Node |
| Tested By: | New H3C Technologies Co., Ltd. | Test Location: | Hangzhou, Zhejiang, China | Test Date: | Nov 3, 2020 |
| Hardware Availability: | Aug-2020 | Software Availability: | Sep-2020 | Publication: | Dec 2, 2020 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

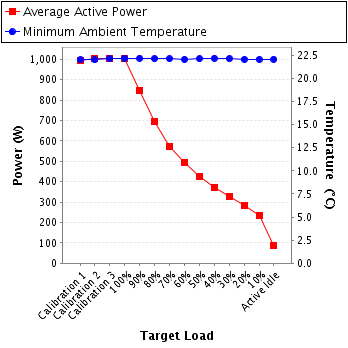

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 995 | 22.0 |
| Calibration 2 | 1,004 | 22.0 |
| Calibration 3 | 1,006 | 22.1 |
| 100% | 1,005 | 22.2 |
| 90% | 849 | 22.2 |
| 80% | 696 | 22.1 |
| 70% | 571 | 22.1 |
| 60% | 493 | 22.1 |
| 50% | 425 | 22.1 |
| 40% | 371 | 22.2 |
| 30% | 328 | 22.1 |
| 20% | 284 | 22.1 |
| 10% | 233 | 22.1 |
| Active Idle | 89.2 | 22.1 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | CHROMA |
| Model: | 66203 |
| Serial Number: | 662030000248 |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | CNAS (China National Accreditation Service for Conformity Assessment) |
| Accredited by: | CEPREI Calibration and Testing Center |
| Calibration Label: | 1JA20002540-0002 |
| Date of Calibration: | 28-May-2020 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.1-a2d19f26-20190717 |
| Setup Description: | Connected to PSU 1 and PSU 2 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | DIGI. |
| Model: | Watchport/H |
| Driver Version: | 6.2.1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | Placed in front the main airflow inlet of the SUT less than 50mm |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 227 | 300.0 | 4.39 | 5.0 | 0.996 | 995 | 0.3% |
| Calibration 2 | 228 | 300.0 | 4.43 | 5.0 | 0.996 | 1,004 | 0.2% |
| Calibration 3 | 227 | 300.0 | 4.44 | 5.0 | 0.996 | 1,006 | 0.2% |
| 100% | 227 | 300.0 | 4.45 | 5.0 | 0.996 | 1,005 | 0.2% |
| 90% | 228 | 300.0 | 3.74 | 5.0 | 0.994 | 849 | 0.3% |
| 80% | 229 | 300.0 | 3.06 | 5.0 | 0.993 | 696 | 0.3% |
| 70% | 229 | 300.0 | 2.52 | 2.0 | 0.990 | 571 | 0.2% |
| 60% | 229 | 300.0 | 2.18 | 2.0 | 0.988 | 493 | 0.2% |
| 50% | 229 | 300.0 | 1.88 | 2.0 | 0.984 | 425 | 0.2% |
| 40% | 230 | 300.0 | 1.64 | 2.0 | 0.983 | 371 | 0.3% |
| 30% | 230 | 300.0 | 1.46 | 2.0 | 0.978 | 328 | 0.3% |
| 20% | 231 | 300.0 | 1.27 | 2.0 | 0.971 | 284 | 0.3% |
| 10% | 231 | 300.0 | 1.05 | 2.0 | 0.960 | 233 | 0.4% |
| Active Idle | 231 | 300.0 | 0.463 | 2.0 | 0.833 | 89.2 | 0.8% |
