XSLAB V-Raptor SQ ssj_ops@100% = 91,364
ssj_ops@100% per JVM = 22,841
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,925
Calibration 2     93,092
Calibration 3     92,278
ssj_ops@calibrated=92,685
100% 98.6% 92,685 91,364
90% 88.9% 83,417 82,391
80% 80.7% 74,148 74,834
70% 70.8% 64,880 65,605
60% 60.5% 55,611 56,057
50% 50.5% 46,343 46,787
40% 40.3% 37,074 37,315
30% 30.5% 27,806 28,287
20% 19.9% 18,537 18,478
10% 10.3% 9,269 9,501
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node17.001 23,021
node17.002 22,605
node17.003 22,639
node17.004 23,098
ssj_ops@100% 91,364
ssj_ops@100% per JVM 22,841

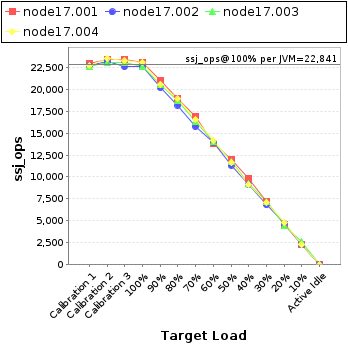

Graph of per-instance results

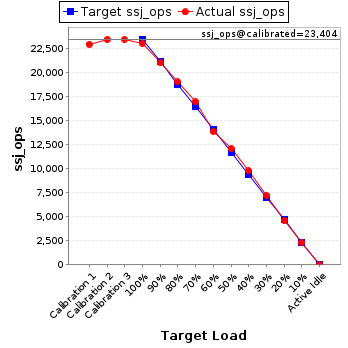

JVM 'node17.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,914
Calibration 2     23,394
Calibration 3     23,415
ssj_ops@calibrated=23,404
100% 98.4% 23,404 23,021
90% 89.7% 21,064 21,000
80% 81.2% 18,724 18,993
70% 72.3% 16,383 16,925
60% 59.3% 14,043 13,868
50% 51.5% 11,702 12,046
40% 41.8% 9,362 9,788
30% 30.7% 7,021 7,190
20% 19.8% 4,681 4,623
10% 9.9% 2,340 2,321
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

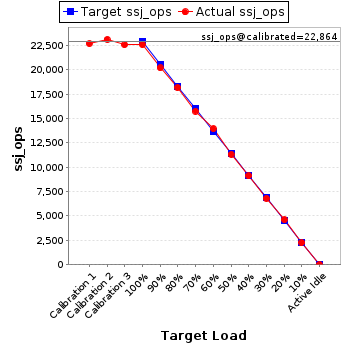

JVM 'node17.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,717
Calibration 2     23,145
Calibration 3     22,583
ssj_ops@calibrated=22,864
100% 98.9% 22,864 22,605
90% 88.4% 20,578 20,209
80% 79.6% 18,291 18,189
70% 69.0% 16,005 15,769
60% 61.1% 13,719 13,975
50% 49.6% 11,432 11,332
40% 39.9% 9,146 9,128
30% 29.9% 6,859 6,826
20% 20.3% 4,573 4,639
10% 10.0% 2,286 2,276
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

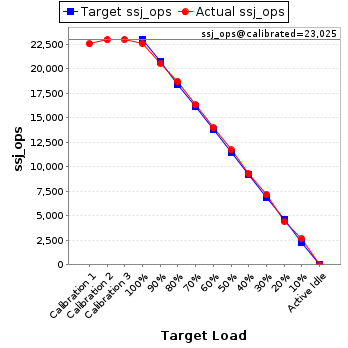

JVM 'node17.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,579
Calibration 2     23,010
Calibration 3     23,041
ssj_ops@calibrated=23,025
100% 98.3% 23,025 22,639
90% 89.4% 20,723 20,593
80% 81.4% 18,420 18,743
70% 71.0% 16,118 16,341
60% 60.8% 13,815 13,996
50% 51.0% 11,513 11,733
40% 40.3% 9,210 9,283
30% 31.2% 6,908 7,176
20% 19.3% 4,605 4,433
10% 11.5% 2,303 2,642
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node17.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,715
Calibration 2     23,543
Calibration 3     23,239
ssj_ops@calibrated=23,391
100% 98.7% 23,391 23,098
90% 88.0% 21,052 20,589
80% 80.8% 18,713 18,909
70% 70.8% 16,374 16,570
60% 60.8% 14,035 14,217
50% 49.9% 11,696 11,677
40% 39.0% 9,356 9,116
30% 30.3% 7,017 7,096
20% 20.4% 4,678 4,783
10% 9.7% 2,339 2,262
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
