XSLAB V-Raptor SQ ssj_ops@100% = 88,919
ssj_ops@100% per JVM = 22,230
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     88,334
Calibration 2     90,794
Calibration 3     89,794
ssj_ops@calibrated=90,294
100% 98.5% 90,294 88,919
90% 90.0% 81,265 81,299
80% 80.9% 72,235 73,031
70% 70.4% 63,206 63,574
60% 59.4% 54,176 53,628
50% 49.9% 45,147 45,085
40% 39.9% 36,118 36,056
30% 31.0% 27,088 28,001
20% 20.5% 18,059 18,517
10% 9.7% 9,029 8,734
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node18.001 22,478
node18.002 22,089
node18.003 22,481
node18.004 21,871
ssj_ops@100% 88,919
ssj_ops@100% per JVM 22,230

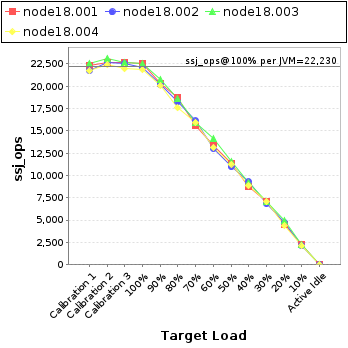

Graph of per-instance results
JVM 'node18.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,275
Calibration 2     22,677
Calibration 3     22,684
ssj_ops@calibrated=22,681
100% 99.1% 22,681 22,478
90% 89.6% 20,412 20,319
80% 82.4% 18,144 18,681
70% 68.7% 15,876 15,575
60% 58.8% 13,608 13,340
50% 50.0% 11,340 11,334
40% 38.4% 9,072 8,701
30% 31.2% 6,804 7,084
20% 19.8% 4,536 4,493
10% 10.2% 2,268 2,307
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node18.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,778
Calibration 2     22,594
Calibration 3     22,493
ssj_ops@calibrated=22,544
100% 98.0% 22,544 22,089
90% 89.5% 20,289 20,176
80% 80.9% 18,035 18,229
70% 71.5% 15,780 16,110
60% 57.7% 13,526 13,016
50% 48.7% 11,272 10,980
40% 41.3% 9,017 9,306
30% 30.4% 6,763 6,850
20% 21.1% 4,509 4,755
10% 9.4% 2,254 2,108
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node18.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,582
Calibration 2     23,116
Calibration 3     22,688
ssj_ops@calibrated=22,902
100% 98.2% 22,902 22,481
90% 90.6% 20,612 20,756
80% 81.1% 18,321 18,568
70% 69.5% 16,031 15,920
60% 61.8% 13,741 14,147
50% 50.3% 11,451 11,521
40% 40.2% 9,161 9,203
30% 30.7% 6,871 7,020
20% 21.4% 4,580 4,903
10% 9.7% 2,290 2,217
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node18.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     21,699
Calibration 2     22,407
Calibration 3     21,929
ssj_ops@calibrated=22,168
100% 98.7% 22,168 21,871
90% 90.4% 19,951 20,047
80% 79.2% 17,734 17,553
70% 72.0% 15,518 15,969
60% 59.2% 13,301 13,125
50% 50.8% 11,084 11,251
40% 39.9% 8,867 8,846
30% 31.8% 6,650 7,046
20% 19.7% 4,434 4,366
10% 9.5% 2,217 2,102
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
