XSLAB V-Raptor SQ ssj_ops@100% = 90,053
ssj_ops@100% per JVM = 22,513
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,838
Calibration 2     91,624
Calibration 3     92,124
ssj_ops@calibrated=91,874
100% 98.0% 91,874 90,053
90% 90.2% 82,687 82,905
80% 80.6% 73,499 74,055
70% 70.2% 64,312 64,463
60% 60.4% 55,124 55,473
50% 50.1% 45,937 46,061
40% 38.9% 36,750 35,702
30% 29.6% 27,562 27,200
20% 20.2% 18,375 18,568
10% 10.2% 9,187 9,368
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node21.001 22,343
node21.002 21,672
node21.003 23,016
node21.004 23,022
ssj_ops@100% 90,053
ssj_ops@100% per JVM 22,513

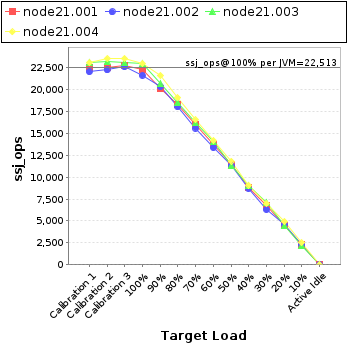

Graph of per-instance results

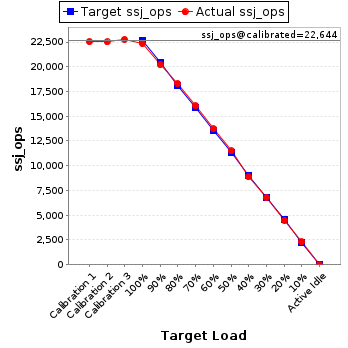

JVM 'node21.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,547
Calibration 2     22,508
Calibration 3     22,780
ssj_ops@calibrated=22,644
100% 98.7% 22,644 22,343
90% 89.2% 20,379 20,190
80% 80.9% 18,115 18,317
70% 71.0% 15,851 16,071
60% 60.7% 13,586 13,735
50% 50.8% 11,322 11,510
40% 39.1% 9,058 8,862
30% 30.1% 6,793 6,817
20% 19.8% 4,529 4,492
10% 10.3% 2,264 2,325
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

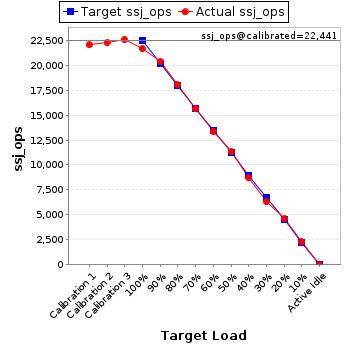

JVM 'node21.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,065
Calibration 2     22,270
Calibration 3     22,612
ssj_ops@calibrated=22,441
100% 96.6% 22,441 21,672
90% 90.8% 20,197 20,387
80% 80.4% 17,953 18,050
70% 69.7% 15,709 15,632
60% 59.7% 13,465 13,398
50% 50.5% 11,221 11,333
40% 38.9% 8,976 8,730
30% 28.2% 6,732 6,317
20% 20.6% 4,488 4,633
10% 10.1% 2,244 2,275
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

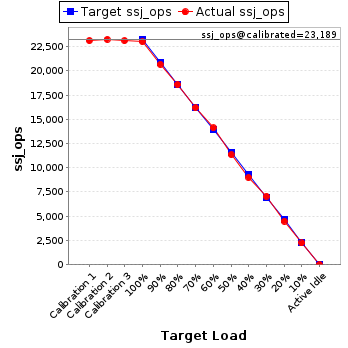

JVM 'node21.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,127
Calibration 2     23,257
Calibration 3     23,121
ssj_ops@calibrated=23,189
100% 99.3% 23,189 23,016
90% 89.2% 20,870 20,677
80% 80.2% 18,551 18,586
70% 69.9% 16,232 16,209
60% 60.9% 13,913 14,120
50% 49.0% 11,594 11,362
40% 38.8% 9,276 9,001
30% 30.5% 6,957 7,079
20% 19.4% 4,638 4,501
10% 9.7% 2,319 2,239
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

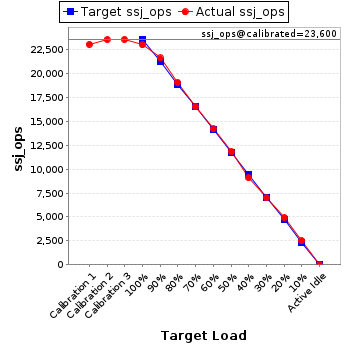

JVM 'node21.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,098
Calibration 2     23,589
Calibration 3     23,612
ssj_ops@calibrated=23,600
100% 97.6% 23,600 23,022
90% 91.7% 21,240 21,651
80% 80.9% 18,880 19,101
70% 70.1% 16,520 16,551
60% 60.3% 14,160 14,220
50% 50.2% 11,800 11,857
40% 38.6% 9,440 9,109
30% 29.6% 7,080 6,987
20% 20.9% 4,720 4,942
10% 10.7% 2,360 2,529
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
