XSLAB V-Raptor SQ ssj_ops@100% = 91,452
ssj_ops@100% per JVM = 22,863
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,840
Calibration 2     92,927
Calibration 3     92,746
ssj_ops@calibrated=92,836
100% 98.5% 92,836 91,452
90% 89.3% 83,553 82,914
80% 81.1% 74,269 75,302
70% 70.4% 64,985 65,340
60% 60.7% 55,702 56,335
50% 50.6% 46,418 46,974
40% 39.6% 37,135 36,748
30% 31.1% 27,851 28,844
20% 20.0% 18,567 18,559
10% 10.0% 9,284 9,281
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node24.001 22,745
node24.002 23,266
node24.003 22,777
node24.004 22,663
ssj_ops@100% 91,452
ssj_ops@100% per JVM 22,863

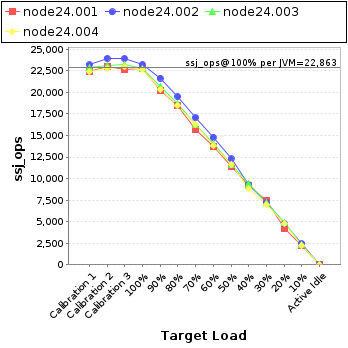

Graph of per-instance results

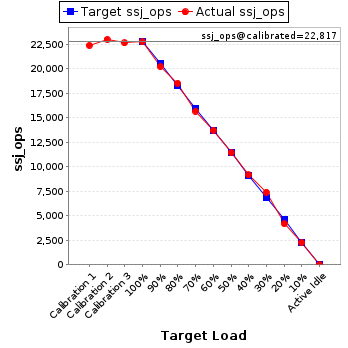

JVM 'node24.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,398
Calibration 2     23,005
Calibration 3     22,629
ssj_ops@calibrated=22,817
100% 99.7% 22,817 22,745
90% 88.6% 20,535 20,227
80% 81.2% 18,254 18,535
70% 68.7% 15,972 15,679
60% 60.2% 13,690 13,730
50% 50.1% 11,409 11,434
40% 40.1% 9,127 9,153
30% 32.5% 6,845 7,415
20% 18.3% 4,563 4,181
10% 9.9% 2,282 2,254
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node24.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,214
Calibration 2     23,964
Calibration 3     23,938
ssj_ops@calibrated=23,951
100% 97.1% 23,951 23,266
90% 90.5% 21,556 21,669
80% 81.6% 19,161 19,537
70% 71.3% 16,766 17,068
60% 61.8% 14,371 14,807
50% 51.4% 11,976 12,300
40% 38.7% 9,581 9,260
30% 30.3% 7,185 7,252
20% 19.8% 4,790 4,739
10% 10.2% 2,395 2,450
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node24.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,852
Calibration 2     23,153
Calibration 3     23,225
ssj_ops@calibrated=23,189
100% 98.2% 23,189 22,777
90% 89.2% 20,870 20,684
80% 80.7% 18,551 18,706
70% 70.2% 16,232 16,283
60% 60.4% 13,913 14,010
50% 50.0% 11,595 11,586
40% 40.8% 9,276 9,457
30% 31.2% 6,957 7,229
20% 21.1% 4,638 4,889
10% 10.0% 2,319 2,308
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

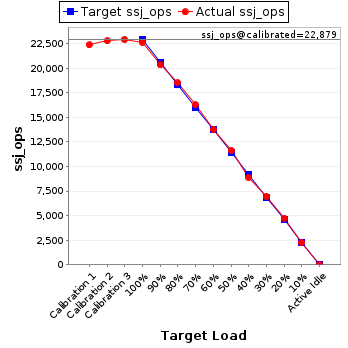

JVM 'node24.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,376
Calibration 2     22,805
Calibration 3     22,952
ssj_ops@calibrated=22,879
100% 99.1% 22,879 22,663
90% 88.9% 20,591 20,334
80% 81.0% 18,303 18,524
70% 71.3% 16,015 16,310
60% 60.3% 13,727 13,789
50% 50.9% 11,439 11,654
40% 38.8% 9,152 8,879
30% 30.4% 6,864 6,948
20% 20.8% 4,576 4,751
10% 9.9% 2,288 2,268
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
