XSLAB V-Raptor SQ ssj_ops@100% = 90,261
ssj_ops@100% per JVM = 22,565
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,430
Calibration 2     92,294
Calibration 3     91,378
ssj_ops@calibrated=91,836
100% 98.3% 91,836 90,261
90% 90.2% 82,652 82,825
80% 79.7% 73,469 73,189
70% 69.9% 64,285 64,227
60% 59.3% 55,101 54,433
50% 49.8% 45,918 45,717
40% 40.5% 36,734 37,176
30% 30.2% 27,551 27,747
20% 20.3% 18,367 18,651
10% 10.4% 9,184 9,573
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node25.001 22,342
node25.002 23,082
node25.003 22,368
node25.004 22,470
ssj_ops@100% 90,261
ssj_ops@100% per JVM 22,565

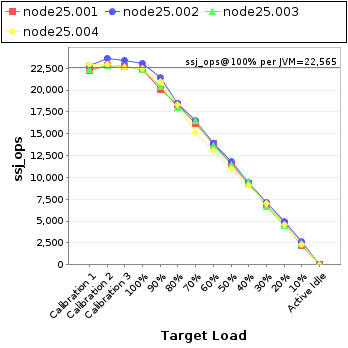

Graph of per-instance results

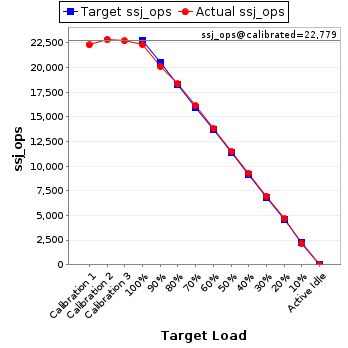

JVM 'node25.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,280
Calibration 2     22,863
Calibration 3     22,696
ssj_ops@calibrated=22,779
100% 98.1% 22,779 22,342
90% 88.2% 20,502 20,099
80% 80.5% 18,224 18,343
70% 70.8% 15,946 16,117
60% 60.7% 13,668 13,826
50% 50.5% 11,390 11,514
40% 40.8% 9,112 9,288
30% 30.5% 6,834 6,943
20% 20.5% 4,556 4,668
10% 9.6% 2,278 2,192
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

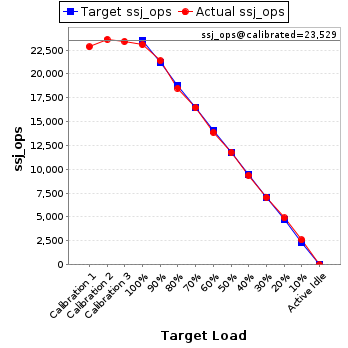

JVM 'node25.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,847
Calibration 2     23,637
Calibration 3     23,421
ssj_ops@calibrated=23,529
100% 98.1% 23,529 23,082
90% 90.9% 21,176 21,391
80% 78.7% 18,823 18,509
70% 70.0% 16,470 16,481
60% 59.0% 14,117 13,883
50% 50.1% 11,764 11,788
40% 39.8% 9,412 9,374
30% 30.1% 7,059 7,077
20% 20.8% 4,706 4,904
10% 11.1% 2,353 2,604
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node25.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,384
Calibration 2     22,843
Calibration 3     22,739
ssj_ops@calibrated=22,791
100% 98.1% 22,791 22,368
90% 89.5% 20,512 20,398
80% 79.2% 18,233 18,044
70% 72.4% 15,953 16,505
60% 59.8% 13,674 13,624
50% 50.2% 11,395 11,440
40% 41.7% 9,116 9,495
30% 29.3% 6,837 6,669
20% 19.9% 4,558 4,530
10% 10.7% 2,279 2,432
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

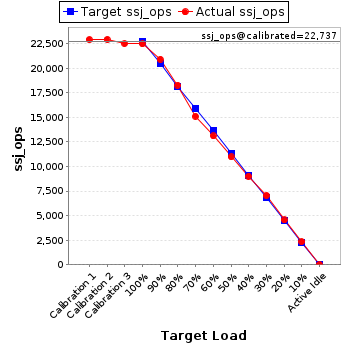

JVM 'node25.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,920
Calibration 2     22,952
Calibration 3     22,522
ssj_ops@calibrated=22,737
100% 98.8% 22,737 22,470
90% 92.1% 20,463 20,937
80% 80.5% 18,189 18,292
70% 66.5% 15,916 15,123
60% 57.6% 13,642 13,101
50% 48.3% 11,368 10,974
40% 39.7% 9,095 9,018
30% 31.0% 6,821 7,058
20% 20.0% 4,547 4,549
10% 10.3% 2,274 2,346
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
