XSLAB V-Raptor SQ ssj_ops@100% = 92,758
ssj_ops@100% per JVM = 23,189
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     91,563
Calibration 2     93,582
Calibration 3     93,247
ssj_ops@calibrated=93,414
100% 99.3% 93,414 92,758
90% 90.3% 84,073 84,356
80% 81.3% 74,731 75,908
70% 70.8% 65,390 66,105
60% 60.7% 56,049 56,658
50% 49.6% 46,707 46,317
40% 39.9% 37,366 37,258
30% 30.3% 28,024 28,349
20% 20.3% 18,683 19,000
10% 10.1% 9,341 9,391
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node26.001 23,137
node26.002 23,045
node26.003 23,468
node26.004 23,109
ssj_ops@100% 92,758
ssj_ops@100% per JVM 23,189

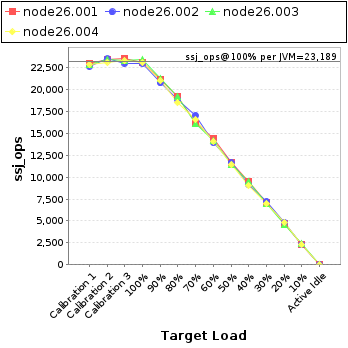

Graph of per-instance results

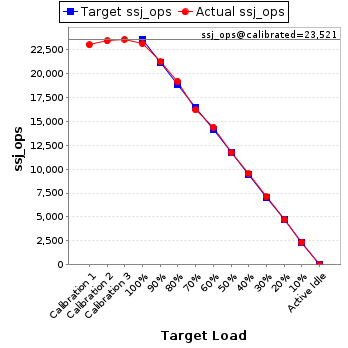

JVM 'node26.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,034
Calibration 2     23,442
Calibration 3     23,600
ssj_ops@calibrated=23,521
100% 98.4% 23,521 23,137
90% 90.2% 21,169 21,227
80% 81.7% 18,817 19,211
70% 68.9% 16,465 16,204
60% 61.3% 14,113 14,409
50% 49.8% 11,761 11,722
40% 40.5% 9,408 9,520
30% 30.1% 7,056 7,087
20% 20.1% 4,704 4,729
10% 10.0% 2,352 2,354
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

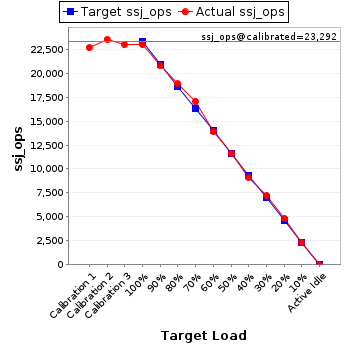

JVM 'node26.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,692
Calibration 2     23,557
Calibration 3     23,027
ssj_ops@calibrated=23,292
100% 98.9% 23,292 23,045
90% 89.2% 20,963 20,784
80% 81.2% 18,634 18,912
70% 73.4% 16,305 17,096
60% 60.0% 13,975 13,966
50% 50.1% 11,646 11,666
40% 39.2% 9,317 9,141
30% 31.2% 6,988 7,256
20% 20.8% 4,658 4,850
10% 9.9% 2,329 2,304
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

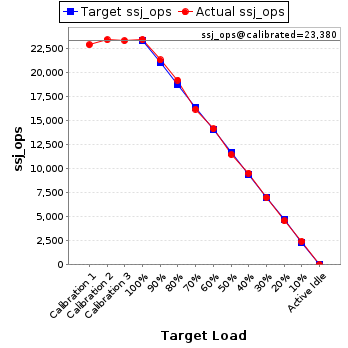

JVM 'node26.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,896
Calibration 2     23,430
Calibration 3     23,330
ssj_ops@calibrated=23,380
100% 100.4% 23,380 23,468
90% 91.1% 21,042 21,309
80% 82.2% 18,704 19,224
70% 69.3% 16,366 16,192
60% 60.5% 14,028 14,147
50% 49.1% 11,690 11,477
40% 40.8% 9,352 9,539
30% 29.9% 7,014 6,986
20% 19.6% 4,676 4,574
10% 10.5% 2,338 2,445
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

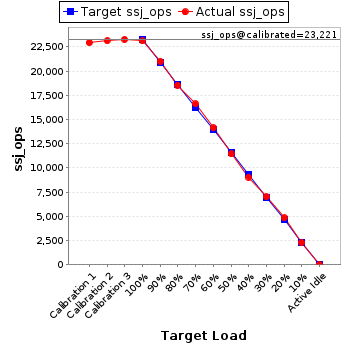

JVM 'node26.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,941
Calibration 2     23,153
Calibration 3     23,289
ssj_ops@calibrated=23,221
100% 99.5% 23,221 23,109
90% 90.6% 20,899 21,036
80% 79.9% 18,577 18,561
70% 71.5% 16,255 16,612
60% 60.9% 13,933 14,136
50% 49.3% 11,610 11,452
40% 39.0% 9,288 9,057
30% 30.2% 6,966 7,021
20% 20.9% 4,644 4,848
10% 9.9% 2,322 2,287
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
