XSLAB V-Raptor SQ ssj_ops@100% = 92,492
ssj_ops@100% per JVM = 23,123
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     90,894
Calibration 2     92,827
Calibration 3     92,794
ssj_ops@calibrated=92,810
100% 99.7% 92,810 92,492
90% 90.1% 83,529 83,642
80% 79.7% 74,248 74,009
70% 70.2% 64,967 65,115
60% 60.1% 55,686 55,749
50% 50.4% 46,405 46,781
40% 40.1% 37,124 37,222
30% 29.8% 27,843 27,668
20% 19.7% 18,562 18,280
10% 10.1% 9,281 9,376
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node29.001 23,333
node29.002 23,161
node29.003 23,167
node29.004 22,831
ssj_ops@100% 92,492
ssj_ops@100% per JVM 23,123

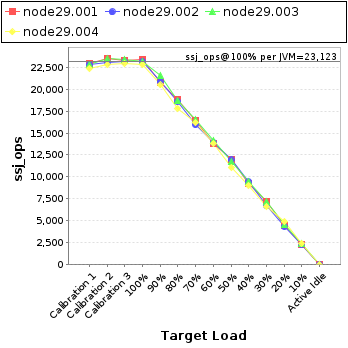

Graph of per-instance results
JVM 'node29.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,882
Calibration 2     23,522
Calibration 3     23,294
ssj_ops@calibrated=23,408
100% 99.7% 23,408 23,333
90% 88.7% 21,067 20,771
80% 80.2% 18,727 18,777
70% 70.0% 16,386 16,383
60% 59.1% 14,045 13,825
50% 51.3% 11,704 12,008
40% 39.5% 9,363 9,251
30% 30.5% 7,022 7,142
20% 19.2% 4,682 4,499
10% 9.6% 2,341 2,258
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node29.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,795
Calibration 2     23,023
Calibration 3     23,112
ssj_ops@calibrated=23,067
100% 100.4% 23,067 23,161
90% 90.4% 20,761 20,844
80% 80.8% 18,454 18,645
70% 69.2% 16,147 15,966
60% 60.3% 13,840 13,898
50% 51.7% 11,534 11,934
40% 40.8% 9,227 9,421
30% 29.1% 6,920 6,720
20% 18.9% 4,613 4,367
10% 9.7% 2,307 2,242
Active Idle   0 0

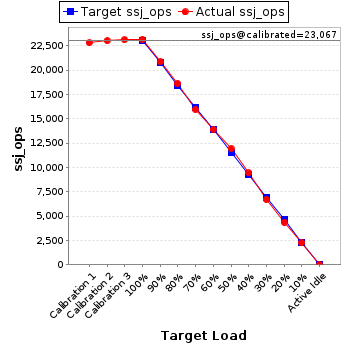

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node29.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,819
Calibration 2     23,448
Calibration 3     23,417
ssj_ops@calibrated=23,432
100% 98.9% 23,432 23,167
90% 92.0% 21,089 21,551
80% 80.0% 18,746 18,747
70% 70.7% 16,403 16,567
60% 60.5% 14,059 14,186
50% 50.1% 11,716 11,735
40% 40.5% 9,373 9,501
30% 30.7% 7,030 7,188
20% 19.3% 4,686 4,521
10% 10.4% 2,343 2,429
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node29.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,399
Calibration 2     22,834
Calibration 3     22,971
ssj_ops@calibrated=22,902
100% 99.7% 22,902 22,831
90% 89.4% 20,612 20,475
80% 77.9% 18,322 17,840
70% 70.7% 16,032 16,199
60% 60.4% 13,741 13,839
50% 48.5% 11,451 11,104
40% 39.5% 9,161 9,049
30% 28.9% 6,871 6,618
20% 21.4% 4,580 4,893
10% 10.7% 2,290 2,447
Active Idle   0 0

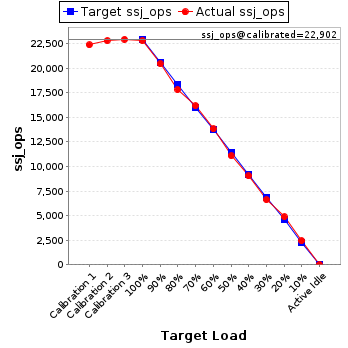

Graph of results
See the JVM Instance Performance Report for additional details.
