XSLAB V-Raptor SQ ssj_ops@100% = 92,449
ssj_ops@100% per JVM = 23,112
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,258
Calibration 2     93,710
Calibration 3     93,902
ssj_ops@calibrated=93,806
100% 98.6% 93,806 92,449
90% 89.4% 84,425 83,848
80% 80.2% 75,045 75,222
70% 69.6% 65,664 65,294
60% 61.1% 56,284 57,308
50% 49.9% 46,903 46,771
40% 39.6% 37,522 37,182
30% 30.1% 28,142 28,213
20% 20.2% 18,761 18,983
10% 10.4% 9,381 9,766
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node30.001 23,365
node30.002 23,003
node30.003 22,861
node30.004 23,221
ssj_ops@100% 92,449
ssj_ops@100% per JVM 23,112

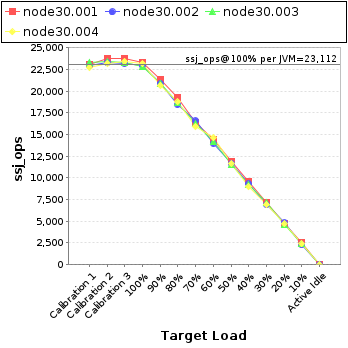

Graph of per-instance results
JVM 'node30.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,063
Calibration 2     23,783
Calibration 3     23,814
ssj_ops@calibrated=23,798
100% 98.2% 23,798 23,365
90% 89.6% 21,419 21,320
80% 80.9% 19,039 19,261
70% 68.9% 16,659 16,408
60% 60.7% 14,279 14,446
50% 49.9% 11,899 11,883
40% 40.4% 9,519 9,603
30% 30.0% 7,140 7,135
20% 20.1% 4,760 4,779
10% 11.0% 2,380 2,612
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node30.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,026
Calibration 2     23,280
Calibration 3     23,265
ssj_ops@calibrated=23,273
100% 98.8% 23,273 23,003
90% 89.8% 20,945 20,901
80% 79.5% 18,618 18,502
70% 71.3% 16,291 16,597
60% 60.3% 13,964 14,026
50% 50.1% 11,636 11,670
40% 40.0% 9,309 9,318
30% 29.9% 6,982 6,968
20% 20.8% 4,655 4,837
10% 9.9% 2,327 2,299
Active Idle   0 0

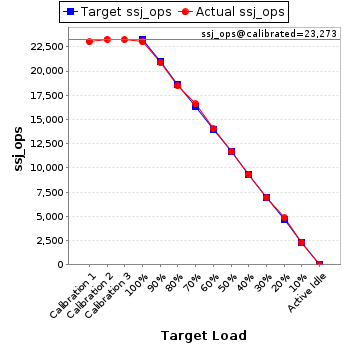

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node30.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,365
Calibration 2     23,383
Calibration 3     23,335
ssj_ops@calibrated=23,359
100% 97.9% 23,359 22,861
90% 89.6% 21,023 20,932
80% 80.0% 18,687 18,680
70% 69.9% 16,351 16,330
60% 60.8% 14,015 14,212
50% 49.4% 11,679 11,530
40% 39.7% 9,344 9,269
30% 30.7% 7,008 7,166
20% 19.9% 4,672 4,660
10% 10.5% 2,336 2,454
Active Idle   0 0

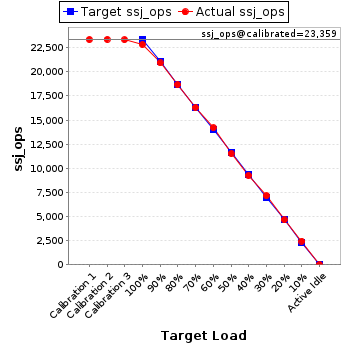

Graph of results
See the JVM Instance Performance Report for additional details.
JVM 'node30.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,804
Calibration 2     23,265
Calibration 3     23,488
ssj_ops@calibrated=23,376
100% 99.3% 23,376 23,221
90% 88.5% 21,039 20,695
80% 80.3% 18,701 18,779
70% 68.3% 16,363 15,960
60% 62.6% 14,026 14,624
50% 50.0% 11,688 11,688
40% 38.5% 9,350 8,993
30% 29.7% 7,013 6,944
20% 20.1% 4,675 4,707
10% 10.3% 2,338 2,400
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
