XSLAB V-Raptor SQ ssj_ops@100% = 94,028
ssj_ops@100% per JVM = 23,507
Test Sponsor: Telecommunications Technology Association SPEC License #: 83 Test Method: Multi Node
Tested By: Telecommunications Technology Association Test Location: TTA, Seongnam-city, Korea Test Date: Sep 16, 2021
Hardware Availability: Jul-2021 Software Availability: Sep-2018 Publication: Dec 9, 2021
System Source: Single Supplier System Designation: Server Power Provisioning: Line-powered
Benchmark Results Summary
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     92,510
Calibration 2     94,645
Calibration 3     94,581
ssj_ops@calibrated=94,613
100% 99.4% 94,613 94,028
90% 90.3% 85,152 85,423
80% 79.9% 75,691 75,585
70% 70.0% 66,229 66,266
60% 59.5% 56,768 56,253
50% 50.5% 47,307 47,749
40% 39.9% 37,845 37,709
30% 30.1% 28,384 28,445
20% 20.2% 18,923 19,096
10% 9.9% 9,461 9,393
Active Idle   0 0
Graph of results
System Under Test
Set: 'sut'
Set Identifier: sut
Set Description: V-Raptor SQ
# of Identical Nodes: 16
Comment: None
Hardware
Hardware Vendor: XSLAB
Model: V-Raptor SQ
Form Factor: 2U
CPU Name: ARM Cortex-A53(1GHz) 24 Cores: SOCIONEXT SC2A11 ARM SoC
CPU Characteristics: 24 Core, 1GHz
CPU Frequency (MHz): 1000
CPU(s) Enabled: 24 cores, 24 chips, 1 core/chip
Hardware Threads: 24 (1 / core)
CPU(s) Orderable: 24 chips
Primary Cache: 16 KB I + 16 KB D on chip per core
Secondary Cache: 256 KB I+D on chip per dual core
Tertiary Cache: 4 MB I+D on chip per chip
Other Cache: None
Memory Amount (GB): 16
# and size of DIMM: 1 x 16 GB
Memory Details: 1 x 16 GB DDR4 ECC SODIMM
Power Supply Quantity and Rating (W): None
Power Supply Details: N/A
Disk Drive: M.2 2280 SATA SSD 250GB
Disk Controller: ASM1062 Serial ATA Controller
# and type of Network Interface Cards (NICs) Installed: 1 x 1Gbps with 2ch IPSec Network Offload Engine
NICs Enabled in Firmware / OS / Connected: 1/1/1
Network Speed (Mbit): 10000
Keyboard: None
Mouse: None
Monitor: None
Optical Drives: No
Other Hardware: None
Software
Power Management: Enabled
Operating System (OS): Ubuntu 18.04.5 LTS (Bionic Beaver)
OS Version: Kernel 4.15.0-144-generic
Filesystem: ext4
JVM Vendor: Oracle Corporation
JVM Version: java version "11.0.11" 2021-04-20 LTS;Java(TM) SE Runtime Environment 18.9 (build 11.0.11+9-LTS-194);Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options: -Djava.awt.headless=true -Xms400m -Xmx400m -Djava.net.preferIPv4Stack=true
JVM Affinity: for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 10 }
JVM Instances: 4
JVM Initial Heap (MB): 400
JVM Maximum Heap (MB): 400
JVM Address Bits: 64
Boot Firmware Version: None
Management Firmware Version: V1.0.3
Workload Version: SSJ 1.2.10
Director Location: Controller
Other Software: None
Boot Firmware Settings
Management Firmware Settings
None
System Under Test Notes
Notes
None
JVM Instance Summary
JVM Instance ssj_ops@100%
node32.001 23,481
node32.002 23,287
node32.003 23,506
node32.004 23,754
ssj_ops@100% 94,028
ssj_ops@100% per JVM 23,507
Graph of per-instance results
JVM 'node32.001' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,265
Calibration 2     23,694
Calibration 3     23,802
ssj_ops@calibrated=23,748
100% 98.9% 23,748 23,481
90% 90.1% 21,373 21,408
80% 80.0% 18,998 19,006
70% 69.1% 16,624 16,416
60% 58.2% 14,249 13,814
50% 50.1% 11,874 11,899
40% 39.4% 9,499 9,357
30% 29.8% 7,124 7,076
20% 19.9% 4,750 4,734
10% 10.3% 2,375 2,449
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

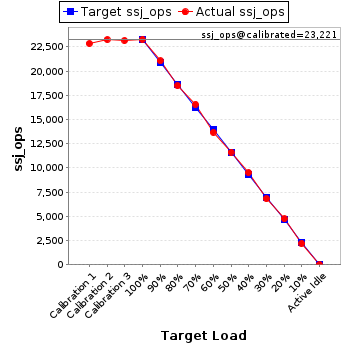

JVM 'node32.002' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     22,860
Calibration 2     23,269
Calibration 3     23,173
ssj_ops@calibrated=23,221
100% 100.3% 23,221 23,287
90% 90.8% 20,899 21,080
80% 79.7% 18,577 18,500
70% 71.4% 16,255 16,590
60% 58.9% 13,933 13,682
50% 50.1% 11,611 11,631
40% 41.0% 9,288 9,522
30% 29.4% 6,966 6,821
20% 20.5% 4,644 4,756
10% 9.5% 2,322 2,212
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

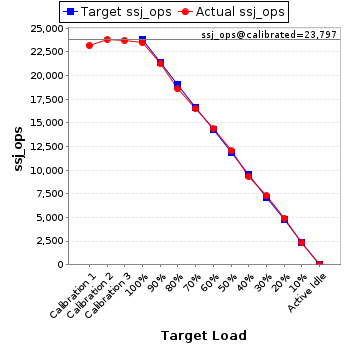

JVM 'node32.003' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,200
Calibration 2     23,849
Calibration 3     23,744
ssj_ops@calibrated=23,797
100% 98.8% 23,797 23,506
90% 89.5% 21,417 21,306
80% 78.1% 19,038 18,597
70% 69.6% 16,658 16,567
60% 60.5% 14,278 14,386
50% 50.6% 11,898 12,044
40% 39.4% 9,519 9,371
30% 30.8% 7,139 7,338
20% 20.7% 4,759 4,933
10% 9.7% 2,380 2,307
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.

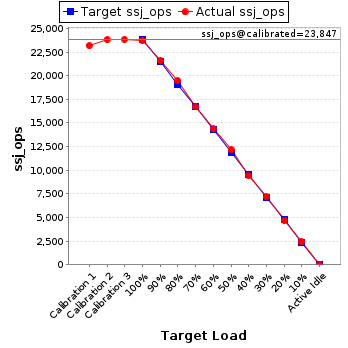

JVM 'node32.004' Scores:
Target Load Actual Load ssj_ops
Target Actual
Calibration 1     23,184
Calibration 2     23,833
Calibration 3     23,861
ssj_ops@calibrated=23,847
100% 99.6% 23,847 23,754
90% 90.7% 21,463 21,628
80% 81.7% 19,078 19,483
70% 70.0% 16,693 16,693
60% 60.3% 14,308 14,371
50% 51.1% 11,924 12,175
40% 39.7% 9,539 9,459
30% 30.2% 7,154 7,209
20% 19.6% 4,769 4,673
10% 10.2% 2,385 2,424
Active Idle   0 0
Graph of results
See the JVM Instance Performance Report for additional details.
