SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2022 Standard Performance Evaluation Corporation
| Fujitsu FUJITSU Server PRIMERGY RX1330 M5 | SPECpower_ssj2008 = 8,700 overall ssj_ops/watt | ||||
| Test Sponsor: | Fujitsu | SPEC License #: | 19 | Test Method: | Single Node |
| Tested By: | Fujitsu | Test Location: | Kawasaki, Kanagawa, Japan | Test Date: | Dec 11, 2021 |
| Hardware Availability: | Mar-2022 | Software Availability: | Oct-2020 | Publication: | Jan 19, 2022 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

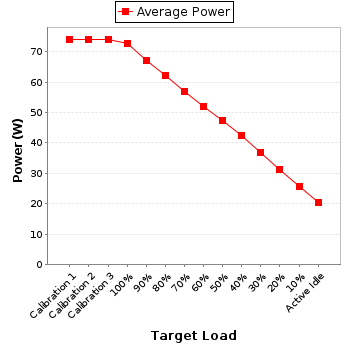

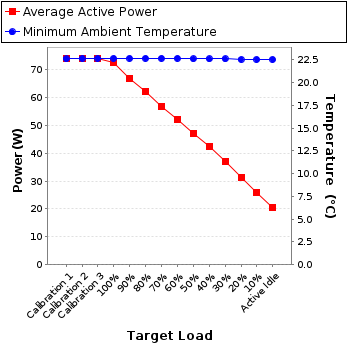

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 73.9 | 22.6 |
| Calibration 2 | 74.1 | 22.7 |
| Calibration 3 | 74.1 | 22.7 |
| 100% | 72.7 | 22.7 |
| 90% | 67.0 | 22.7 |
| 80% | 62.0 | 22.7 |
| 70% | 56.7 | 22.7 |
| 60% | 52.1 | 22.7 |
| 50% | 47.3 | 22.6 |
| 40% | 42.3 | 22.6 |
| 30% | 36.8 | 22.6 |
| 20% | 31.3 | 22.6 |
| 10% | 25.8 | 22.6 |
| Active Idle | 20.5 | 22.6 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Hioki |
| Model: | PW3336 |
| Serial Number: | 170213562 |
| Connectivity: | RS-232 |
| Input Connection: | Default |
| Metrology Institute: | NICT (National Institute of Information and Communications Technology) |
| Accredited by: | HIOKI E.E. CORPORATION |
| Calibration Label: | H06400088-2106 |
| Date of Calibration: | 14-Jun-2021 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.9.2-3976349f-20201208 |
| Setup Description: | Connected to PSU 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | Watchport Virtual Port 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 206 | 300.0 | 0.402 | 1.0 | 0.891 | 73.9 | 0.4% |
| Calibration 2 | 206 | 300.0 | 0.403 | 1.0 | 0.891 | 74.1 | 0.4% |
| Calibration 3 | 206 | 300.0 | 0.403 | 1.0 | 0.891 | 74.1 | 0.4% |
| 100% | 206 | 300.0 | 0.397 | 1.0 | 0.888 | 72.7 | 0.4% |
| 90% | 206 | 300.0 | 0.372 | 1.0 | 0.874 | 67.0 | 0.4% |
| 80% | 206 | 300.0 | 0.350 | 1.0 | 0.859 | 62.0 | 0.4% |
| 70% | 206 | 300.0 | 0.327 | 1.0 | 0.840 | 56.7 | 0.4% |
| 60% | 206 | 300.0 | 0.307 | 1.0 | 0.821 | 52.1 | 0.5% |
| 50% | 206 | 300.0 | 0.288 | 1.0 | 0.796 | 47.3 | 0.5% |
| 40% | 206 | 300.0 | 0.268 | 1.0 | 0.765 | 42.3 | 0.5% |
| 30% | 206 | 300.0 | 0.247 | 1.0 | 0.722 | 36.8 | 0.6% |
| 20% | 206 | 300.0 | 0.227 | 1.0 | 0.670 | 31.3 | 0.7% |
| 10% | 206 | 300.0 | 0.207 | 0.5 | 0.604 | 25.8 | 0.5% |
| Active Idle | 206 | 300.0 | 0.189 | 0.5 | 0.525 | 20.5 | 0.6% |
