SPECpower_ssj2008 Aggregate Performance Report

SPECpower_ssj2008

Aggregate Performance Report

Hewlett Packard Enterprise Synergy 480 Gen10 Plus Compute Module			ssj_ops@100% = 58,639,526 ssj_ops@100% per Host = 8,377,075 ssj_ops@100% per JVM = 104,713
Test Sponsor:	Hewlett Packard Enterprise	SPEC License #:	3	Test Method:	Multi Node
Tested By:	Hewlett Packard Enterprise	Test Location:	Houston, TX, USA	Test Date:	Jan 13, 2022
Hardware Availability:	Apr-2021	Software Availability:	Apr-2021	Publication:	Feb 16, 2022
System Source:	Single Supplier	System Designation:	Server	Power Provisioning:	Line-powered

Benchmark Results Summary

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			47,326,756
Calibration 2			58,806,798
Calibration 3			58,833,913
ssj_ops@calibrated=58,820,356
100%	99.7%	58,820,356	58,639,526
90%	90.0%	52,938,320	52,943,902
80%	80.0%	47,056,284	47,058,604
70%	70.0%	41,174,249	41,190,129
60%	60.0%	35,292,213	35,263,186
50%	49.9%	29,410,178	29,378,454
40%	40.0%	23,528,142	23,521,674
30%	30.0%	17,646,107	17,646,248
20%	20.0%	11,764,071	11,763,807
10%	10.0%	5,882,036	5,877,705
Active Idle		0	0

Aggregate SUT Data

# of Nodes	# of Chips	# of Cores	# of Threads	Total RAM (GB)	# of OS Images	# of JVM Instances
7	14	560	1,120	1,792	7	560

System Under Test

Shared Hardware

Shared Hardware
Enclosure:	HPE Synergy 12000 Frame
Form Factor:	10U
Power Supply Quantity and Rating (W):	6 x 2650
Power Supply Details:	HPE 2650W Performance Hot Plug Titanium Plus Power Supply Kit (798095-B21)
Network Switch:	1 x H3C S5820X-28S (JD373A)
Network Switch Details:	10 Gb Fibre 24 ports
KVM Switch:	None
KVM Switch Details:	N/A
Other Hardware:	1 x HPE Synergy 10/40Gb Pass Thru Module (799330-B21), 1 x Synergy Composer (804353-B21), 1 x Synergy Frame Link Module (804942-B21)
Comment:	Network switch not measured for power

Set: 'SUT'

Set Identifier:	SUT
Set Description:	System Under Test
# of Identical Nodes:	7
Comment:	SUT

Hardware per Node
Hardware Vendor:	Hewlett Packard Enterprise
Model:	Synergy 480 Gen10 Plus Compute Module
Form Factor:	Blade
CPU Name:	Intel Xeon Platinum 8380 CPU @ 2.30GHz
CPU Characteristics:	40-Core, 2.30 GHz, 60MB L3 Cache
CPU Frequency (MHz):	2300
CPU(s) Enabled:	80 cores, 2 chips, 40 cores/chip
Hardware Threads:	160 (2 / core)
CPU(s) Orderable:	1,2 chips
Primary Cache:	32 KB I + 48 KB D on chip per core
Secondary Cache:	1280 KB I+D on chip per core
Tertiary Cache:	60 MB I+D on chip per chip
Other Cache:	None
Memory Amount (GB):	256
# and size of DIMM:	16 x 16384 MB
Memory Details:	16 x 16GB 2Rx8 PC4-3200-T; slots 1, 3, 5, 7, 10, 12, 14 & 16 on each socket
Power Supply Quantity and Rating (W):	None
Power Supply Details:	Shared
Disk Drive:	HPE 240GB SATA 6G Read Intensive SFF (P18420-B21)
Disk Controller:	Embedded SATA Controller
# and type of Network Interface Cards (NICs) Installed:	1 x HPE Synergy 4820C 10/20/25Gb CNA
NICs Enabled in Firmware / OS / Connected:	2/1/1
Network Speed (Mbit):	10000
Keyboard:	None
Mouse:	None
Monitor:	None
Optical Drives:	No
Other Hardware:	None

Software per Node
Power Management:	Enabled (see SUT Notes)
Operating System (OS):	SUSE Linux Enterprise Server 15 SP2
OS Version:	5.3.18-22-default
Filesystem:	xfs
JVM Vendor:	Oracle Corporation
JVM Version:	Oracle Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.11+9-LTS-194, mixed mode)
JVM Command-line Options:	-server -Xmn1700m -Xms1950m -Xmx1950m -XX:SurvivorRatio=1 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes
JVM Affinity:	for each physicalCore { numactl -C physicalCoreId, physicalCoreId + 80 }
JVM Instances:	80
JVM Initial Heap (MB):	1950
JVM Maximum Heap (MB):	1950
JVM Address Bits:	64
Boot Firmware Version:	I44 v1.40 (03/05/2021)
Management Firmware Version:	2.40 pass 31 Jan 05 2021
Workload Version:	SSJ 1.2.10
Director Location:	Controller
Other Software:	None

Boot Firmware Settings

BIOS Platform Configuration (RBSU):

USB Support: All USB Ports Disabled
Internal SD Card Slot: Disabled
Memory Patrol Scrubbing: Disabled
Memory Bus Frequency: 2400 MHz
Intel Virtualization (Intel VT): Disabled
Access Control Service: Disabled
Power Regulator: OS Control
Intel Turbo Boost Technology: Disabled
Energy Performance Bias: Balanced Power
Intel DMI Link Frequency: Gen 1 Speed
NUMA Group Size Optimization: Clustered
Sub-NUMA Clustering: Enabled SNC2 (2-clusters)
HW Prefetcher: Disabled
Adjacent Sector Prefetch: Disabled
DCU Stream Prefetcher: Disabled
XPT Prefetcher: Disabled
Intel UPI Link Enablement: Single Link Operation
Intel UPI Link Frequency: Min UPI Speed
Processor PMAX Power Adjustment: 20
Maximum PCI Express Speed: PCIe Generation 1.0
Synergy 4820C PCIe Link Speed: PCIe Generation 1.0
Synergy 4820C PCIe Power Management: L1 Enabled

Management Firmware Settings

See SUT Notes

System Under Test Notes

Benchmark started via ssh
SPECpower_ssj.props input.load_level.number_warehouses set to 160 due to a known inconsistency in processor reporting with this Java version
Kernel Parameter: intel_pstate=passive
OS tunes:

modprobe cpufreq_conservative
cpupower frequency-set -g conservative
echo 3000000 > /sys/devices/system/cpu/cpufreq/conservative/sampling_rate
echo 94 > /sys/devices/system/cpu/cpufreq/conservative/up_threshold
echo 1 > /sys/devices/system/cpu/cpufreq/conservative/freq_step
echo 93 > /sys/devices/system/cpu/cpufreq/conservative/down_threshold
echo 960000 > /proc/sys/kernel/sched_rt_runtime_us
echo 16000000 > /proc/sys/kernel/sched_latency_ns
echo 9000000 > /proc/sys/kernel/sched_min_granularity_ns
echo 100000 > /proc/sys/vm/nr_hugepages

Applied protection against speculative execution

Yes: The test sponsor attests, as of date of publication, that CVE-2017-5754 (Meltdown) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5753 (Spectre variant 1) is mitigated in the system as tested and documented.
Yes: The test sponsor attests, as of date of publication, that CVE-2017-5715 (Spectre variant 2) is mitigated in the system as tested and documented.

Notes

None

Host Instance Summary

Host	ssj_ops@100%
sy480-01	8,359,084
sy480-02	8,352,665
sy480-03	8,351,815
sy480-04	8,411,724
sy480-05	8,401,587
sy480-06	8,403,759
sy480-07	8,358,891
ssj_ops@100%	58,639,526
ssj_ops@100% per Host	8,377,075
ssj_ops@100% per JVM	104,713

Host 'sy480-01' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,755,124
Calibration 2			8,390,866
Calibration 3			8,394,302
ssj_ops@calibrated=8,392,584
100%	99.6%	8,392,584	8,359,084
90%	89.9%	7,553,326	7,548,951
80%	79.9%	6,714,067	6,709,339
70%	70.1%	5,874,809	5,883,684
60%	59.9%	5,035,551	5,026,474
50%	50.0%	4,196,292	4,198,775
40%	40.0%	3,357,034	3,357,191
30%	30.0%	2,517,775	2,520,229
20%	20.0%	1,678,517	1,678,684
10%	10.0%	839,258	836,455
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-02' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,740,924
Calibration 2			8,381,613
Calibration 3			8,381,830
ssj_ops@calibrated=8,381,722
100%	99.7%	8,381,722	8,352,665
90%	90.0%	7,543,549	7,540,247
80%	80.0%	6,705,377	6,705,000
70%	70.0%	5,867,205	5,866,173
60%	60.0%	5,029,033	5,025,746
50%	49.8%	4,190,861	4,177,773
40%	40.1%	3,352,689	3,357,229
30%	30.0%	2,514,516	2,514,325
20%	20.0%	1,676,344	1,674,158
10%	10.0%	838,172	837,320
Active Idle		0	0

See the Host Performance Report for additional details.

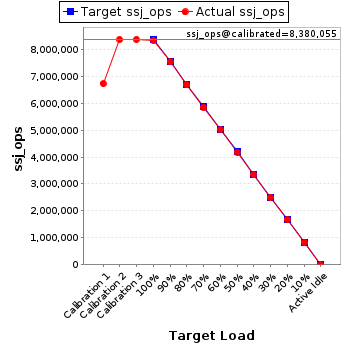

Host 'sy480-03' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,735,246
Calibration 2			8,378,059
Calibration 3			8,382,051
ssj_ops@calibrated=8,380,055
100%	99.7%	8,380,055	8,351,815
90%	90.0%	7,542,049	7,540,786
80%	79.9%	6,704,044	6,698,830
70%	69.9%	5,866,038	5,861,289
60%	59.9%	5,028,033	5,022,173
50%	49.9%	4,190,027	4,184,900
40%	39.9%	3,352,022	3,341,645
30%	30.0%	2,514,016	2,511,182
20%	20.0%	1,676,011	1,675,268
10%	10.0%	838,005	837,273
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-04' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,775,126
Calibration 2			8,431,427
Calibration 3			8,436,085
ssj_ops@calibrated=8,433,756
100%	99.7%	8,433,756	8,411,724
90%	90.1%	7,590,381	7,601,459
80%	80.1%	6,747,005	6,751,768
70%	70.1%	5,903,629	5,911,417
60%	60.0%	5,060,254	5,061,219
50%	49.9%	4,216,878	4,208,824
40%	40.0%	3,373,503	3,371,967
30%	30.0%	2,530,127	2,532,253
20%	20.0%	1,686,751	1,684,836
10%	10.0%	843,376	839,760
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-05' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,801,077
Calibration 2			8,423,826
Calibration 3			8,429,045
ssj_ops@calibrated=8,426,435
100%	99.7%	8,426,435	8,401,587
90%	90.0%	7,583,792	7,586,900
80%	80.0%	6,741,148	6,741,882
70%	70.0%	5,898,505	5,900,069
60%	59.9%	5,055,861	5,044,912
50%	49.9%	4,213,218	4,207,143
40%	40.0%	3,370,574	3,367,846
30%	30.0%	2,527,931	2,528,494
20%	20.0%	1,685,287	1,684,701
10%	10.0%	842,644	844,150
Active Idle		0	0

See the Host Performance Report for additional details.

Host 'sy480-06' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,776,913
Calibration 2			8,421,099
Calibration 3			8,426,212
ssj_ops@calibrated=8,423,656
100%	99.8%	8,423,656	8,403,759
90%	90.0%	7,581,290	7,581,813
80%	80.0%	6,738,924	6,741,172
70%	70.1%	5,896,559	5,900,858
60%	59.9%	5,054,193	5,049,871
50%	50.0%	4,211,828	4,211,991
40%	40.1%	3,369,462	3,375,094
30%	30.0%	2,527,097	2,528,971
20%	20.0%	1,684,731	1,687,648
10%	10.0%	842,366	843,371
Active Idle		0	0

See the Host Performance Report for additional details.

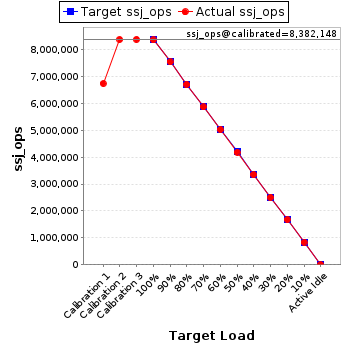

Host 'sy480-07' Scores:

Target Load	Actual Load	ssj_ops
Target Load	Actual Load	Target	Actual
Calibration 1			6,742,346
Calibration 2			8,379,908
Calibration 3			8,384,388
ssj_ops@calibrated=8,382,148
100%	99.7%	8,382,148	8,358,891
90%	90.0%	7,543,933	7,543,746
80%	80.1%	6,705,718	6,710,613
70%	70.0%	5,867,503	5,866,640
60%	60.0%	5,029,289	5,032,790
50%	50.0%	4,191,074	4,189,048
40%	40.0%	3,352,859	3,350,703
30%	30.0%	2,514,644	2,510,794
20%	20.0%	1,676,430	1,678,512
10%	10.0%	838,215	839,374
Active Idle		0	0

See the Host Performance Report for additional details.
