SPECpower_ssj2008
Aggregate Performance Report
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Dell Inc. PowerEdge XR8620T (Intel Xeon Gold 6421N, 1.80 GHz) | ssj_ops@100% = 6,654,194 ssj_ops@100% per Host = 3,327,097 ssj_ops@100% per JVM = 103,972 |
||||
| Test Sponsor: | Dell Inc. | SPEC License #: | 6573 | Test Method: | Multi Node |
| Tested By: | Dell Inc. | Test Location: | Round Rock, TX, USA | Test Date: | Apr 3, 2023 |
| Hardware Availability: | May-2023 | Software Availability: | Aug-2022 | Publication: | May 11, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 6,625,757 | ||
| Calibration 2 | 6,667,903 | ||
| Calibration 3 | 6,680,637 | ||
| ssj_ops@calibrated=6,674,270 | |||
| 100% | 99.7% | 6,674,270 | 6,654,194 |
| 90% | 90.0% | 6,006,843 | 6,007,190 |
| 80% | 80.0% | 5,339,416 | 5,338,871 |
| 70% | 69.9% | 4,671,989 | 4,668,257 |
| 60% | 60.0% | 4,004,562 | 4,006,145 |
| 50% | 50.1% | 3,337,135 | 3,342,583 |
| 40% | 40.1% | 2,669,708 | 2,674,025 |
| 30% | 30.0% | 2,002,281 | 1,999,161 |
| 20% | 20.0% | 1,334,854 | 1,336,458 |
| 10% | 10.0% | 667,427 | 668,160 |
| Active Idle | 0 | 0 | |
| # of Nodes | # of Chips | # of Cores | # of Threads | Total RAM (GB) | # of OS Images | # of JVM Instances |
|---|---|---|---|---|---|---|
| 2 | 2 | 64 | 128 | 256 | 2 | 64 |
| Set Identifier: | sut |
| Set Description: | System Under Test |
| # of Identical Nodes: | 2 |
| Comment: | PowerEdge XR8620t |
| Hardware per Node | |
|---|---|
| Hardware Vendor: | Dell Inc. |
| Model: | PowerEdge XR8620T (Intel Xeon Gold 6421N, 1.80 GHz) |
| Form Factor: | 2U |
| CPU Name: | Intel Xeon Gold 6421N |
| CPU Characteristics: | 32-Core, 1.80GHz, 60MB L3 Cache |
| CPU Frequency (MHz): | 1800 |
| CPU(s) Enabled: | 32 cores, 1 chip, 32 cores/chip |
| Hardware Threads: | 64 (2 / core) |
| CPU(s) Orderable: | 1 chips |
| Primary Cache: | 32 KB I + 48 KB D on chip per core |
| Secondary Cache: | 2 MB I+D on chip per core |
| Tertiary Cache: | 60 MB I+D on chip per chip |
| Other Cache: | None |
| Memory Amount (GB): | 128 |
| # and size of DIMM: | 8 x 16 GB |
| Memory Details: | 16GB 1Rx8 PC5-4800B-UA0. Slots A1-8 populated. |
| Power Supply Quantity and Rating (W): | 2 x 1400 |
| Power Supply Details: | 1400W, Dell p/n K3RY3 |
| Disk Drive: | 1 x 480 GB SATA M.2 stick, Dell p/n 08M01 |
| Disk Controller: | BOSS controller card, Dell p/n DHFTR |
| # and type of Network Interface Cards (NICs) Installed: | Onboard 1 x Dual Port Intel E810 |
| NICs Enabled in Firmware / OS / Connected: | 1/1/1 |
| Network Speed (Mbit): | 10000 |
| Keyboard: | None |
| Mouse: | None |
| Monitor: | None |
| Optical Drives: | No |
| Other Hardware: | None |
| Software per Node | |
|---|---|
| Power Management: | Power saver power plan enabled in OS |
| Operating System (OS): | Microsoft Windows Server 2022 Standard 21H2 |
| OS Version: | 20348.1487 |
| Filesystem: | NTFS |
| JVM Vendor: | Oracle Corporation |
| JVM Version: | Java HotSpot(TM) 64-Bit Server VM 18.9 (build 11.0.17+10-LTS-269, mixed mode) |
| JVM Command-line Options: | -server -Xms3328m -Xmx3584m -Xmn3584m -XX:SurvivorRatio=8 -XX:TargetSurvivorRatio=99 -XX:ParallelGCThreads=2 -XX:AllocatePrefetchDistance=256 -XX:AllocatePrefetchLines=4 -XX:LoopUnrollLimit=45 -XX:InitialTenuringThreshold=12 -XX:MaxTenuringThreshold=15 -XX:InlineSmallCode=3900 -XX:MaxInlineSize=270 -XX:FreqInlineSize=2500 -XX:+UseLargePages -XX:+UseParallelOldGC -XX:UseAVX=0 -XX:-UseAdaptiveSizePolicy -XX:-ThreadLocalHandshakes |
| JVM Affinity: | start /NODE [0,1] /AFFINITY [0x3,0xC,0x30,0xC0,0x300,0xC00,0x3000,0xC000,0x30000,0xC0000,0x300000,0xC00000,0x3000000,0xC000000,0x30000000,0xC0000000] |
| JVM Instances: | 32 |
| JVM Initial Heap (MB): | 3584 |
| JVM Maximum Heap (MB): | 3584 |
| JVM Address Bits: | 64 |
| Boot Firmware Version: | 1.0.0 |
| Management Firmware Version: | 6.10.43.00 (Build A00) |
| Workload Version: | SSJ 1.2.10 |
| Director Location: | Controller |
| Other Software: | N/A |
| Host | ssj_ops@100% |
|---|---|
| XR8600T-node2 | 3,325,131 |
| XR8620T-node1 | 3,329,063 |
| ssj_ops@100% | 6,654,194 |
| ssj_ops@100% per Host | 3,327,097 |
| ssj_ops@100% per JVM | 103,972 |
| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,307,436 | ||
| Calibration 2 | 3,332,756 | ||
| Calibration 3 | 3,337,959 | ||
| ssj_ops@calibrated=3,335,358 | |||
| 100% | 99.7% | 3,335,358 | 3,325,131 |
| 90% | 89.9% | 3,001,822 | 2,999,825 |
| 80% | 79.9% | 2,668,286 | 2,665,707 |
| 70% | 70.0% | 2,334,751 | 2,333,662 |
| 60% | 60.0% | 2,001,215 | 2,002,288 |
| 50% | 50.1% | 1,667,679 | 1,671,479 |
| 40% | 40.1% | 1,334,143 | 1,338,156 |
| 30% | 30.0% | 1,000,607 | 1,001,874 |
| 20% | 20.1% | 667,072 | 669,166 |
| 10% | 10.0% | 333,536 | 334,190 |
| Active Idle | 0 | 0 | |

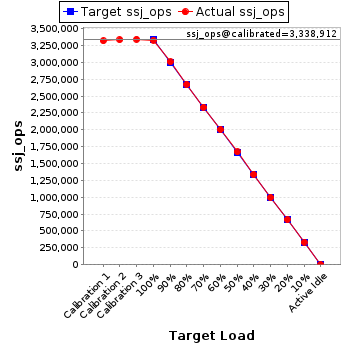

| Target Load | Actual Load | ssj_ops | |
|---|---|---|---|
| Target | Actual | ||
| Calibration 1 | 3,318,322 | ||
| Calibration 2 | 3,335,147 | ||
| Calibration 3 | 3,342,677 | ||
| ssj_ops@calibrated=3,338,912 | |||
| 100% | 99.7% | 3,338,912 | 3,329,063 |
| 90% | 90.1% | 3,005,021 | 3,007,364 |
| 80% | 80.1% | 2,671,130 | 2,673,164 |
| 70% | 69.9% | 2,337,238 | 2,334,595 |
| 60% | 60.0% | 2,003,347 | 2,003,856 |
| 50% | 50.0% | 1,669,456 | 1,671,103 |
| 40% | 40.0% | 1,335,565 | 1,335,869 |
| 30% | 29.9% | 1,001,674 | 997,287 |
| 20% | 20.0% | 667,782 | 667,292 |
| 10% | 10.0% | 333,891 | 333,970 |
| Active Idle | 0 | 0 | |
