SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2023 Standard Performance Evaluation Corporation
| Supermicro Server AS-2125HS-TNR | SPECpower_ssj2008 = 29,572 overall ssj_ops/watt | ||||
| Test Sponsor: | Supermicro | SPEC License #: | 1176 | Test Method: | Single Node |
| Tested By: | Supermicro | Test Location: | Zhonghe Dist, New Taipei City, Taiwan (R.O.C.) | Test Date: | Jun 11, 2023 |
| Hardware Availability: | Jan-2023 | Software Availability: | May-2023 | Publication: | Jul 6, 2023 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

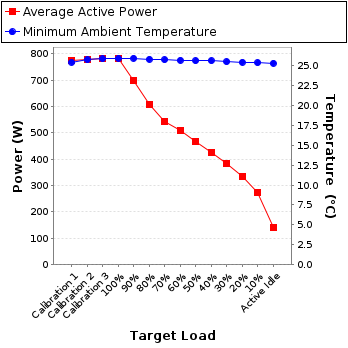

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 773 | 25.4 |
| Calibration 2 | 777 | 25.8 |
| Calibration 3 | 781 | 25.9 |
| 100% | 783 | 25.9 |
| 90% | 699 | 25.9 |
| 80% | 606 | 25.8 |
| 70% | 544 | 25.8 |
| 60% | 507 | 25.7 |
| 50% | 467 | 25.6 |
| 40% | 426 | 25.6 |
| 30% | 384 | 25.5 |
| 20% | 336 | 25.4 |
| 10% | 273 | 25.4 |
| Active Idle | 141 | 25.3 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa Meters and Instruments Corporation. |
| Model: | WT310 |
| Serial Number: | C3RF27027E |
| Connectivity: | GPIB |
| Input Connection: | Default |
| Metrology Institute: | NML (National Measurement Laboratory) |
| Accredited by: | Omnio Calibration Lab. Co., Ltd. |
| Calibration Label: | OCL-230203F01008 |
| Date of Calibration: | 03-Feb-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.10.0-82175bac-20220817 |
| Setup Description: | SUT Power Supply |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.10.26.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 10 mm in front of SUT main air intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 220 | 300.0 | 3.72 | 5.0 | 0.942 | 773 | 0.4% |
| Calibration 2 | 221 | 300.0 | 3.74 | 5.0 | 0.942 | 777 | 0.4% |
| Calibration 3 | 220 | 300.0 | 3.76 | 5.0 | 0.941 | 781 | 0.4% |
| 100% | 220 | 300.0 | 3.77 | 5.0 | 0.943 | 783 | 0.4% |
| 90% | 221 | 300.0 | 3.40 | 5.0 | 0.931 | 699 | 0.4% |
| 80% | 221 | 300.0 | 3.00 | 5.0 | 0.913 | 606 | 0.4% |
| 70% | 223 | 300.0 | 2.72 | 5.0 | 0.897 | 544 | 0.5% |
| 60% | 224 | 300.0 | 2.56 | 5.0 | 0.884 | 507 | 0.5% |
| 50% | 225 | 300.0 | 2.39 | 5.0 | 0.868 | 467 | 0.5% |
| 40% | 225 | 300.0 | 2.23 | 5.0 | 0.849 | 426 | 0.5% |
| 30% | 225 | 300.0 | 2.07 | 5.0 | 0.825 | 384 | 0.6% |
| 20% | 226 | 300.0 | 1.90 | 2.0 | 0.784 | 336 | 0.4% |
| 10% | 226 | 300.0 | 1.67 | 2.0 | 0.721 | 273 | 0.5% |
| Active Idle | 226 | 300.0 | 1.30 | 2.0 | 0.477 | 141 | 0.7% |
