SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2024 Standard Performance Evaluation Corporation
| Supermicro SuperServer ARS-221GL-NR | SPECpower_ssj2008 = 13,218 overall ssj_ops/watt | ||||
| Test Sponsor: | Infobell IT Solutions Pvt. Ltd. | SPEC License #: | 6723 | Test Method: | Single Node |
| Tested By: | Infobell IT Solutions Pvt. Ltd. | Test Location: | San Jose, CA, USA | Test Date: | May 3, 2024 |
| Hardware Availability: | May-2024 | Software Availability: | Feb-2024 | Publication: | Jul 10, 2024 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

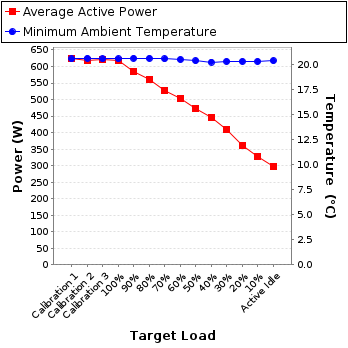

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 625 | 20.6 |
| Calibration 2 | 619 | 20.6 |
| Calibration 3 | 620 | 20.6 |
| 100% | 619 | 20.6 |
| 90% | 586 | 20.6 |
| 80% | 560 | 20.6 |
| 70% | 527 | 20.6 |
| 60% | 503 | 20.5 |
| 50% | 473 | 20.4 |
| 40% | 445 | 20.2 |
| 30% | 410 | 20.3 |
| 20% | 361 | 20.3 |
| 10% | 327 | 20.3 |
| Active Idle | 298 | 20.4 |

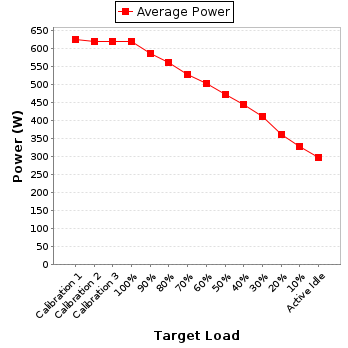

| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | YOKOGAWA, Inc. |
| Model: | WT310E |
| Serial Number: | C2XM03068V |
| Connectivity: | USB2 |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TESCOM |
| Calibration Label: | T114528 |
| Date of Calibration: | 12-May-2023 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.0-a4047d62-20231205 |
| Setup Description: | Connected to all PSUs |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | iButtonLink, Inc. |
| Model: | LinkUSBi + T-Probe |
| Driver Version: | FTDI USB Serial Device 1.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 50 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 3.18 | 5.0 | 0.946 | 625 | 0.3% |
| Calibration 2 | 208 | 300.0 | 3.15 | 5.0 | 0.945 | 619 | 0.3% |
| Calibration 3 | 208 | 300.0 | 3.15 | 5.0 | 0.945 | 620 | 0.3% |
| 100% | 208 | 300.0 | 3.15 | 5.0 | 0.945 | 619 | 0.3% |
| 90% | 208 | 300.0 | 3.00 | 5.0 | 0.939 | 586 | 0.3% |
| 80% | 208 | 300.0 | 2.88 | 5.0 | 0.935 | 560 | 0.3% |
| 70% | 208 | 300.0 | 2.73 | 5.0 | 0.929 | 527 | 0.3% |
| 60% | 208 | 300.0 | 2.61 | 5.0 | 0.924 | 503 | 0.3% |
| 50% | 208 | 300.0 | 2.48 | 5.0 | 0.917 | 473 | 0.3% |
| 40% | 208 | 300.0 | 2.35 | 5.0 | 0.908 | 445 | 0.4% |
| 30% | 208 | 300.0 | 2.20 | 5.0 | 0.895 | 410 | 0.4% |
| 20% | 208 | 300.0 | 1.98 | 5.0 | 0.875 | 361 | 0.4% |
| 10% | 208 | 300.0 | 1.83 | 2.0 | 0.857 | 327 | 0.3% |
| Active Idle | 208 | 300.0 | 1.71 | 2.0 | 0.838 | 298 | 0.3% |
