SPECpower_ssj2008
Power/Temperature Details
Copyright © 2007-2025 Standard Performance Evaluation Corporation
| Hewlett Packard Enterprise ProLiant Compute DL320 Gen12 | SPECpower_ssj2008 = 17,517 overall ssj_ops/watt | ||||
| Test Sponsor: | Hewlett Packard Enterprise | SPEC License #: | 3 | Test Method: | Single Node |
| Tested By: | Hewlett Packard Enterprise | Test Location: | Houston, TX, USA | Test Date: | Feb 6, 2025 |
| Hardware Availability: | Mar-2025 | Software Availability: | Oct-2024 | Publication: | Feb 25, 2025 |
| System Source: | Single Supplier | System Designation: | Server | Power Provisioning: | Line-powered |

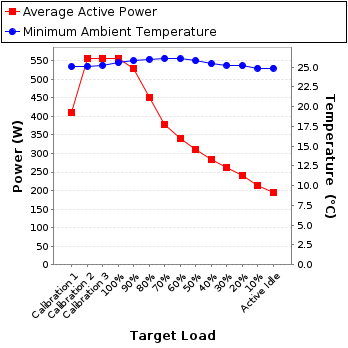

| Target Load | Average Active Power (W) | Minimum Ambient Temperature (°C) |
|---|---|---|
| Calibration 1 | 410 | 25.1 |
| Calibration 2 | 556 | 25.1 |
| Calibration 3 | 557 | 25.2 |
| 100% | 557 | 25.6 |
| 90% | 529 | 25.8 |
| 80% | 452 | 26.0 |
| 70% | 377 | 26.1 |
| 60% | 340 | 26.1 |
| 50% | 311 | 25.8 |
| 40% | 283 | 25.4 |
| 30% | 261 | 25.2 |
| 20% | 240 | 25.2 |
| 10% | 215 | 24.9 |
| Active Idle | 195 | 24.9 |
| Power Analyzer pwr1 | |
|---|---|
| Hardware Vendor: | Yokogawa |
| Model: | WT210 |
| Serial Number: | 91GC21887 |
| Connectivity: | GPIB vi NI GPIB-USB-HS |
| Input Connection: | Default |
| Metrology Institute: | NIST |
| Accredited by: | TRANSCAT |
| Calibration Label: | 5-H48PA-60-1 |
| Date of Calibration: | 01-Aug-2024 |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| PTDaemon Version: | 1.11.1-462c978e-20240907 |
| Setup Description: | SUT Power Supply 1 |
| Temperature Sensor temp1 | |
|---|---|
| Hardware Vendor: | Digi International Inc. |
| Model: | Watchport/H |
| Driver Version: | 5.70.105.0 |
| Connectivity: | USB |
| PTDaemon Host System: | same as CCS |
| PTDaemon Host OS: | same as CCS |
| Setup Description: | 5 mm in front of SUT main intake |
| Target Load | Voltage (V) | Current (A) | Avg Power Factor | Avg Active Power (W) | Power Measurement Uncertainty (%) | ||
|---|---|---|---|---|---|---|---|
| Avg | Range | Avg | Range | ||||
| Calibration 1 | 208 | 300.0 | 2.16 | 5.0 | 0.929 | 410 | 0.5% |
| Calibration 2 | 207 | 300.0 | 2.78 | 5.0 | 0.964 | 556 | 0.4% |
| Calibration 3 | 207 | 300.0 | 2.78 | 5.0 | 0.965 | 557 | 0.4% |
| 100% | 207 | 300.0 | 2.78 | 5.0 | 0.965 | 557 | 0.4% |
| 90% | 207 | 300.0 | 2.65 | 5.0 | 0.961 | 529 | 0.4% |
| 80% | 207 | 300.0 | 2.30 | 5.0 | 0.948 | 452 | 0.5% |
| 70% | 208 | 300.0 | 1.95 | 5.0 | 0.930 | 377 | 0.6% |
| 60% | 208 | 300.0 | 1.79 | 5.0 | 0.916 | 340 | 0.6% |
| 50% | 208 | 300.0 | 1.66 | 5.0 | 0.902 | 311 | 0.6% |
| 40% | 208 | 300.0 | 1.54 | 5.0 | 0.883 | 283 | 0.7% |
| 30% | 208 | 300.0 | 1.45 | 2.0 | 0.867 | 261 | 0.4% |
| 20% | 208 | 300.0 | 1.36 | 2.0 | 0.848 | 240 | 0.4% |
| 10% | 208 | 300.0 | 1.25 | 2.0 | 0.823 | 215 | 0.5% |
| Active Idle | 208 | 300.0 | 1.18 | 2.0 | 0.795 | 195 | 0.5% |
